S/V Anapa is a Phuket, Thailand based 1989 Simpson 48 Catamaran For Sale By Owner. This catamaran owner requires financial settlement only. No trades.
Anapa is a Simpson 48 built in 1989 out of epoxy/glass and red cedar strip planking at DUBOIS in Netherland for a German Owner.

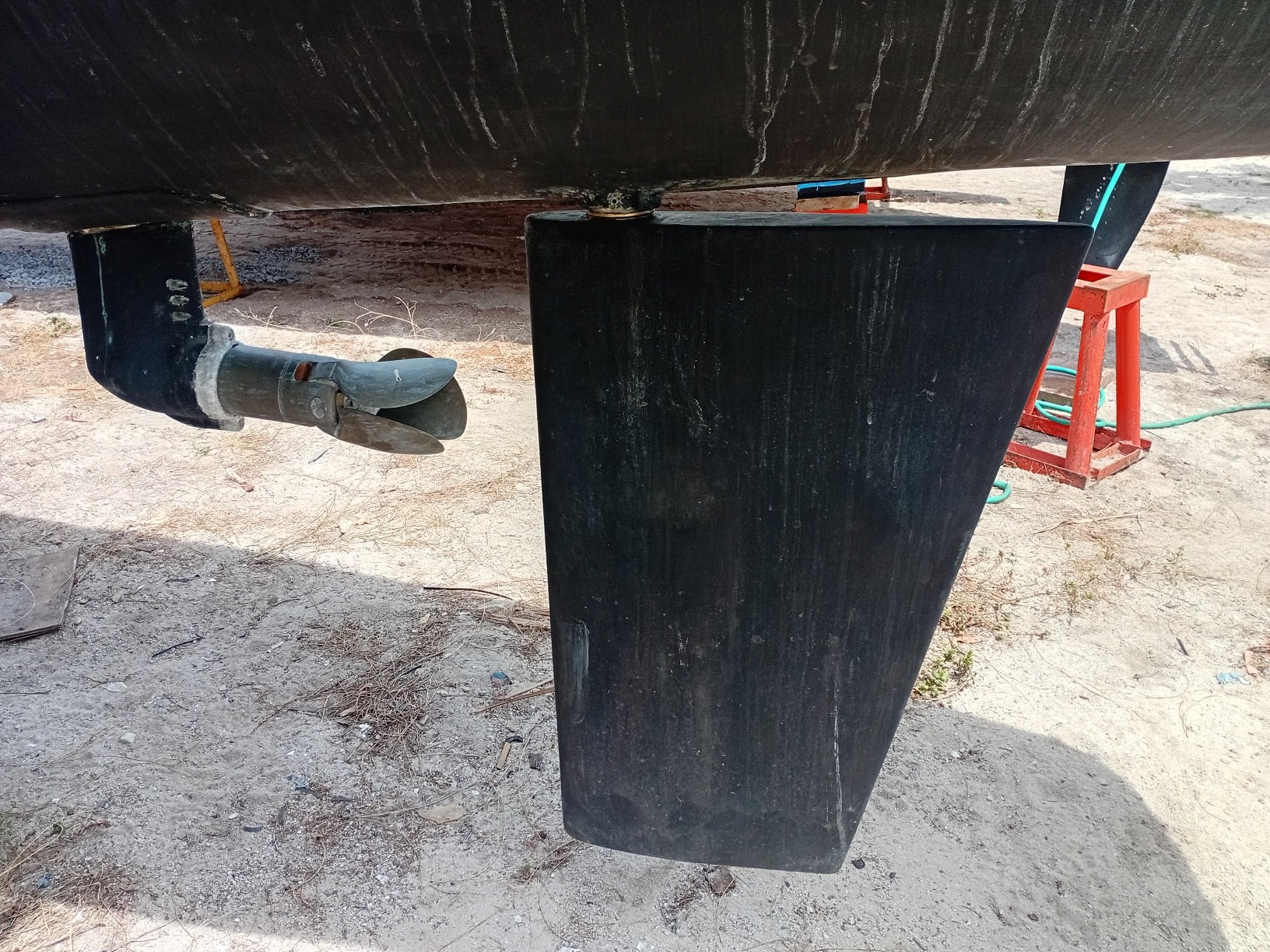

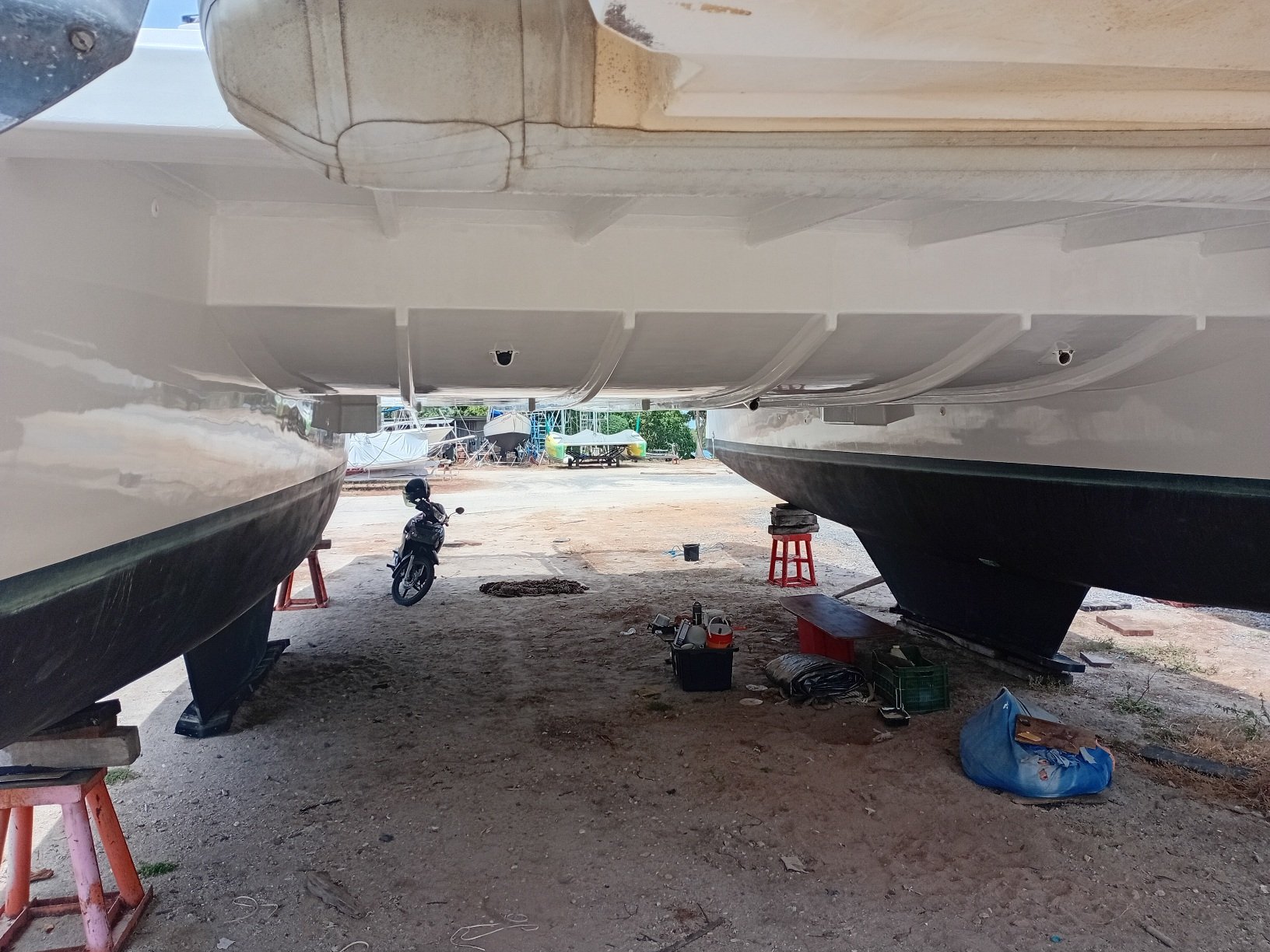

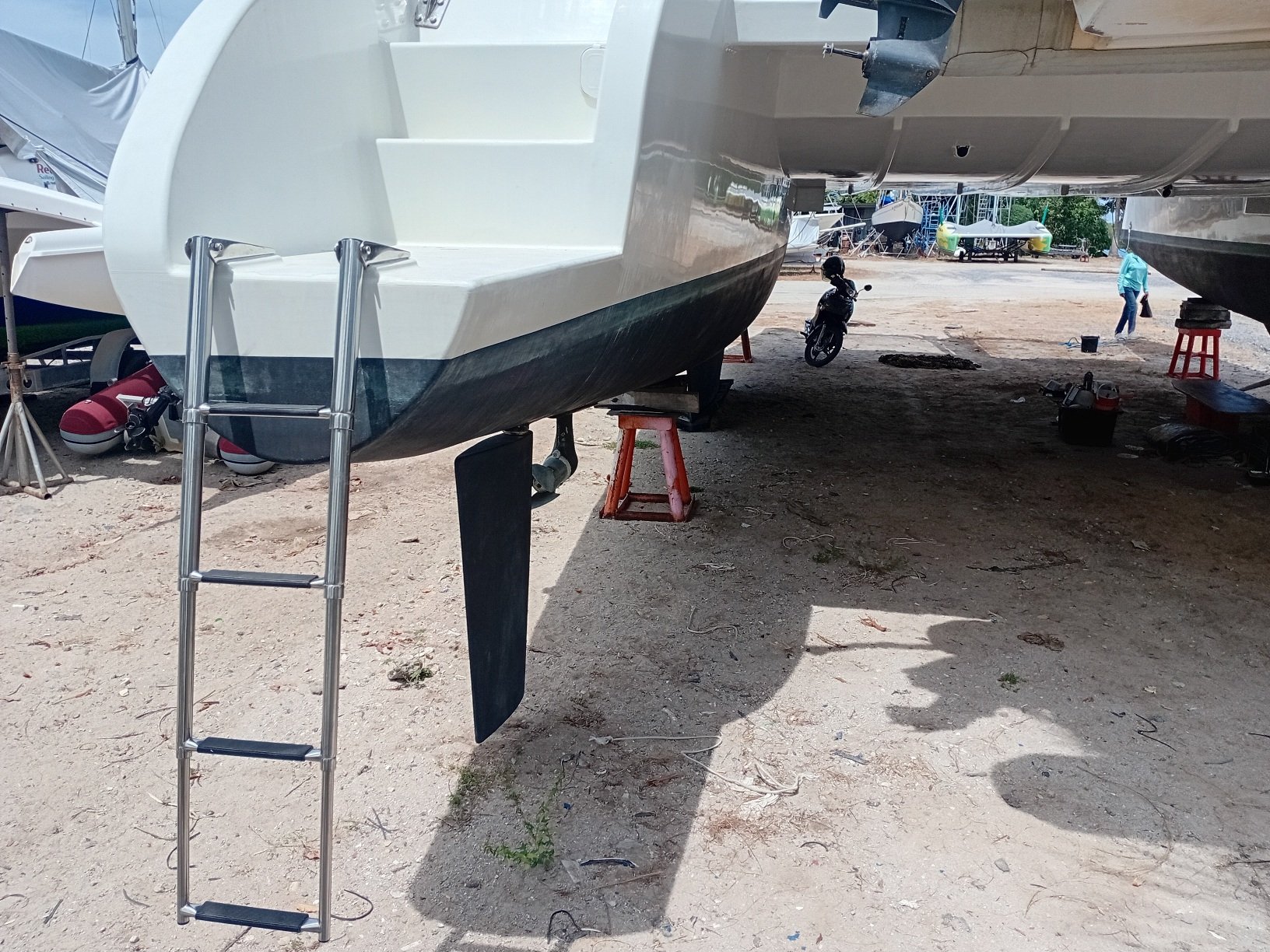

I bought the boat 10 years ago, made a bigger refit and took all interior out, changed the layout and made it new with less weight. Roof, cockpit, front and stern were changed and I took the problematic daggerboards out and installed mini keels and modern rudders.
The boat is lighter, faster and stronger than original with beefed up chain plates, rigging and hardware and different crossbeam. Simple electric system combined with solar and watermaker makes it the perfect ocean greyhound for off grid living.
The boat weights only 10,5 tons and is able to go downhill in over 20 knots of speed in a safe manner. Last year we arrived in Thailand after crossing the Pacific from the Caribbean in less than 6 months of cruising.
Updates
- The boat got a general overhaul and changes over the last 9 years and is presenting more like a new build than a 1989 boat.
Specifications
| Name | S/V Anapa |
| Make | Simpson |
| Model | 48 |
| Year | 1989 |
| Builder | Various |
| Designer | Roger Simpson |
| Construction | Fiberglass Reinforced Plastic- FRP |
| Cabins | 3 |
| Heads | 2 |
| Galley | Up |
Dimensions
| Loa | 48ft |
| Lwl | 46ft |
| Beam | 24ft |
| Draft | 4ft |
| Mast Height | 64ft |
Tankage
| Fuel Tanks | 90gal |
| Water Tanks | 115gal |
| Holding Tanks | 15gal |
Performance
| Engines | Yanmar 3JH2CE,Yanmar 3JJ3E,SD31 saildrives |
| Engine Hours | 2000 on each after refit |
| Fuel Consumption | 3/4 gal./hour |
| Displacement | 21000lb |
| Speed | 7.5 knots cruising 10 knots Max |
| Sails | Mainsail 40 sqm, dacron, good condition 6 yo 120% Jib, dacron, good condition 10 yo 120% Jib, composite Self tacking Jib, 30 sqm good condition,6 yo Asymetric Spinnaker 120 sqm, good condition |
Layout Diagram
Catamaran Inventory
Construction
- Hull is composite epoxy/glass, red cedar strip planking.
- Deck/roof, plywood with fiberglass on top

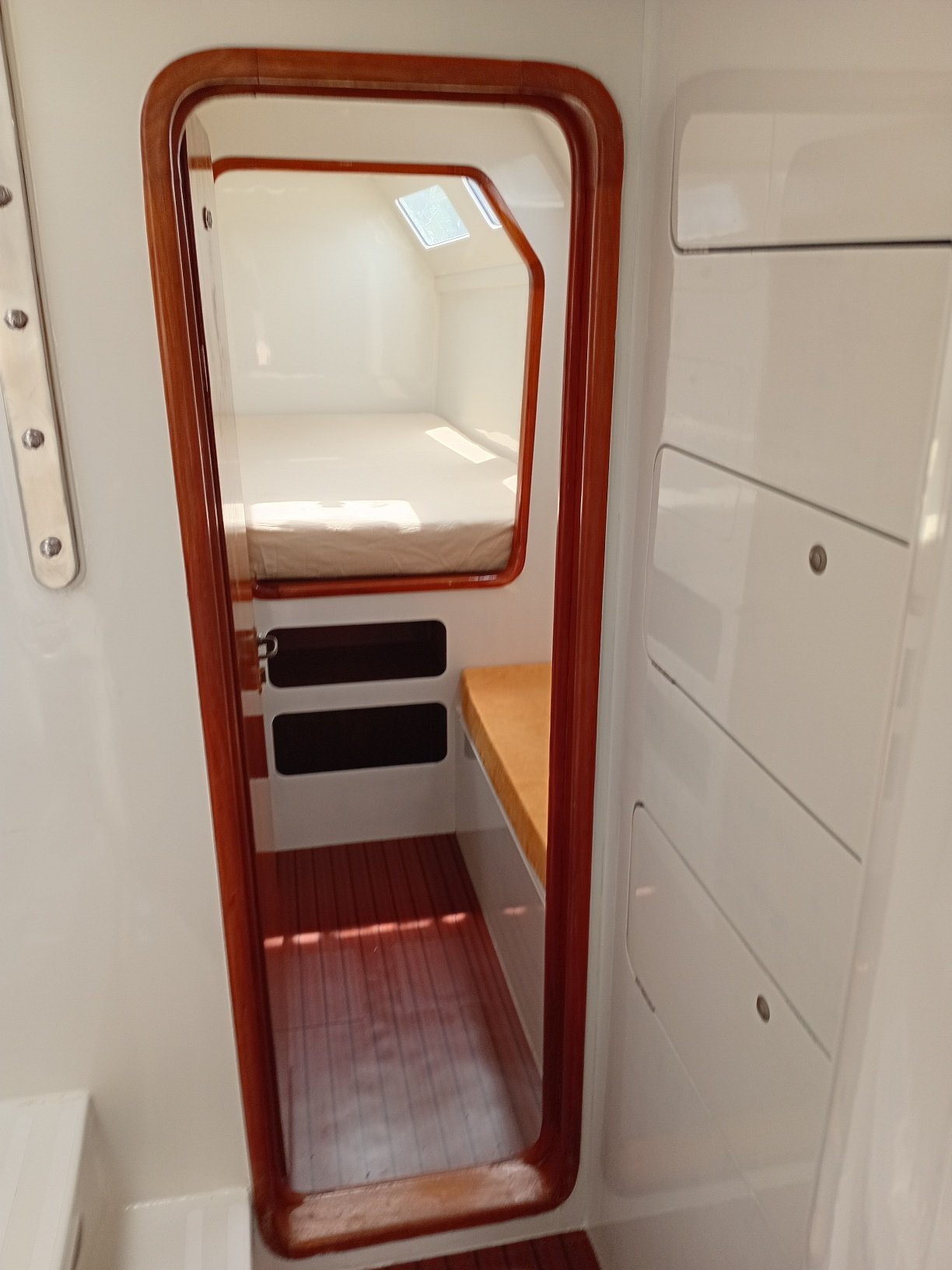

Accommodations

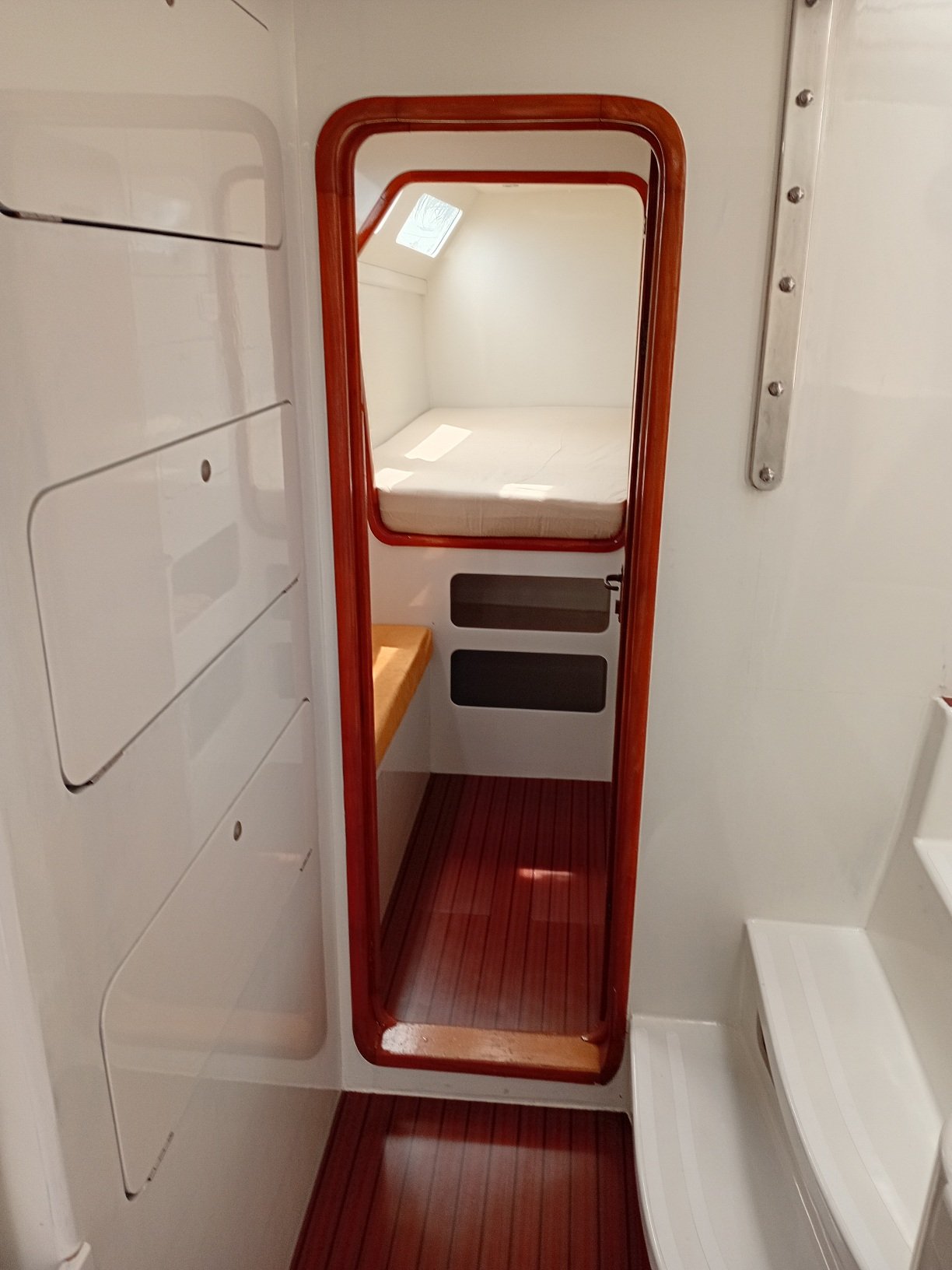

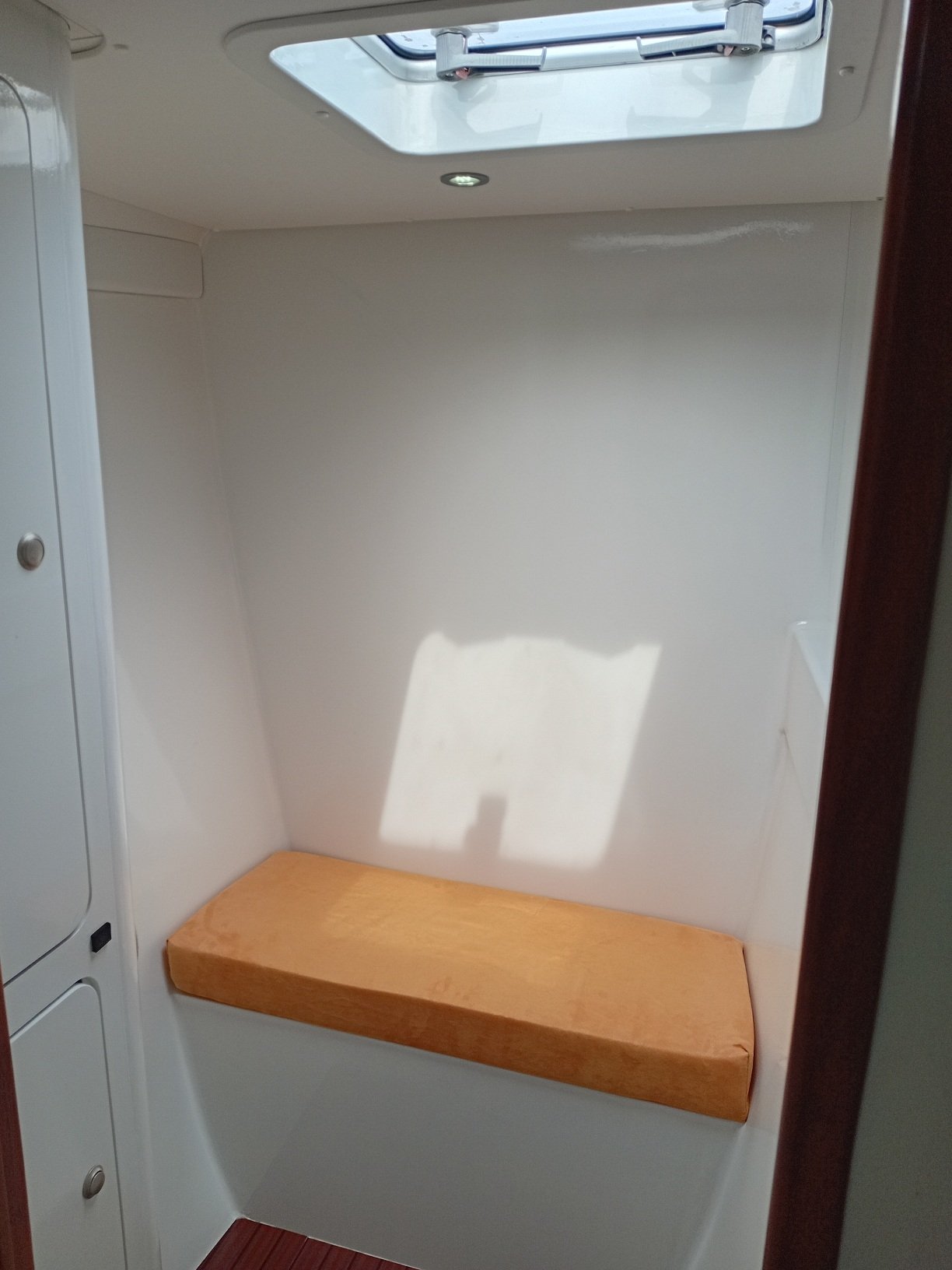

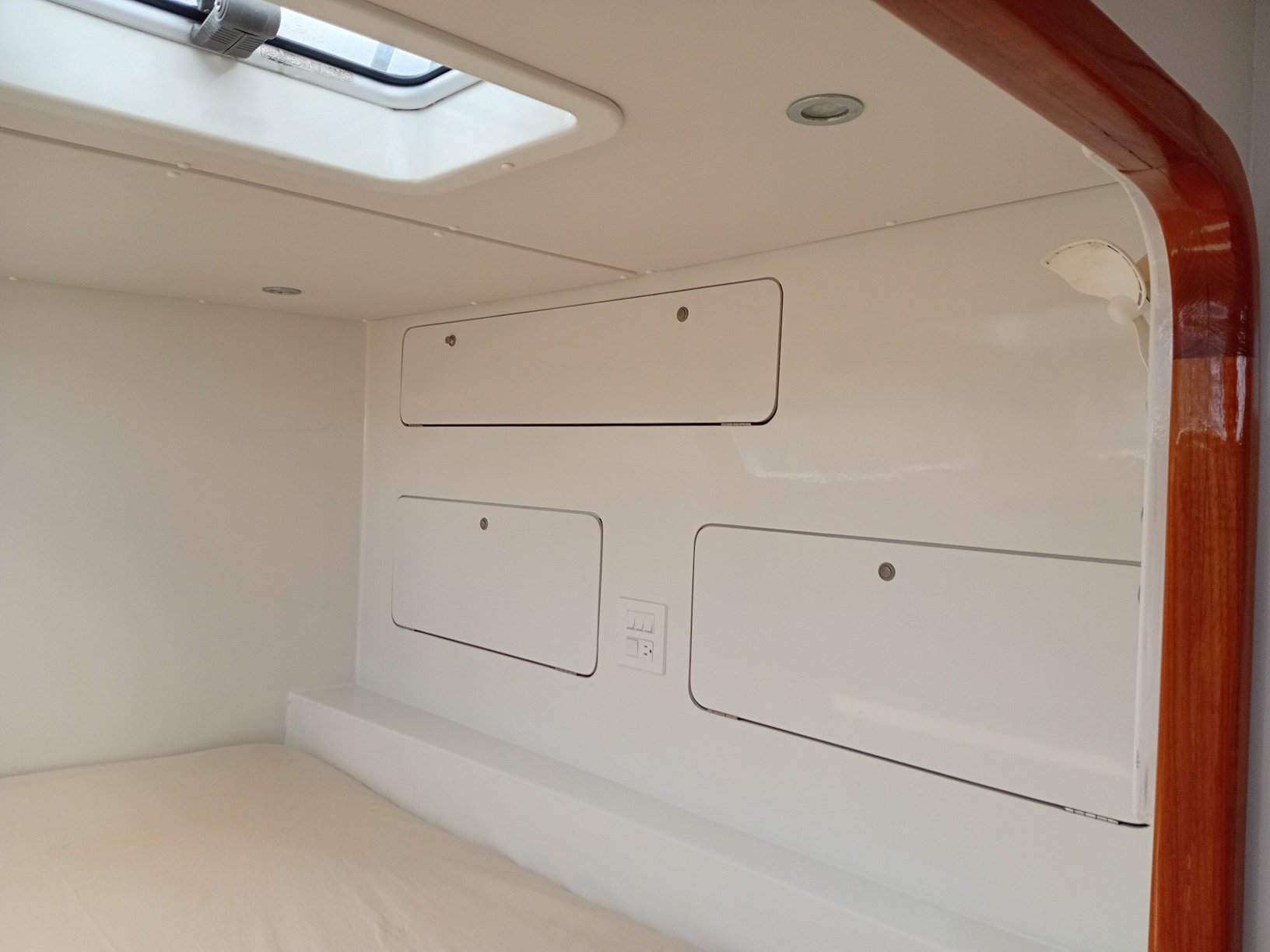

- 3 cabins with one opening hatch each.

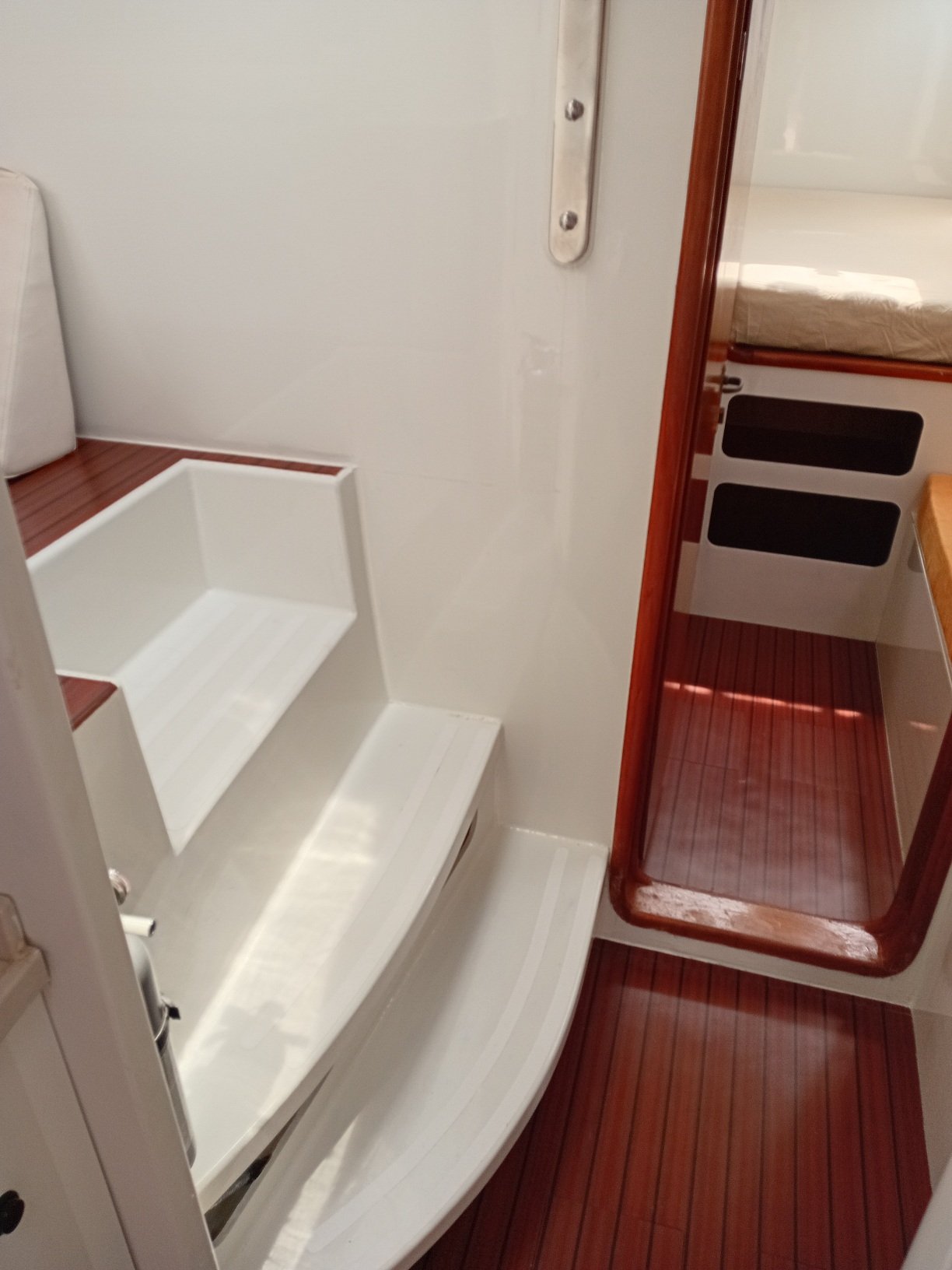

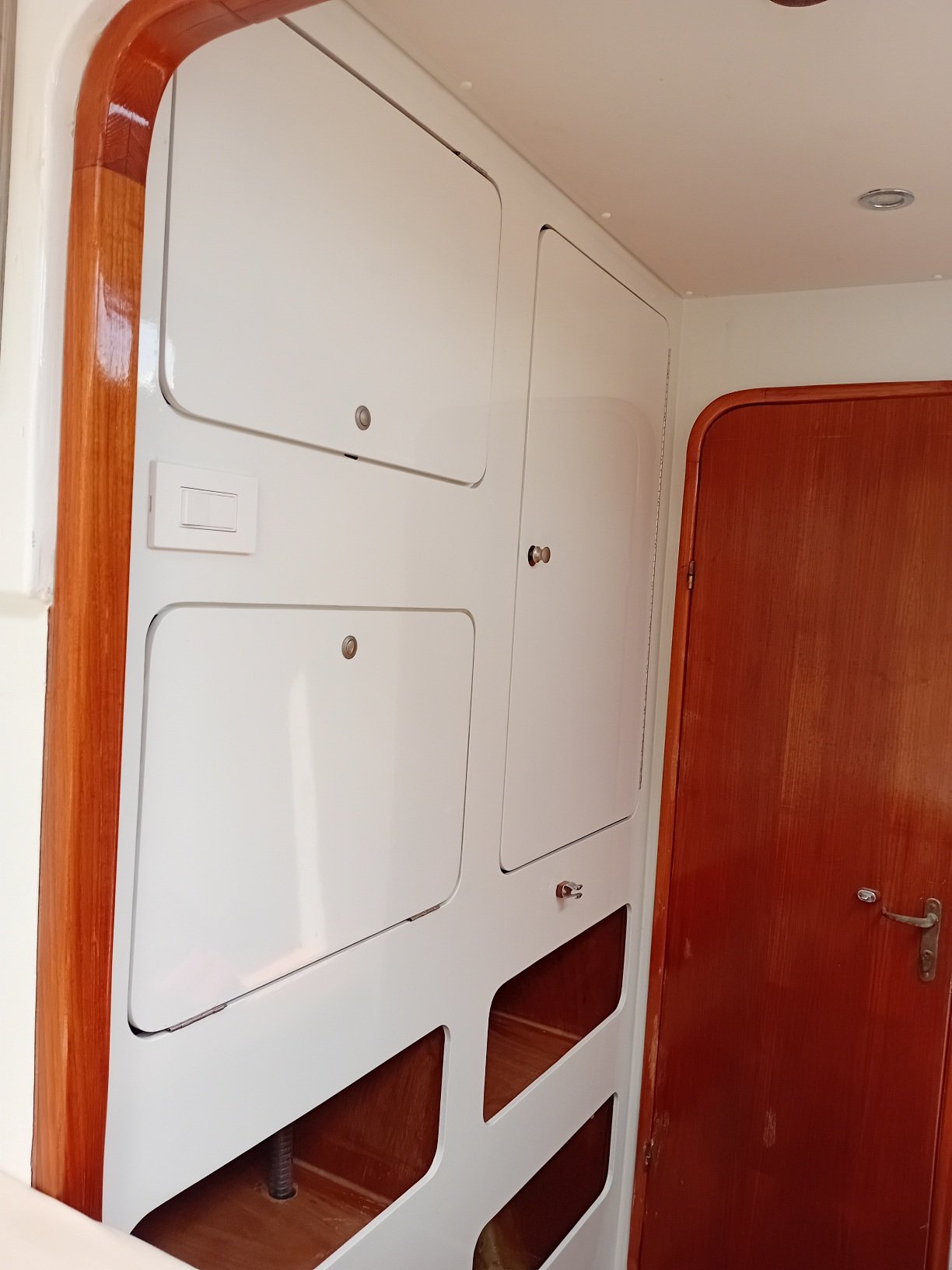

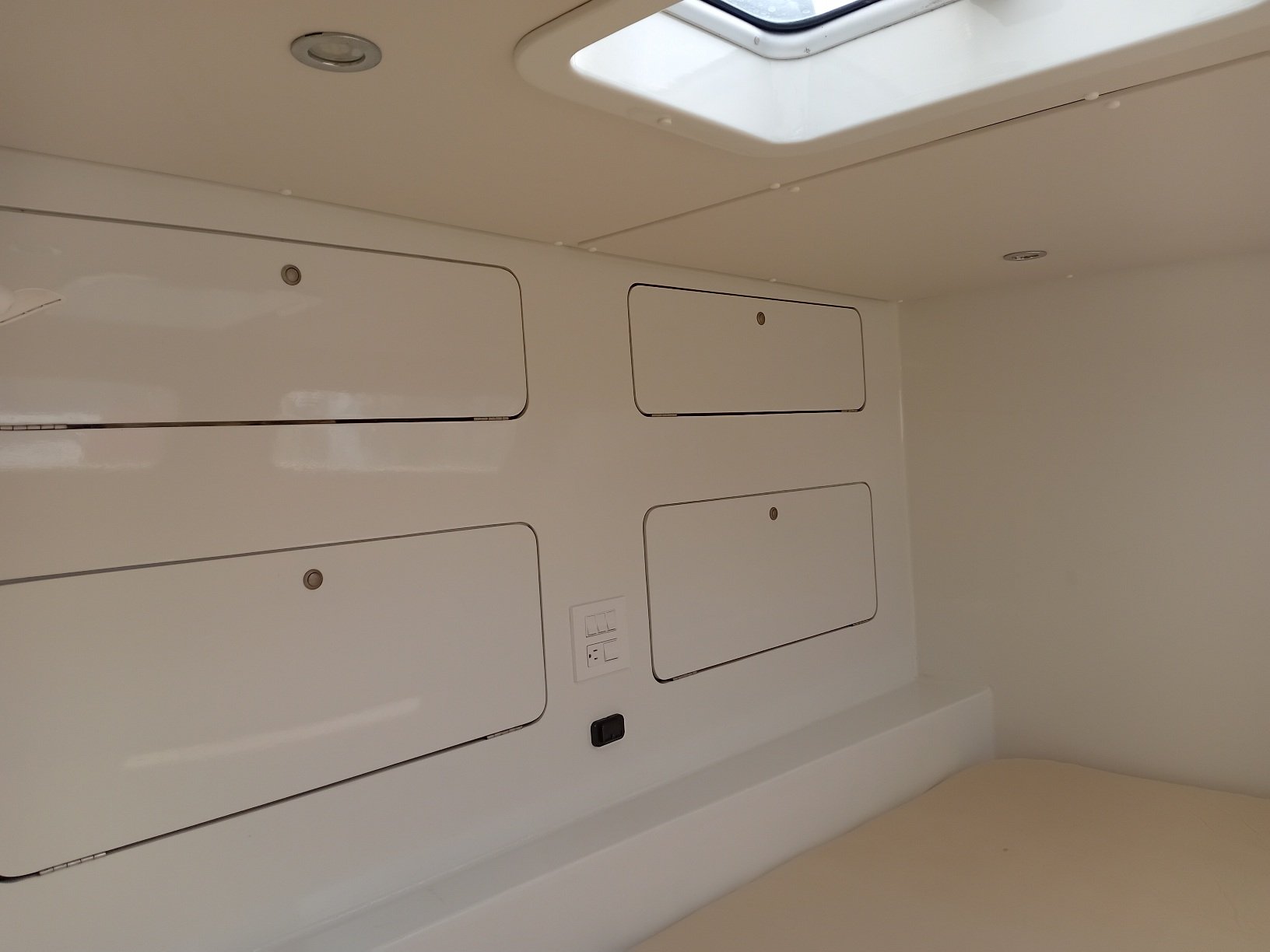

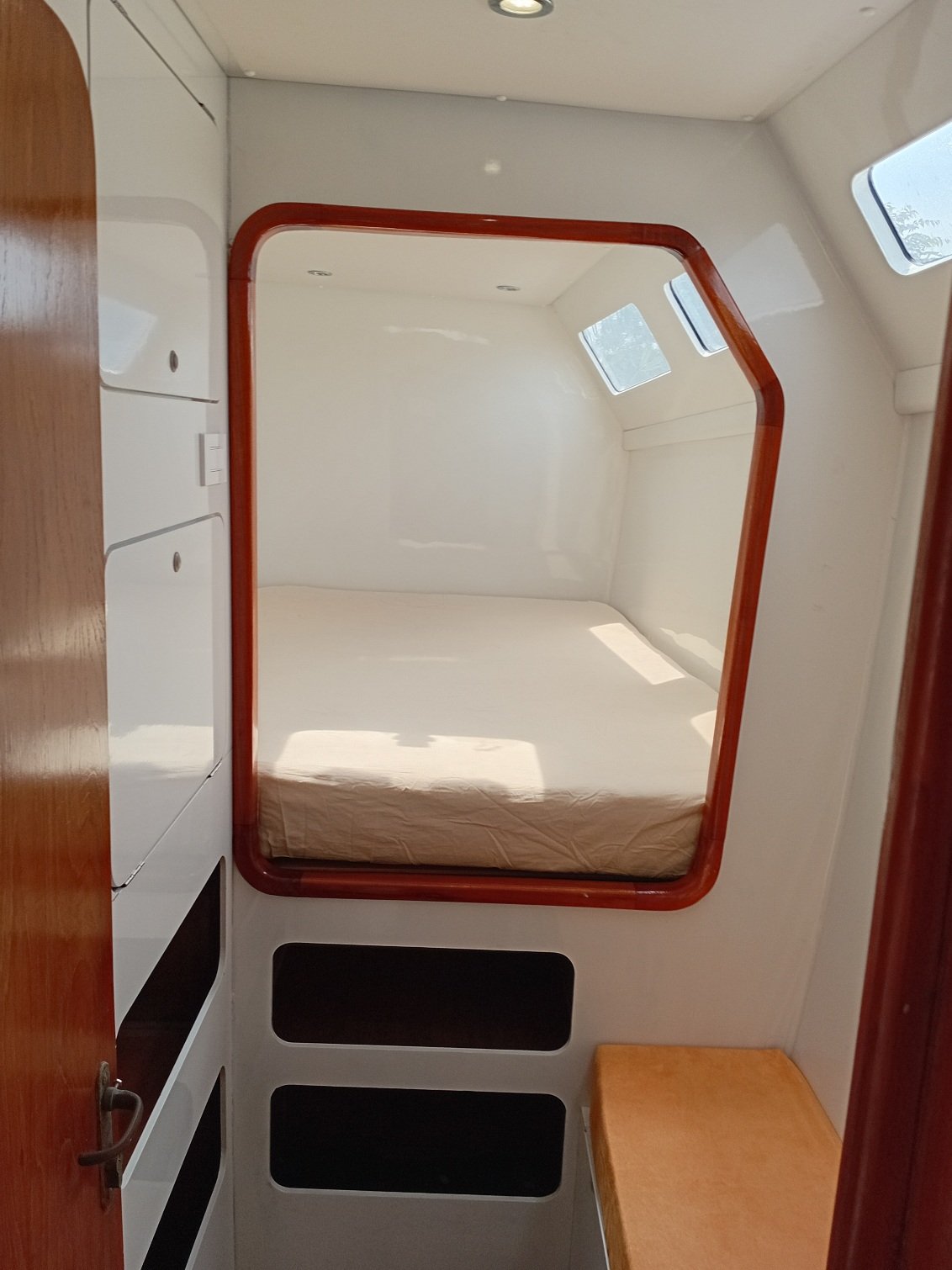

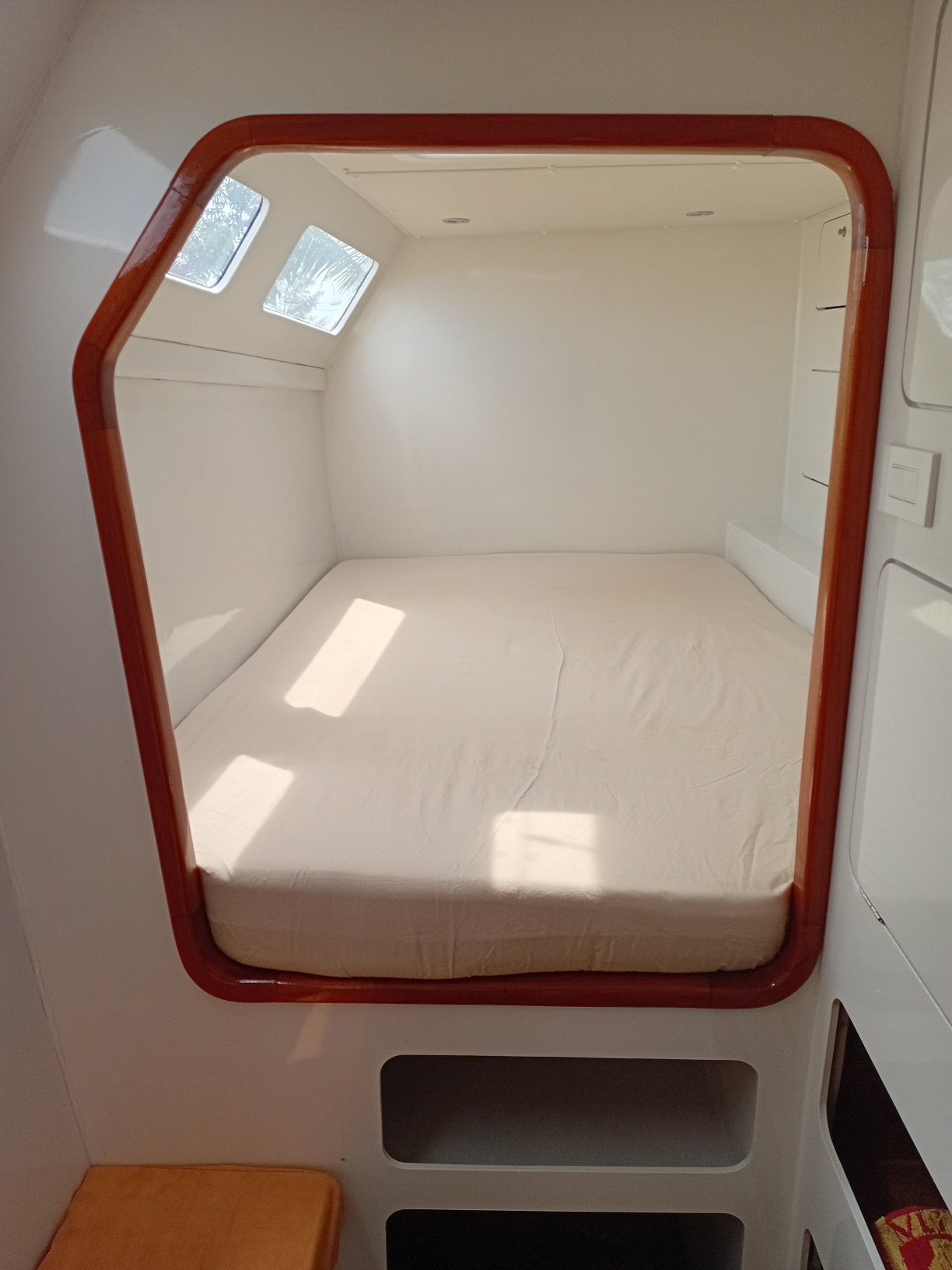

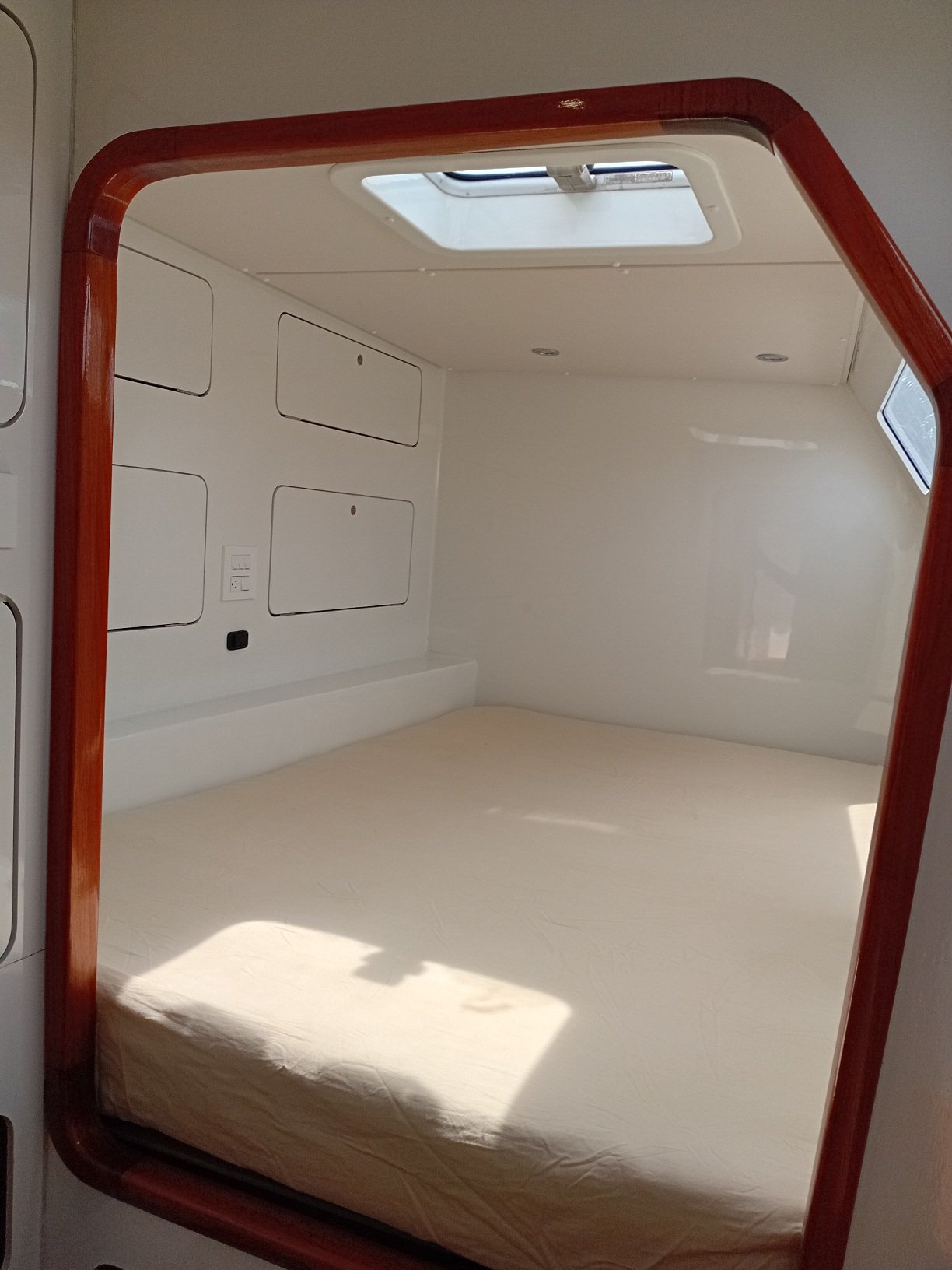

- 2 aft cabins with queen size beds, cabinets and hanging lockers, plus storage under the beds and seats.

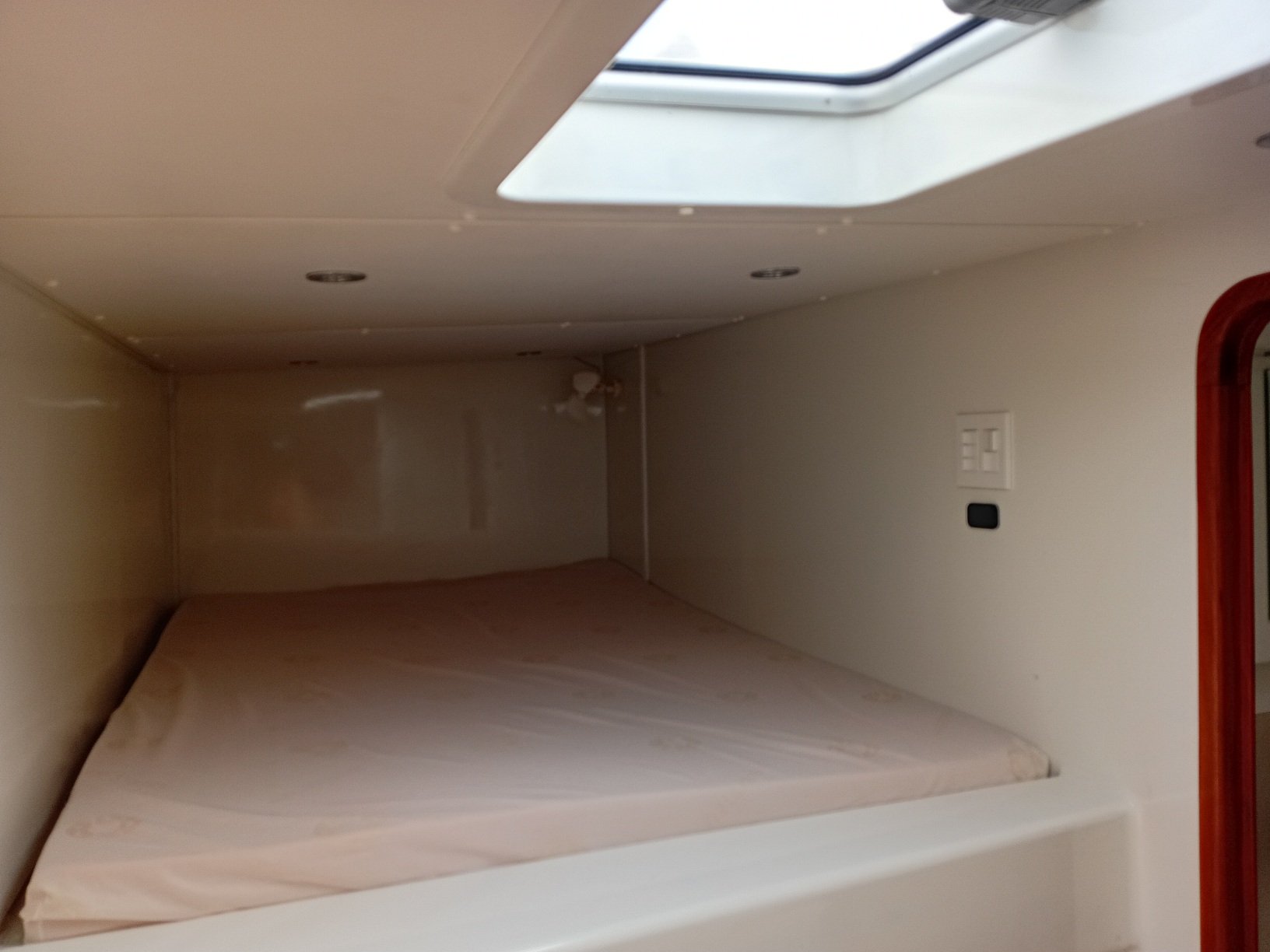

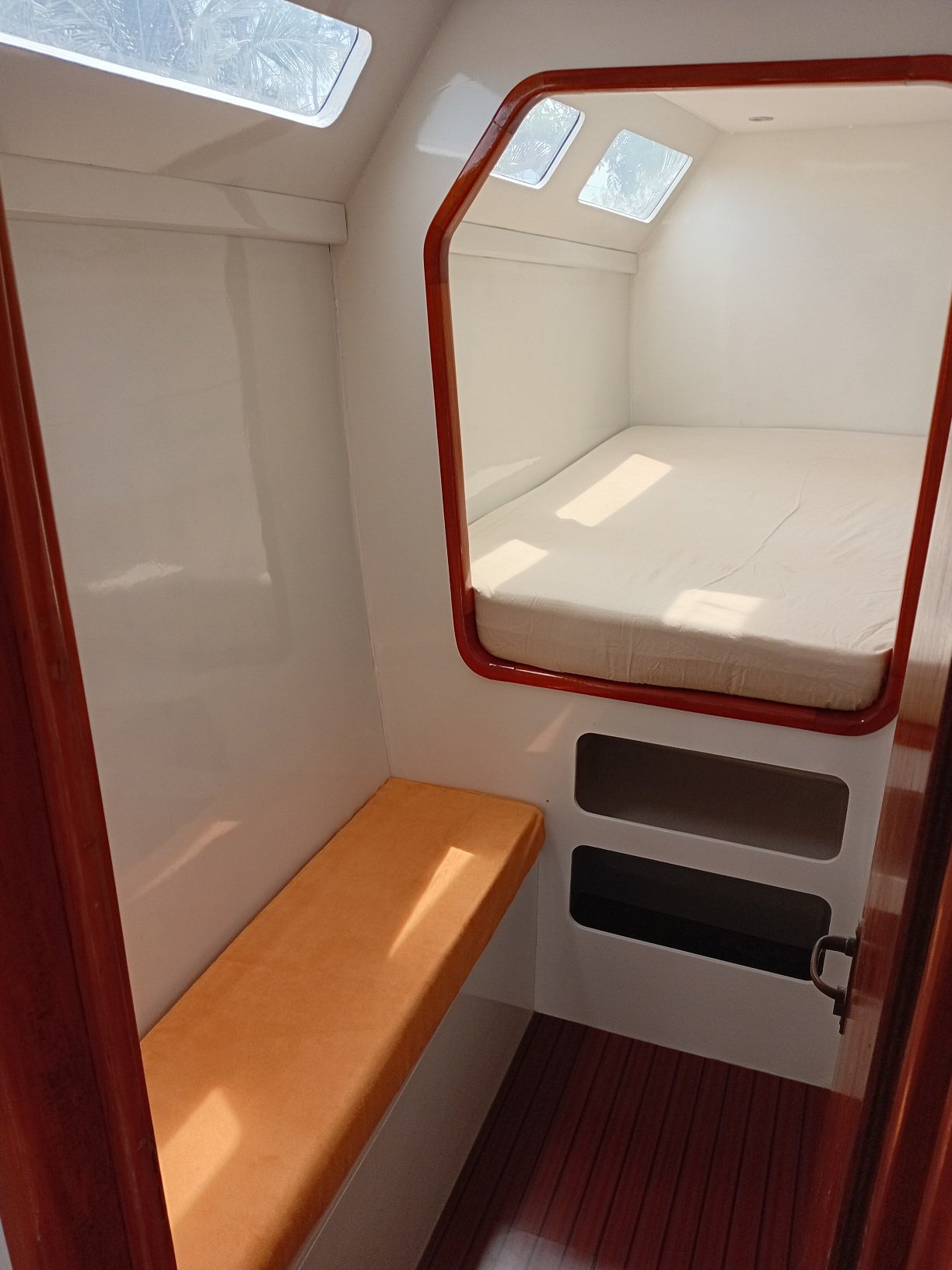

- 1 forward cabin with queen size bed on the bridgedeck, cabinet plus storage under the seat.

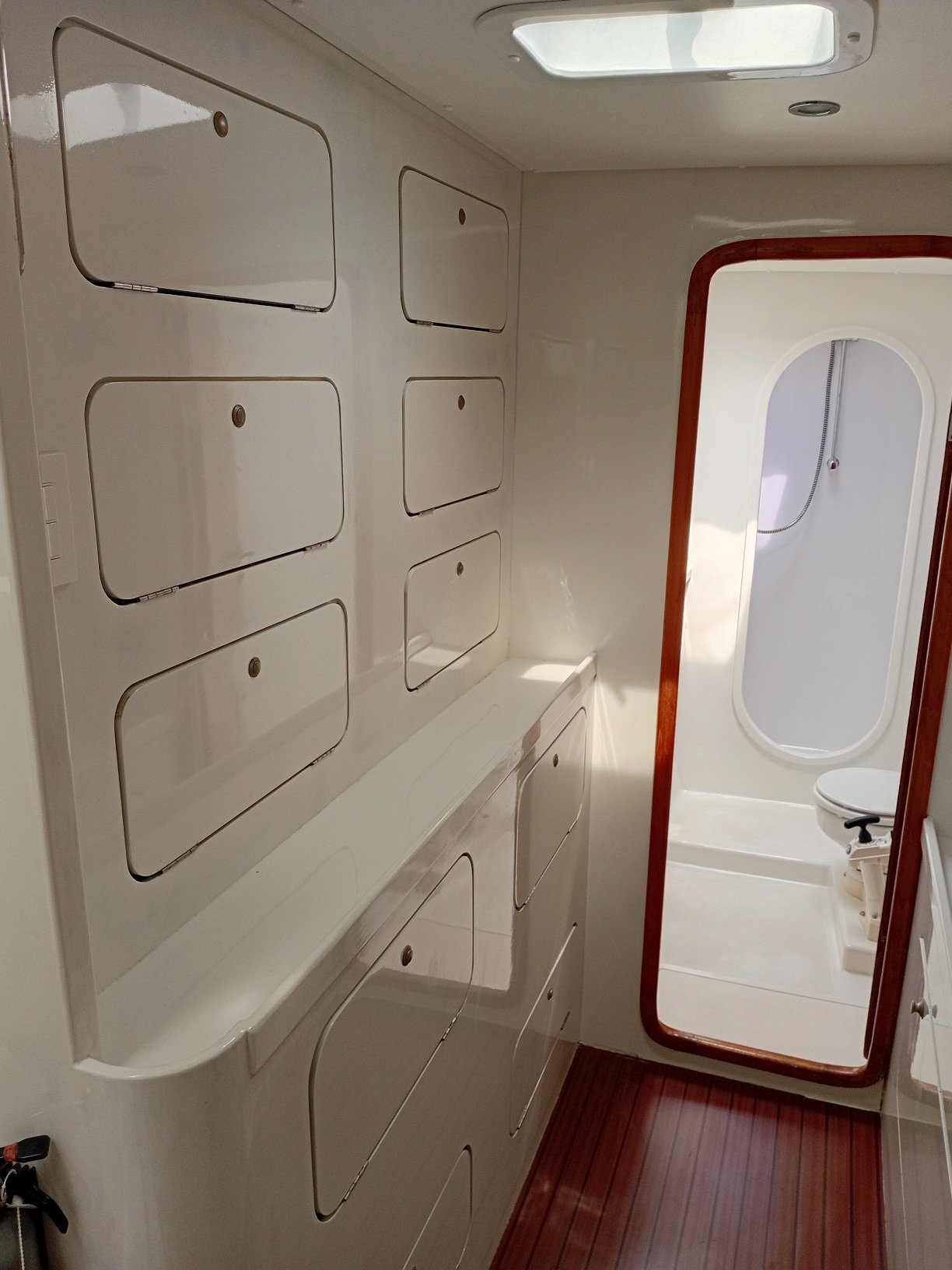

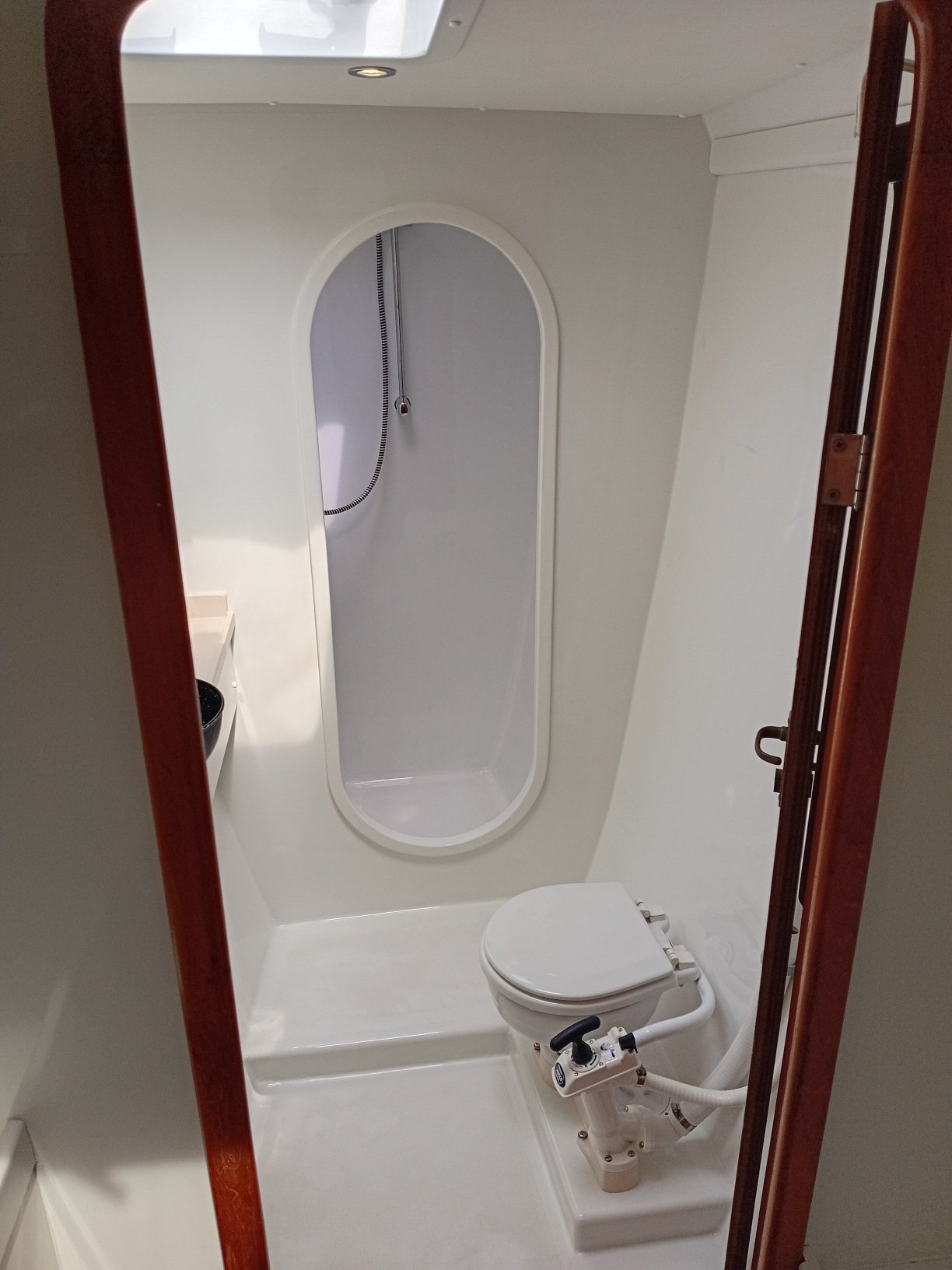

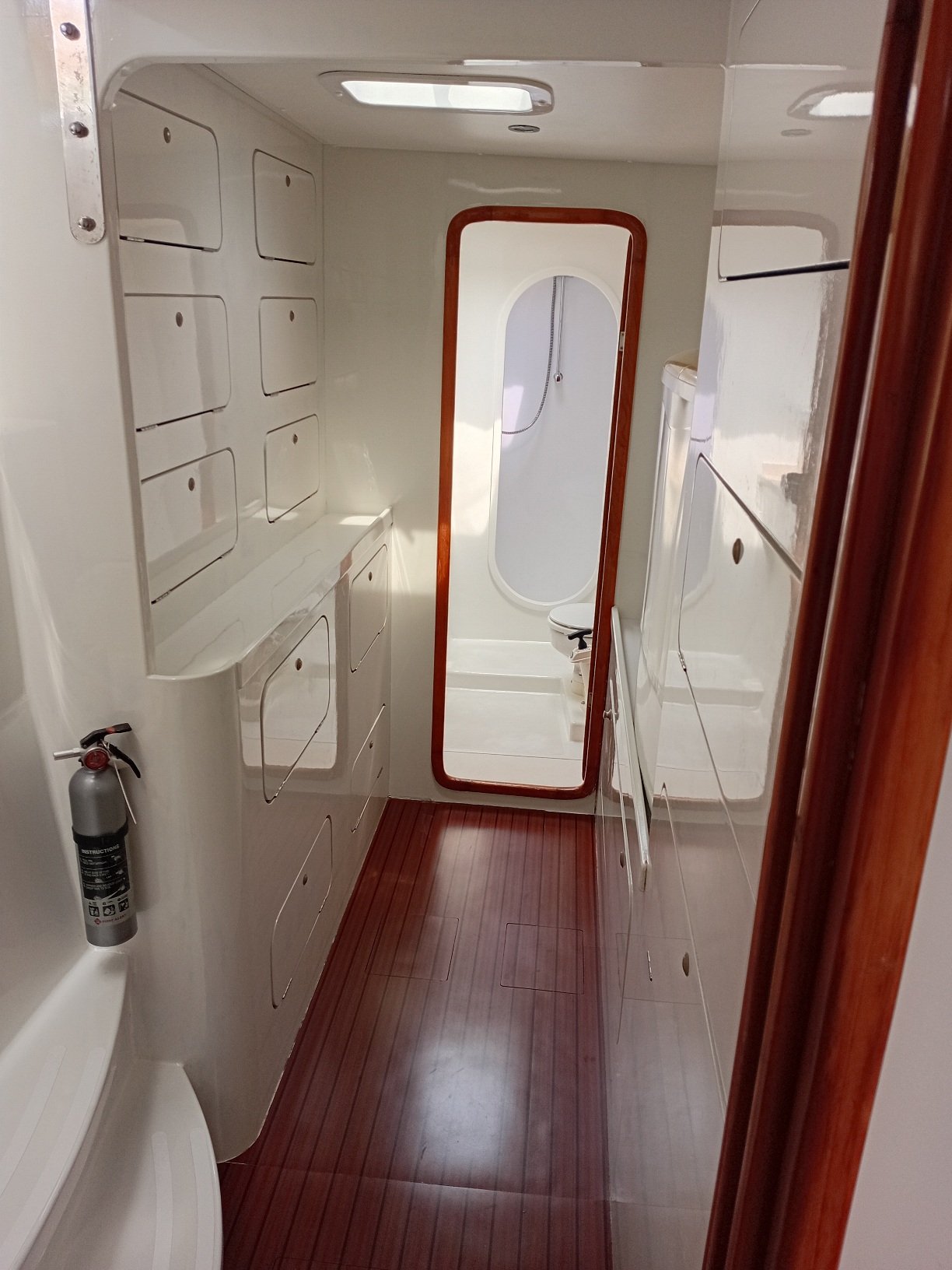

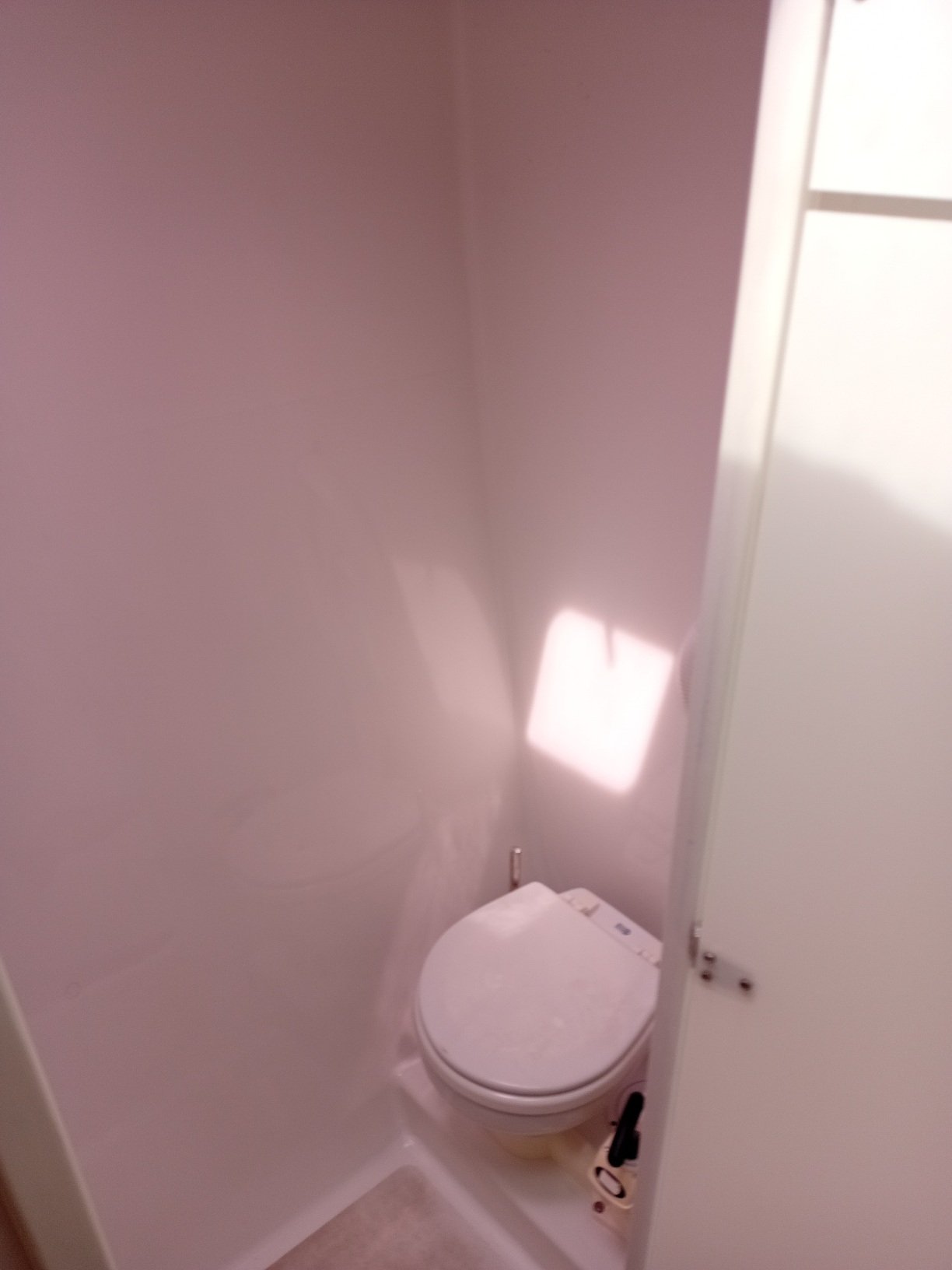

- Shared toilet/shower between front and aft cabin in Port hull

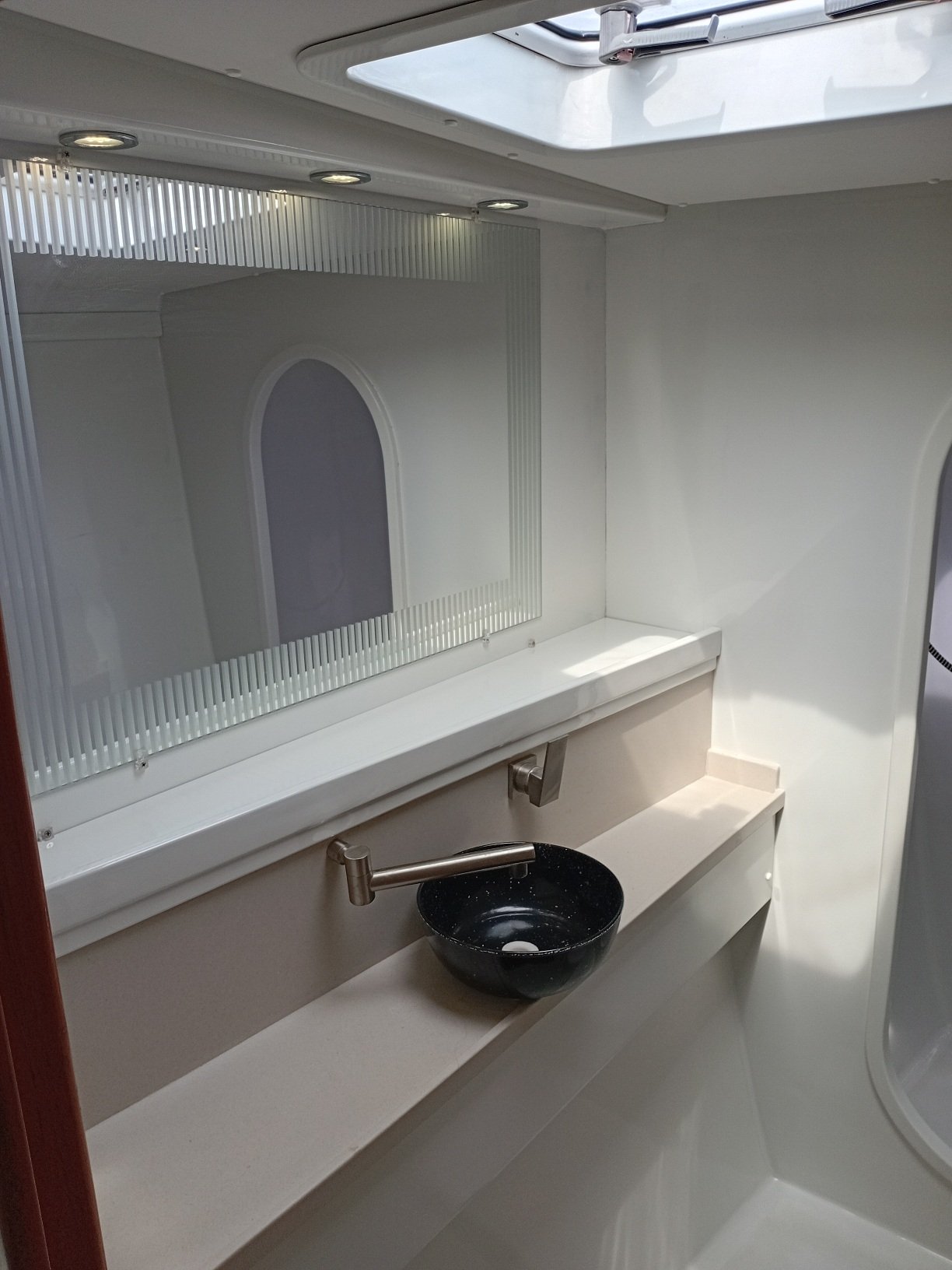

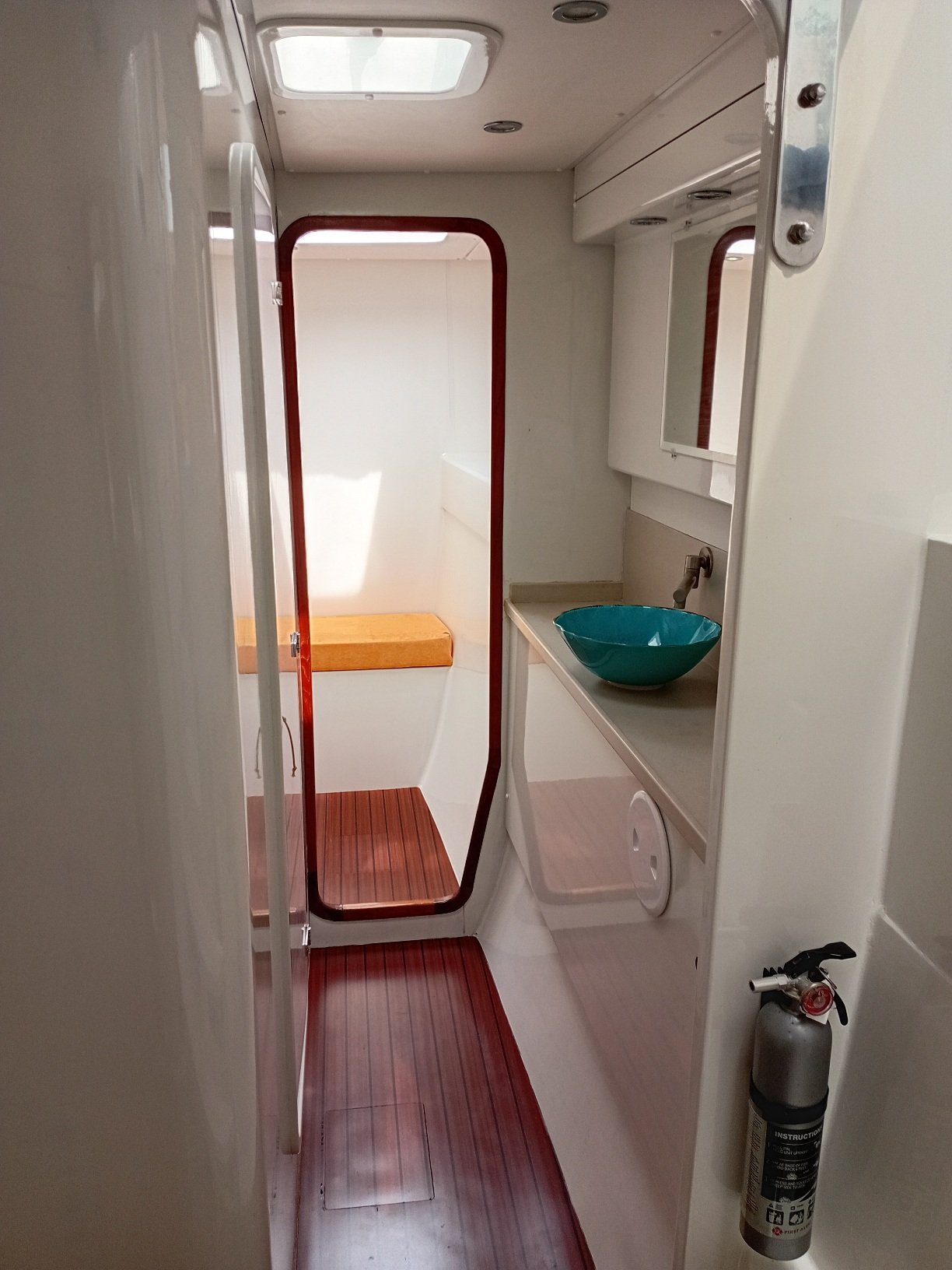

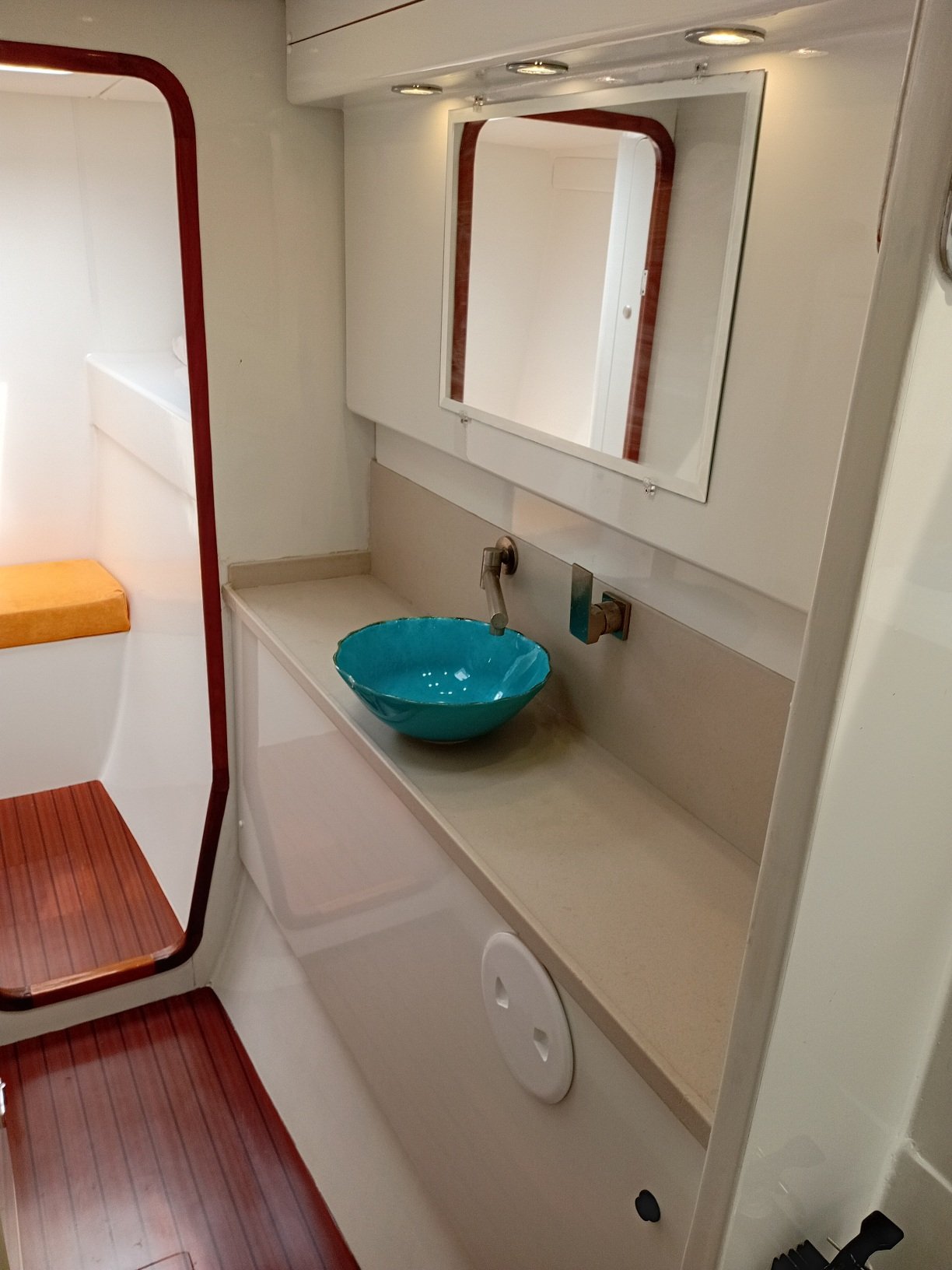

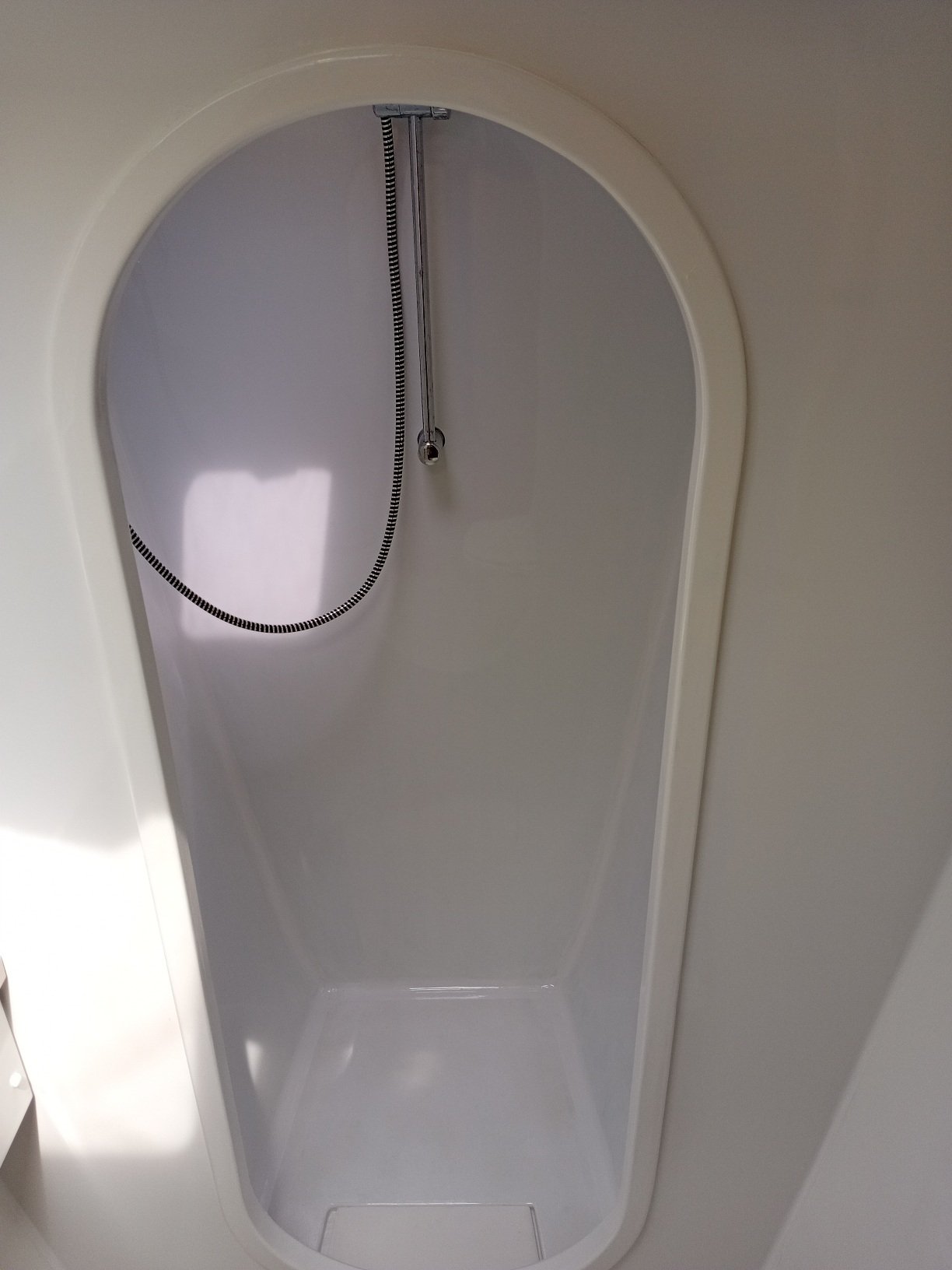

- Front bathroom with separated shower in stb hull

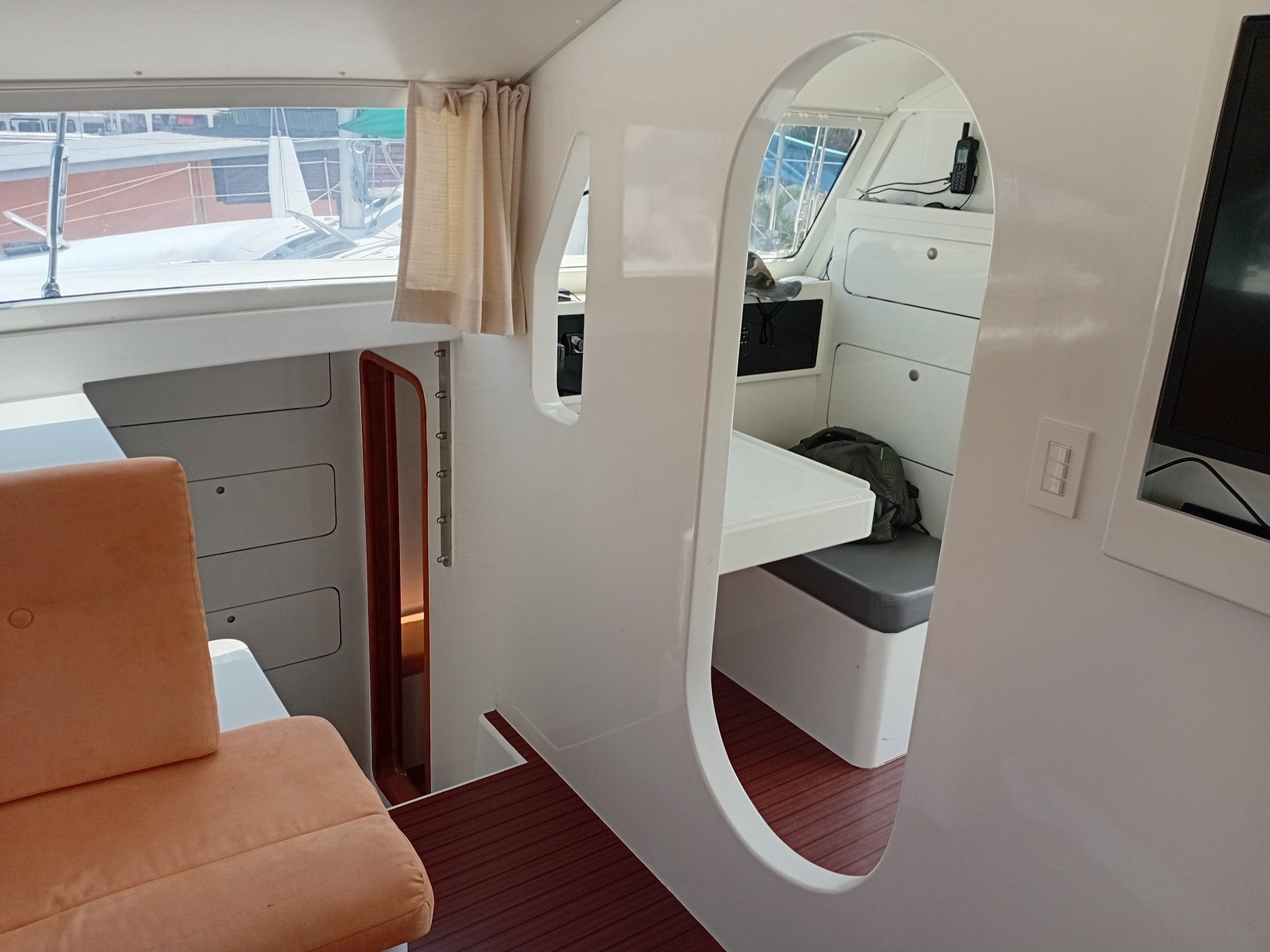

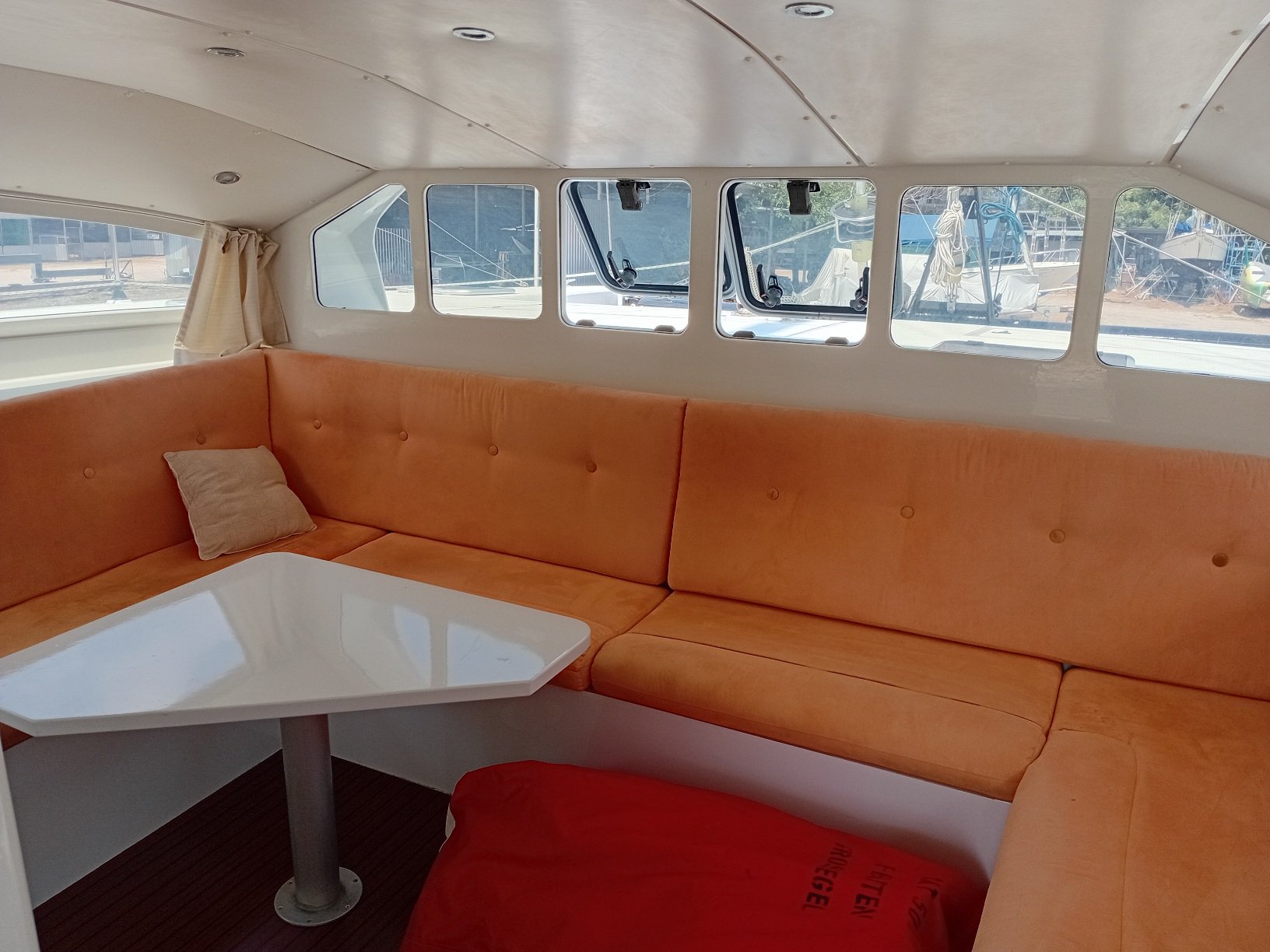

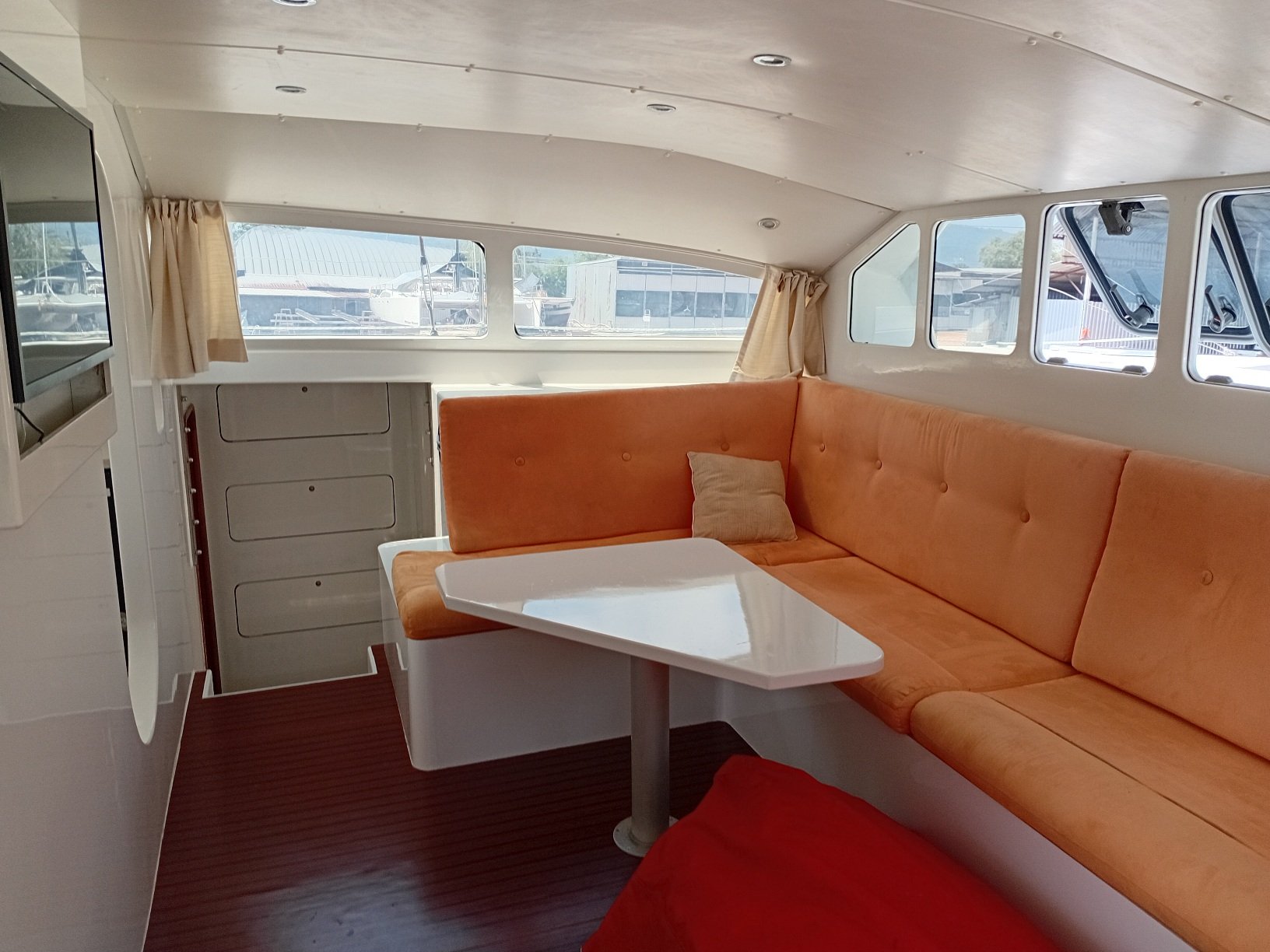

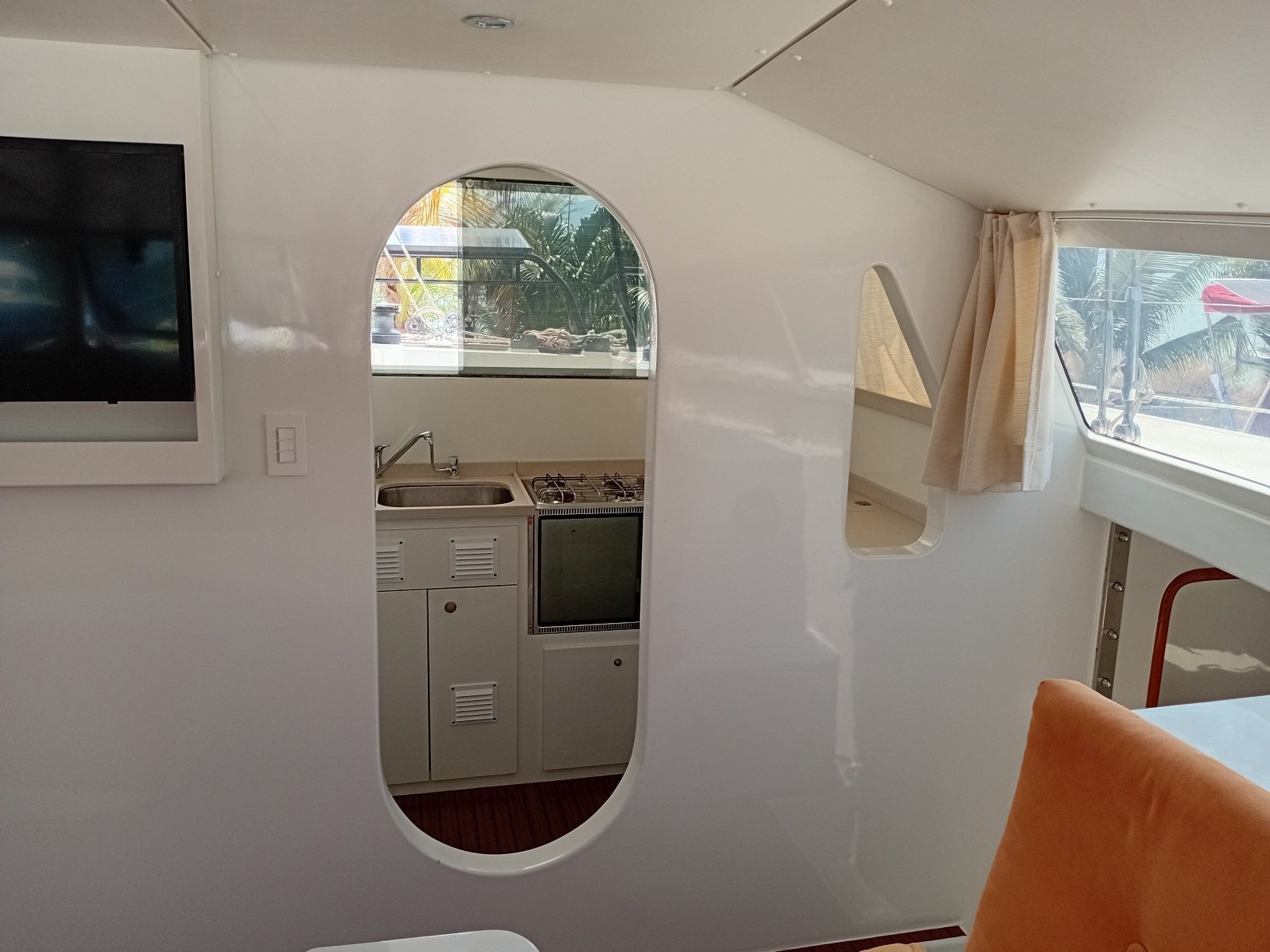

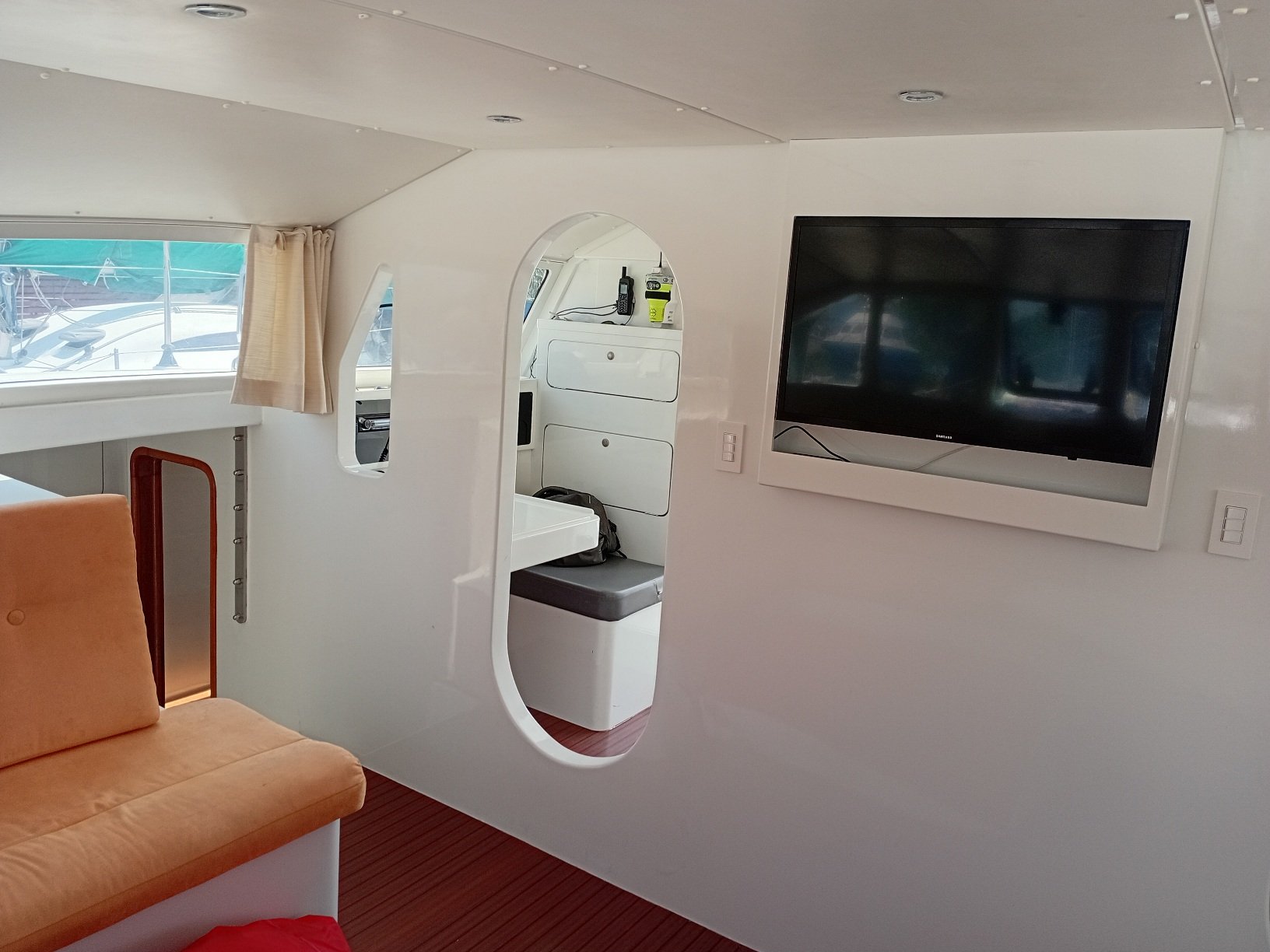

Salon
- Bridgedeck wide salon with U settee
- Small table
- 2 forward opening hatches

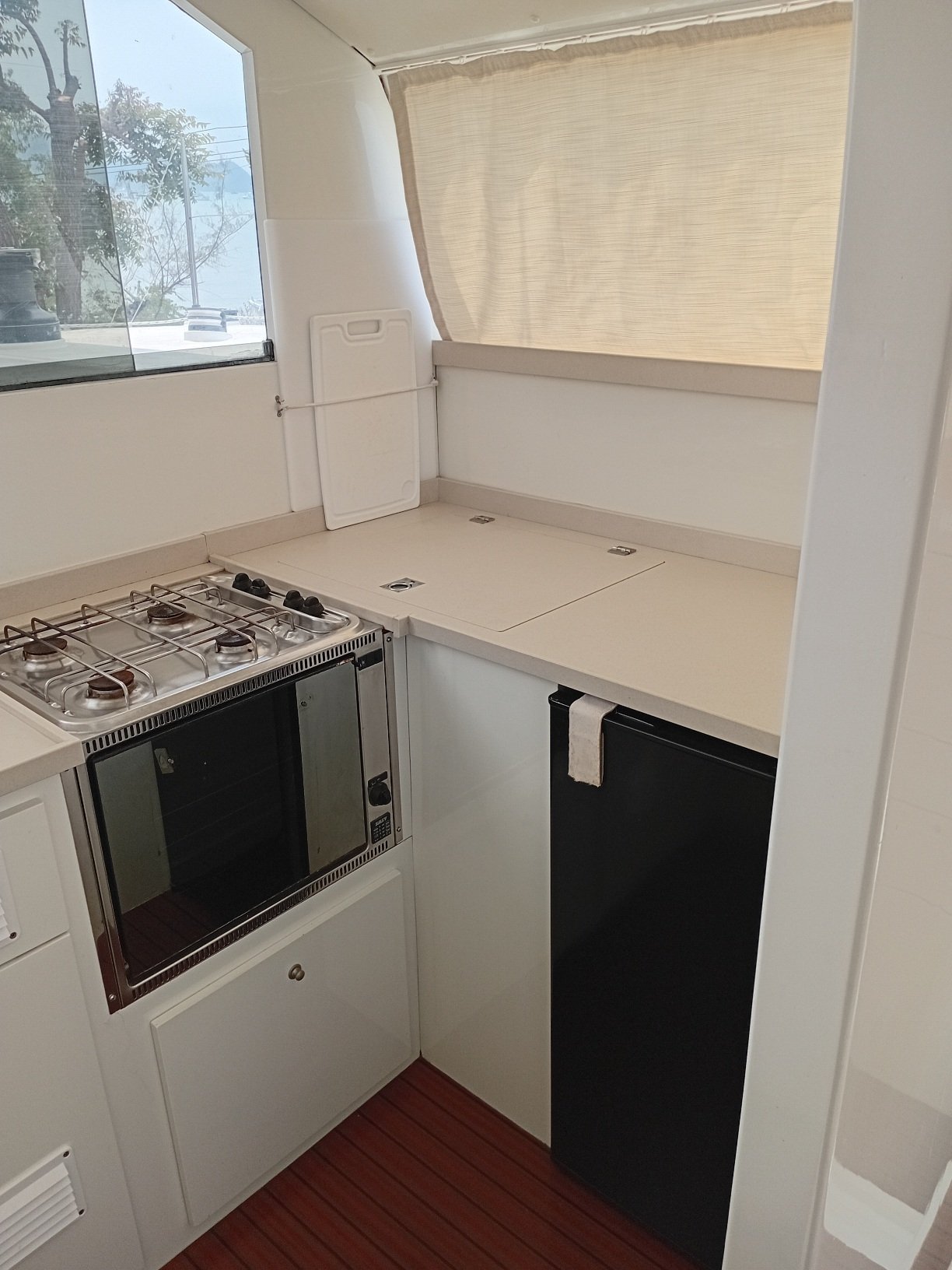

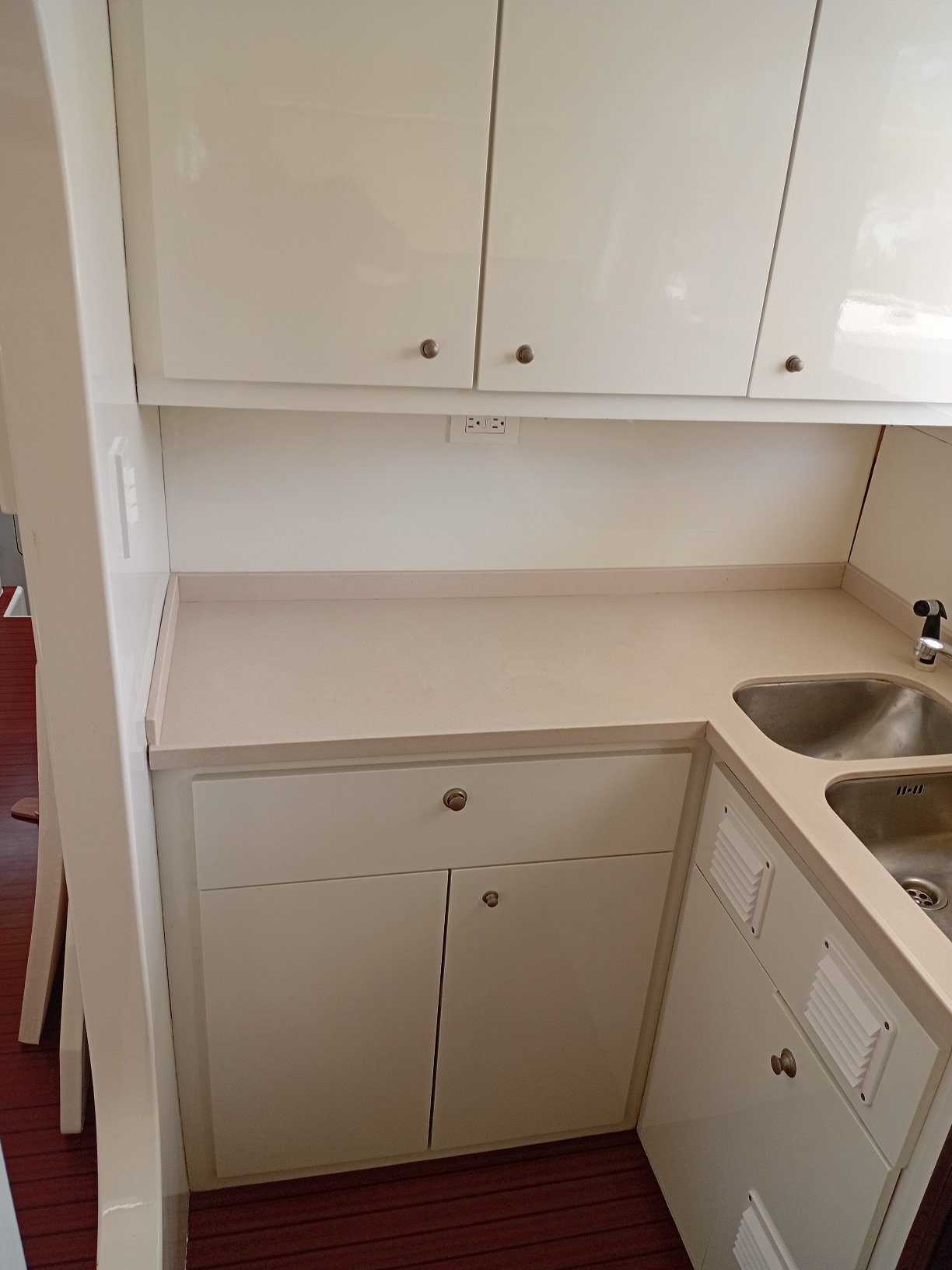

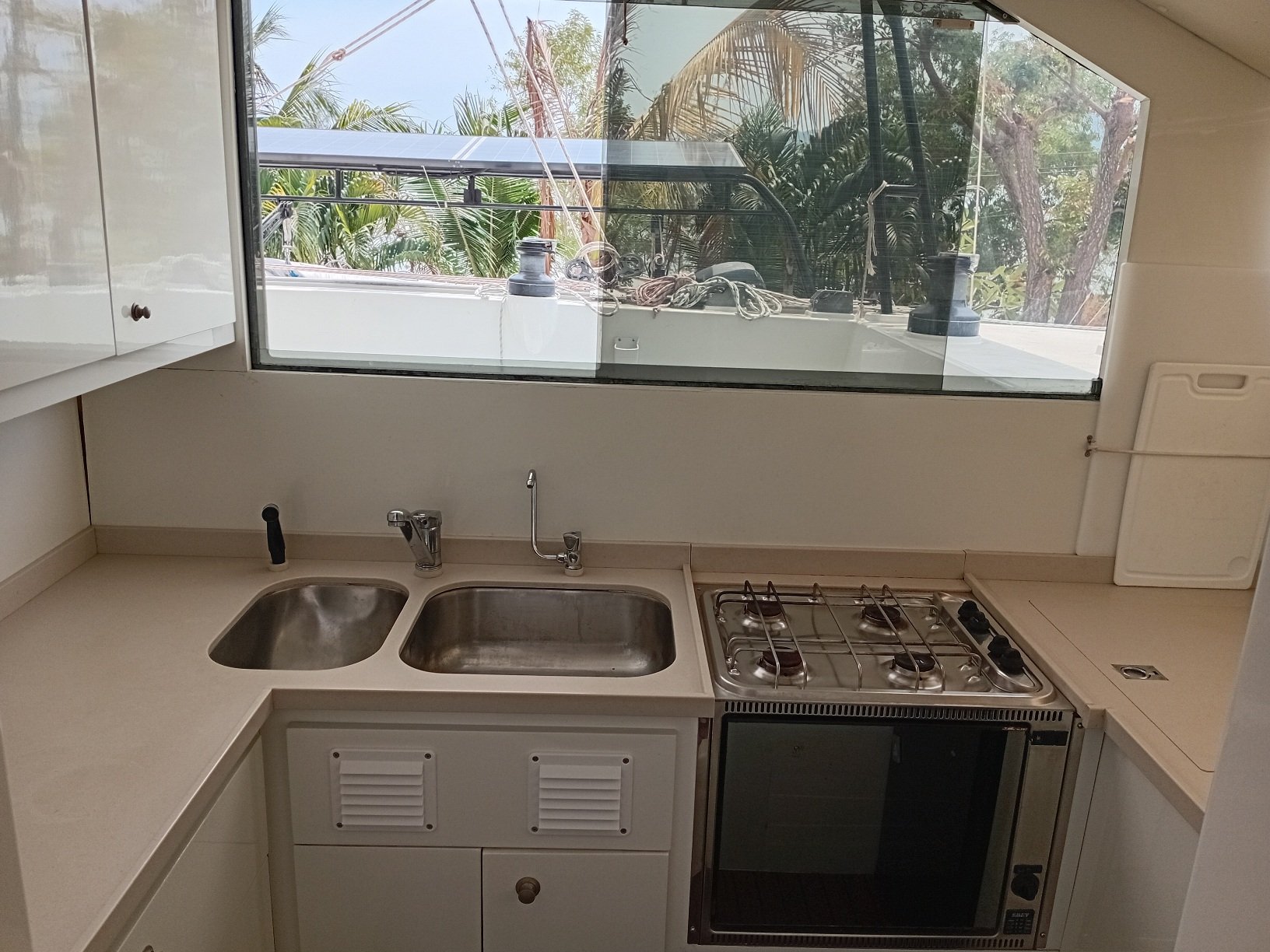

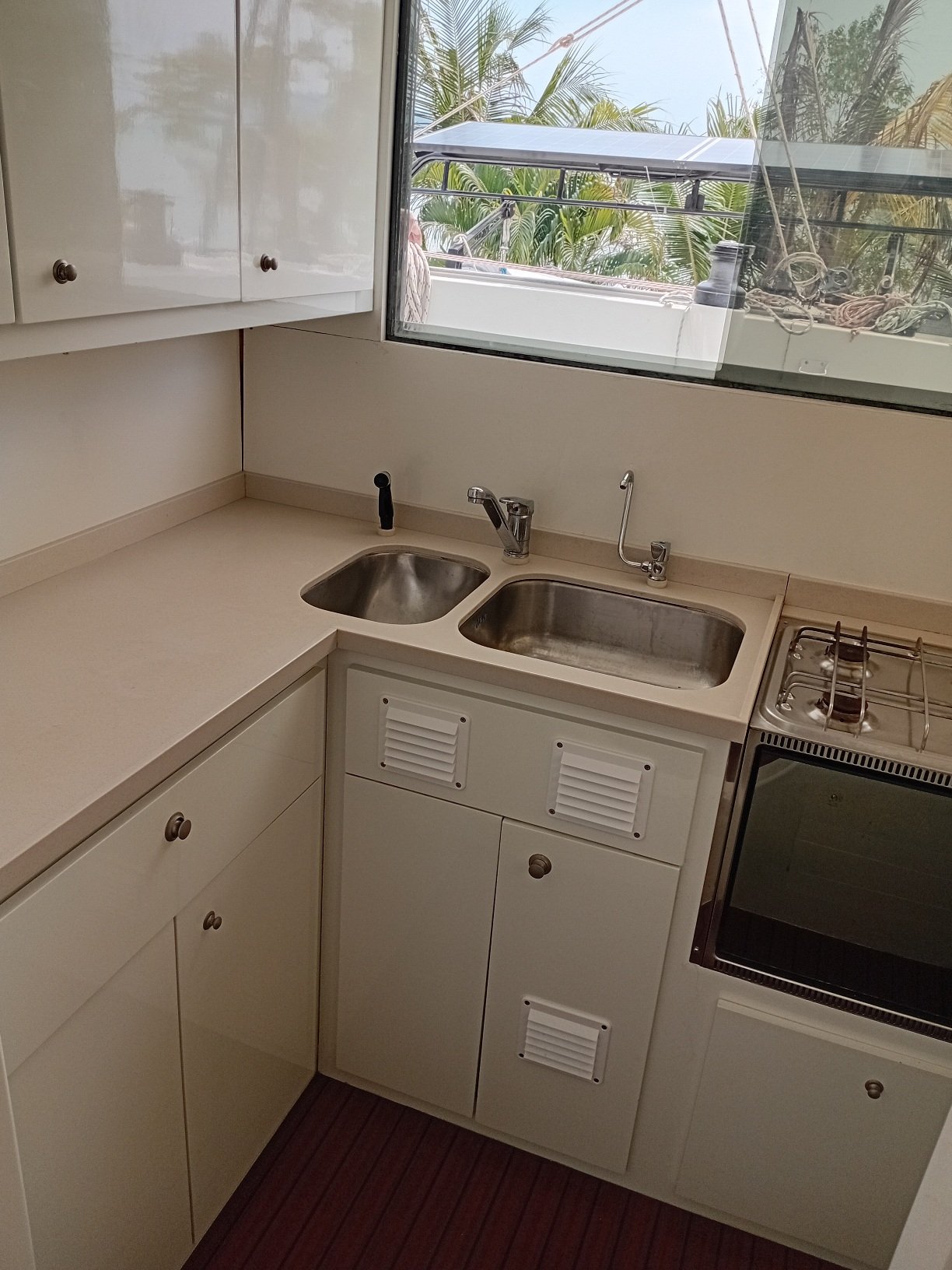

Galley
- Full galley on bridgedeck
- Double ss- sink
- 110 V frontload fridge.

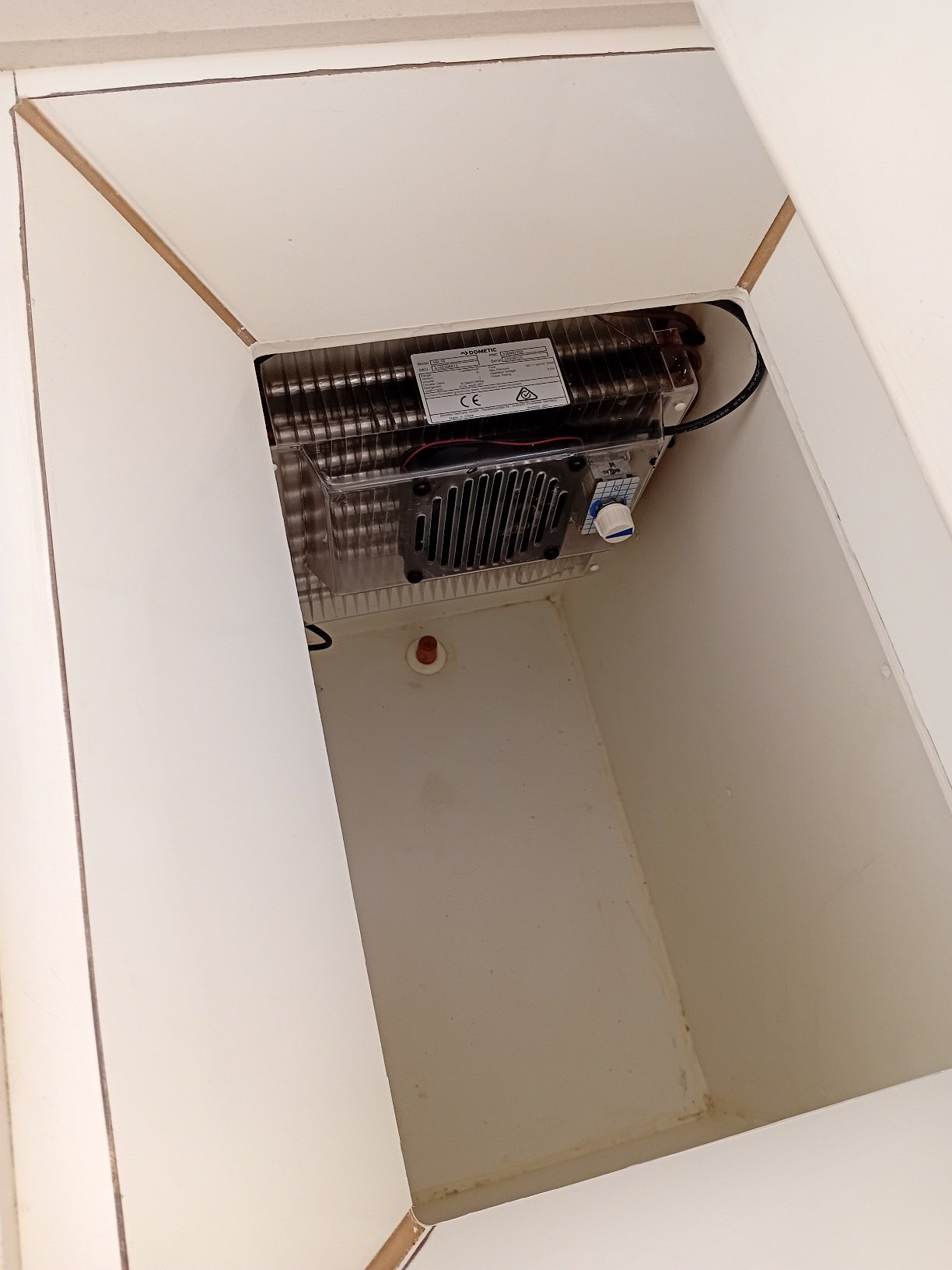

- 12V top load freezer
- Smev, 4 burner stove with oven
- Big sliding window

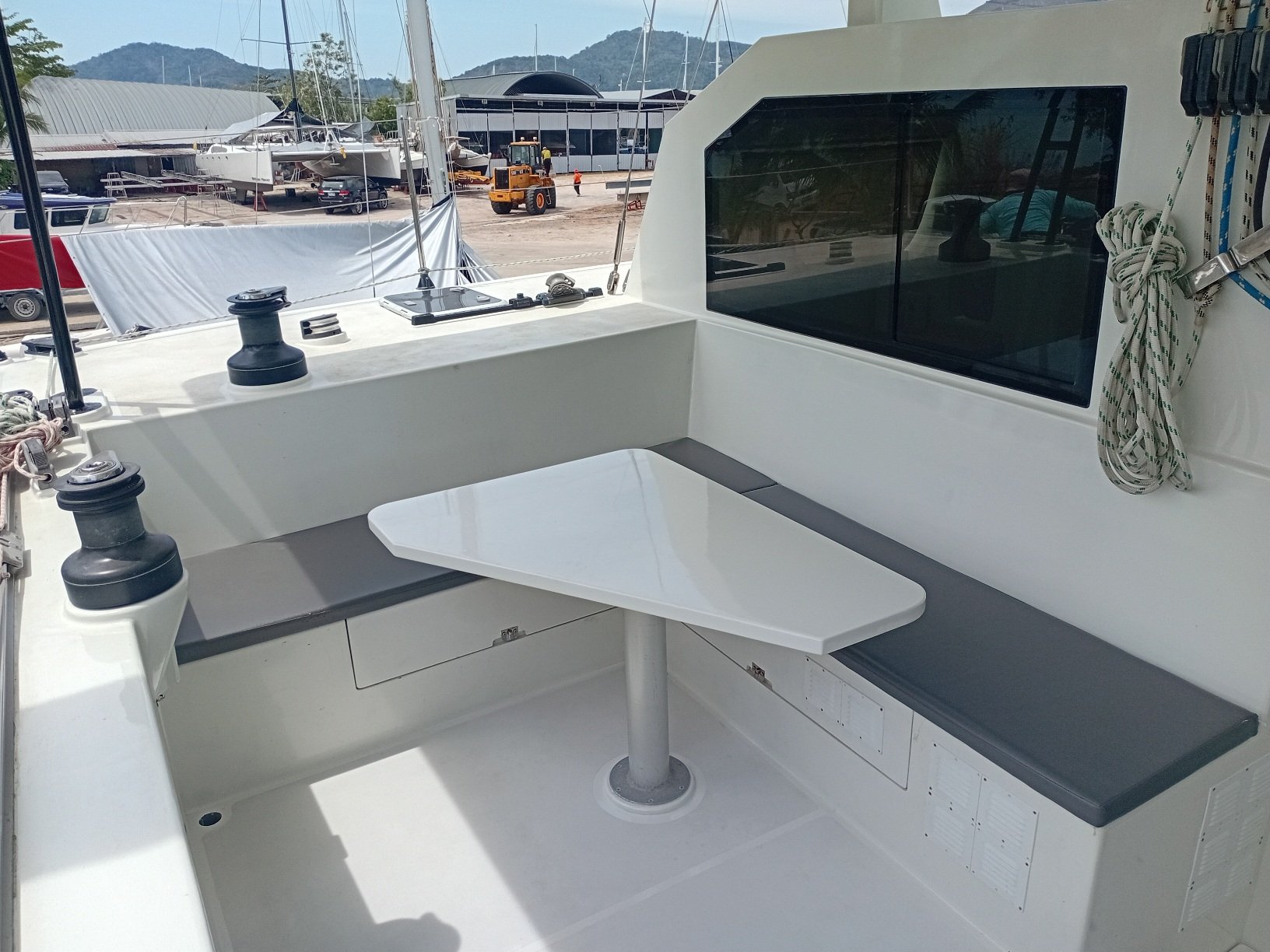

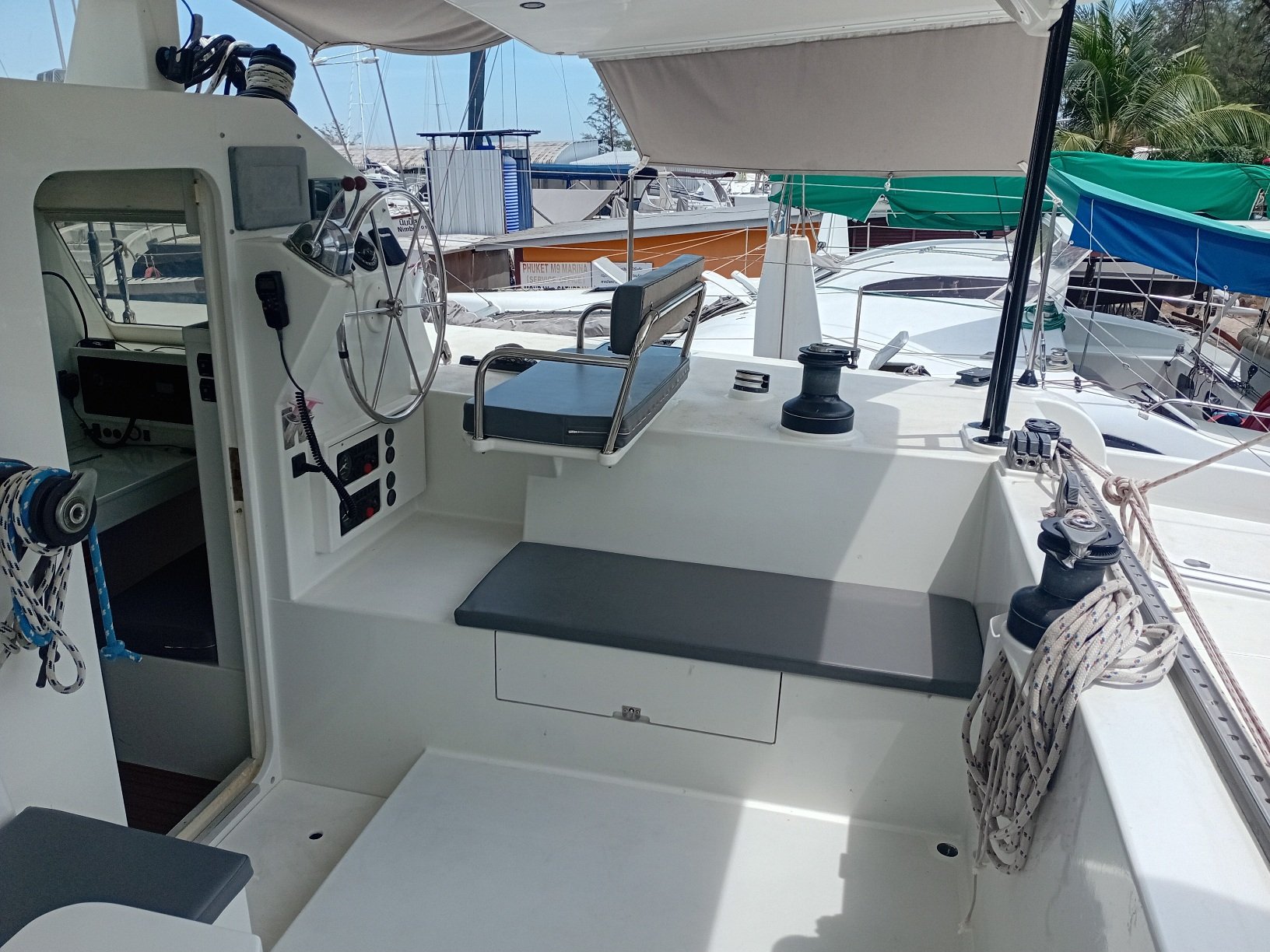

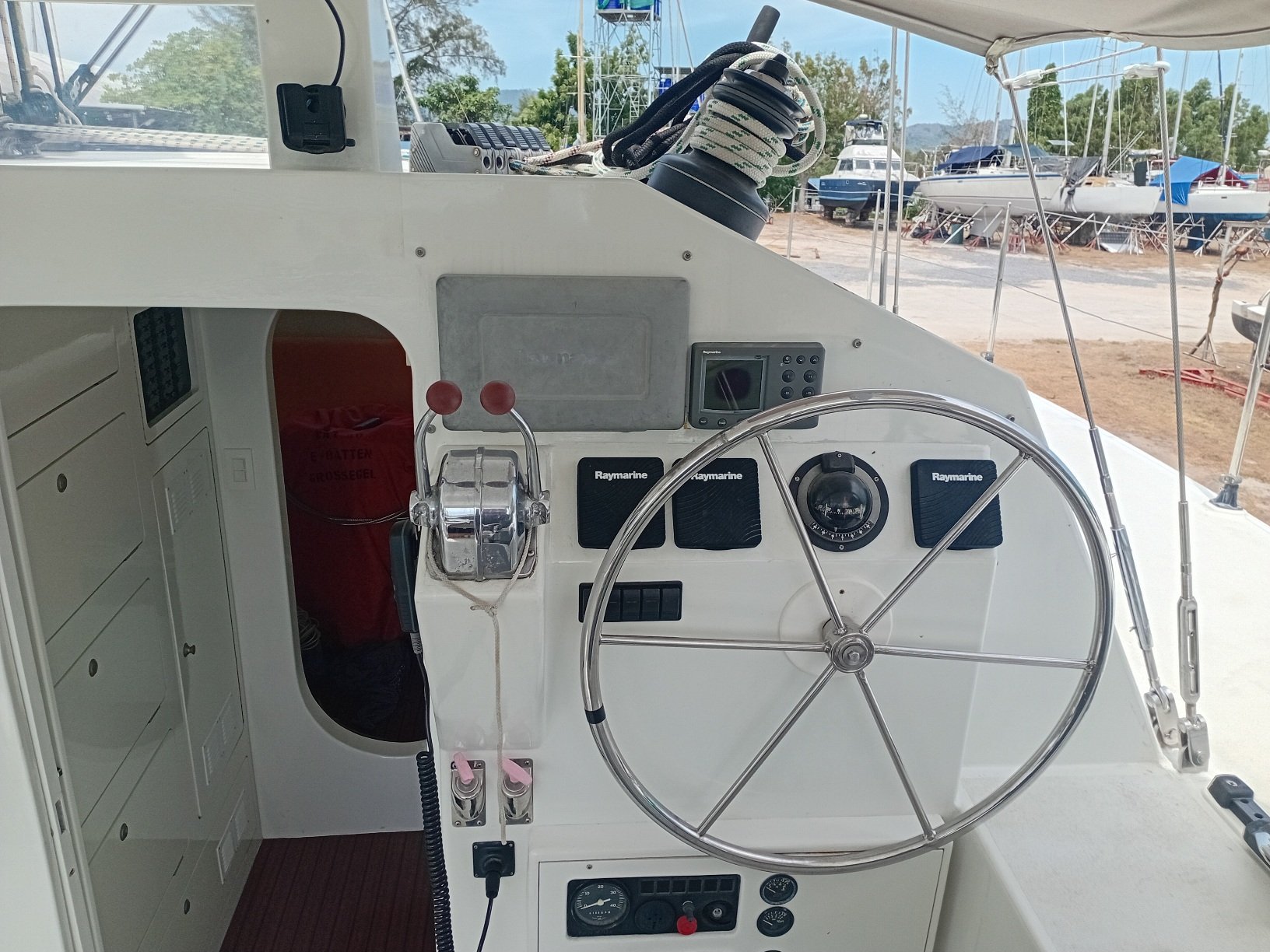

Cockpit
- Bridgedeck wide cockpit with 2 storage lockers,1 Battery locker
- 1 Gas bottle locker
- Table

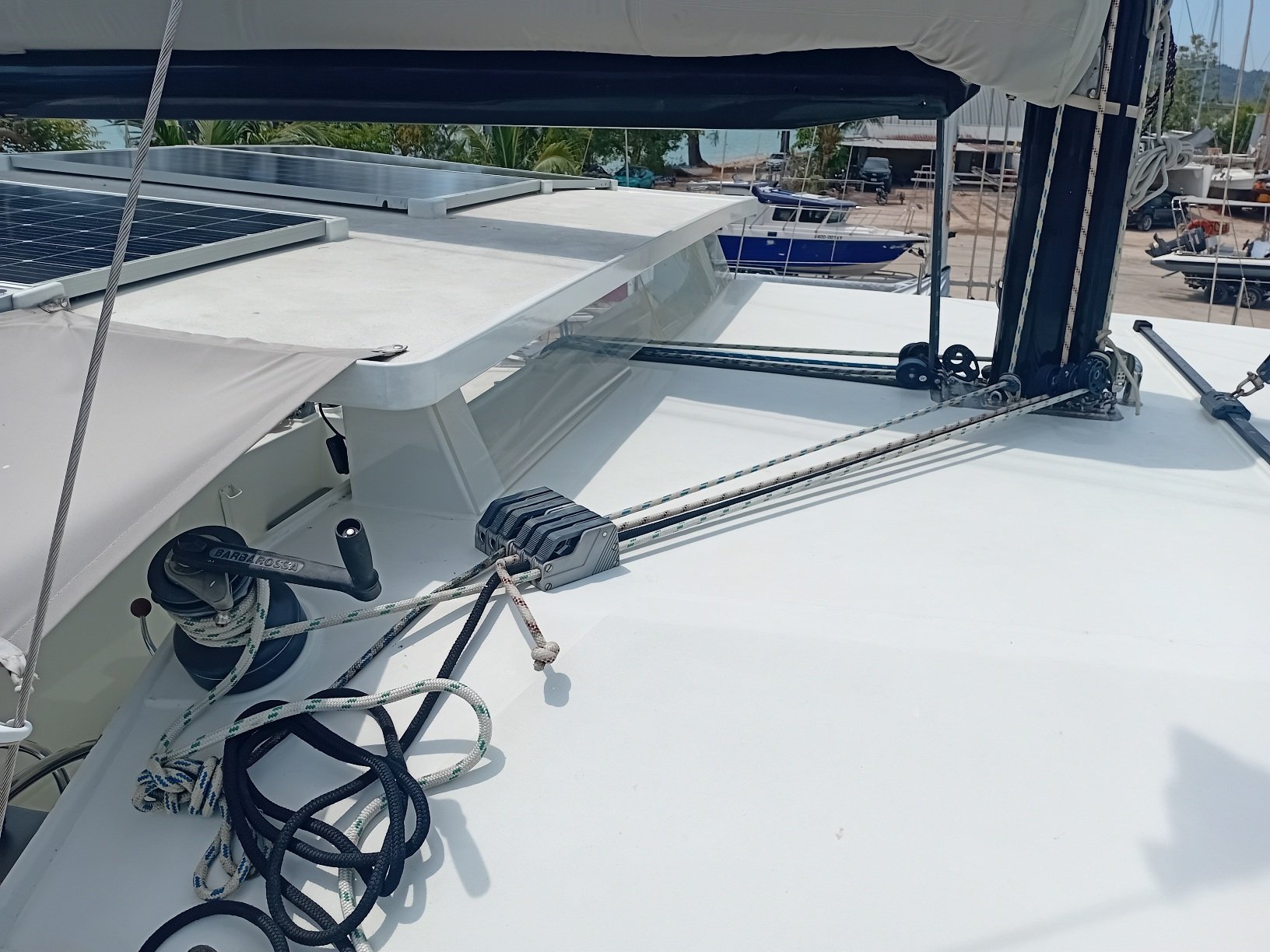

- Sheets and halyards led back to cockpit thru clutches
- 53.3 Barbarossa, Harken winch each side.
- 2×42 Harken winch for mainsheet
- 1x42 Harken on roof for halyards
- 1x42 Harken on wall for reefs
- Cushions for settees

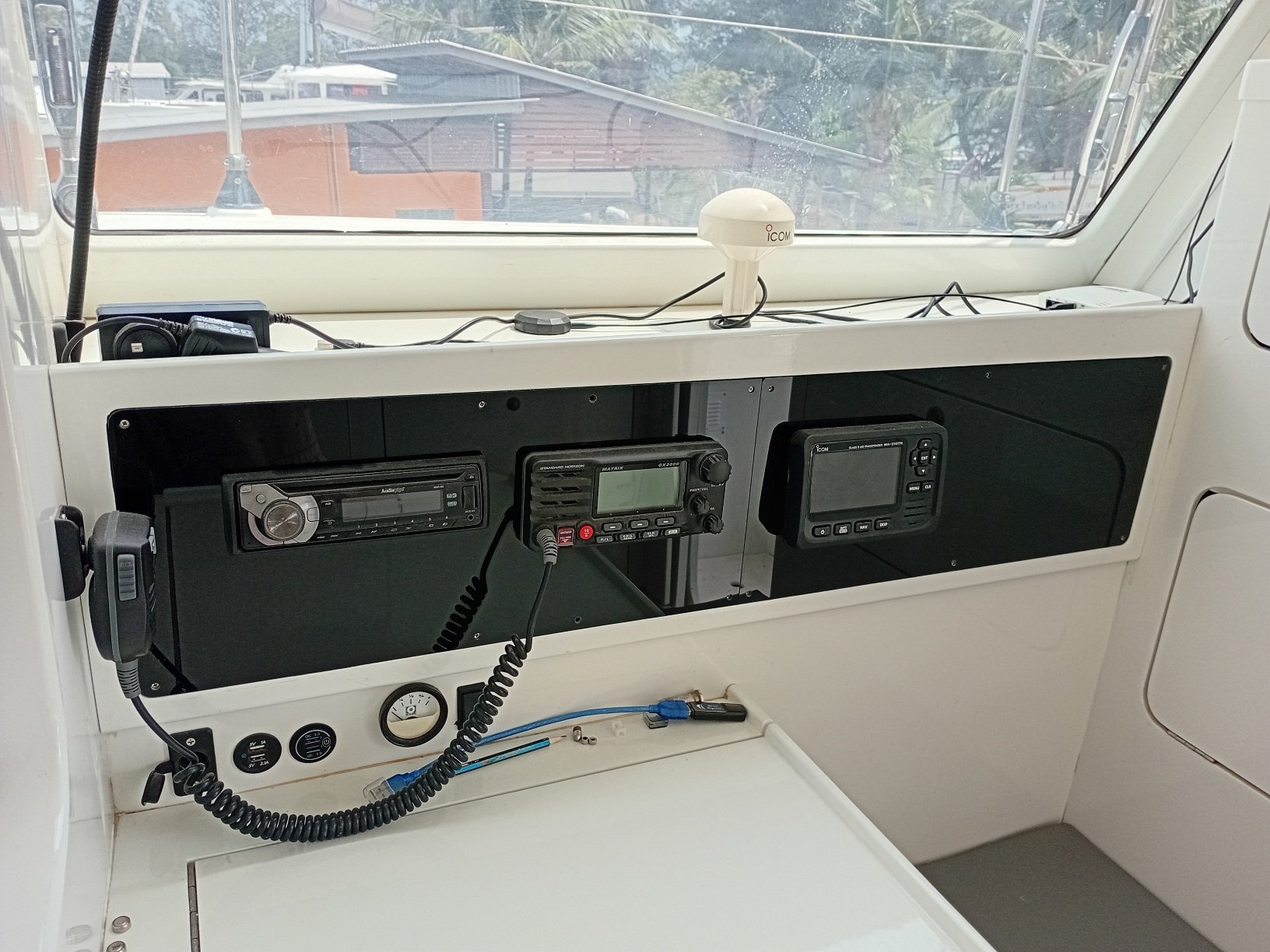

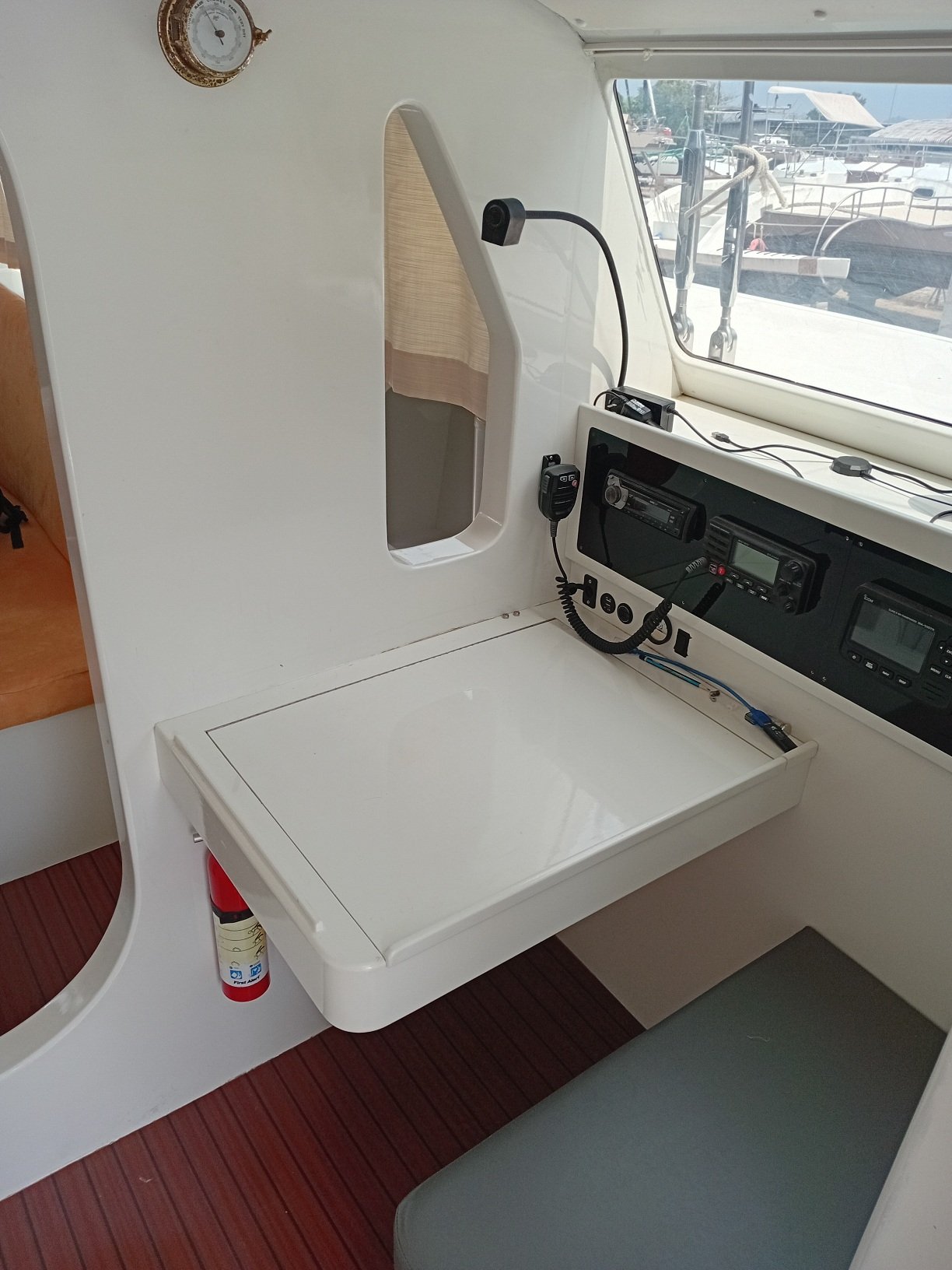

Electronics
- Standard Horizon QX 2000 VHF with extra mic
- Epirb Acr global fix V4 with gps
- Ais Icom MA-510TR
- Windinstr. Raymarine ST70
- Autopilot Raymarine 400 G AST

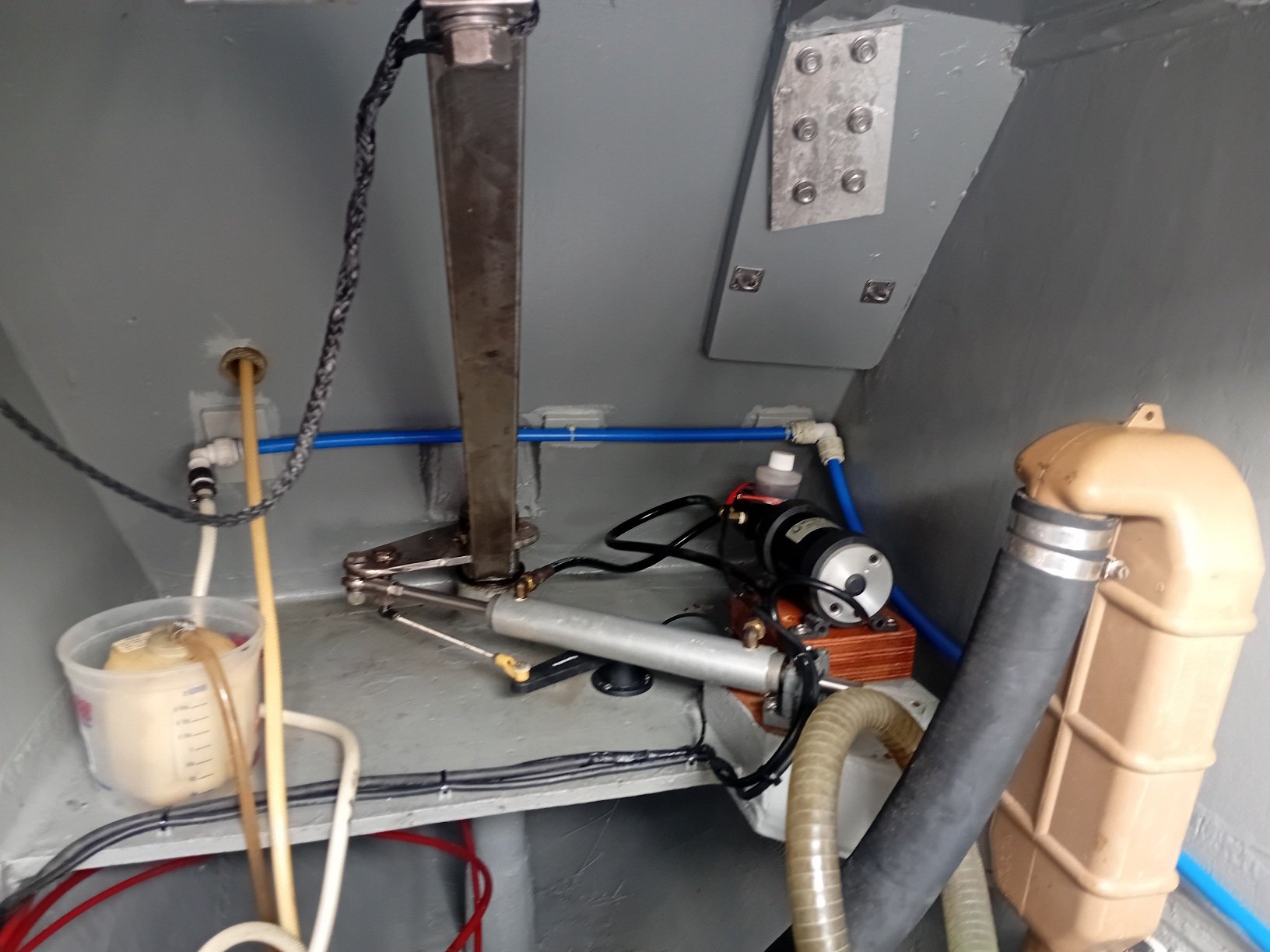

- Hydraulic ram Octopus 2 yo
- Chartplotter Raymarine C90
- Sat phone Iridium 9555 with optimizer and extra battery
- Stereo Audiopipe with inside/ outside speakers
- Samsung Led TV

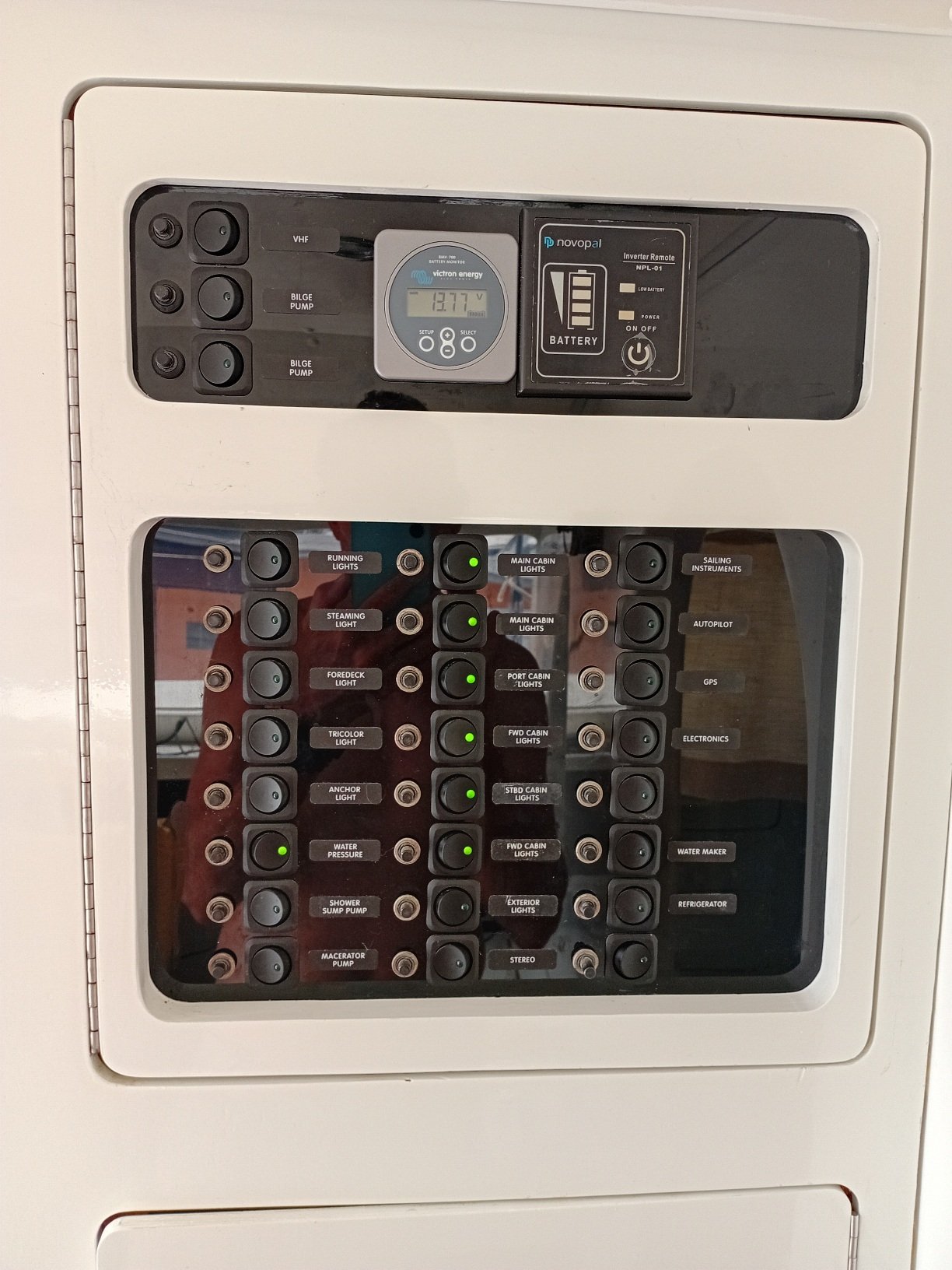

Electrical
- Solar regulator Outback 80 A
- Battery charger Victron 30 A

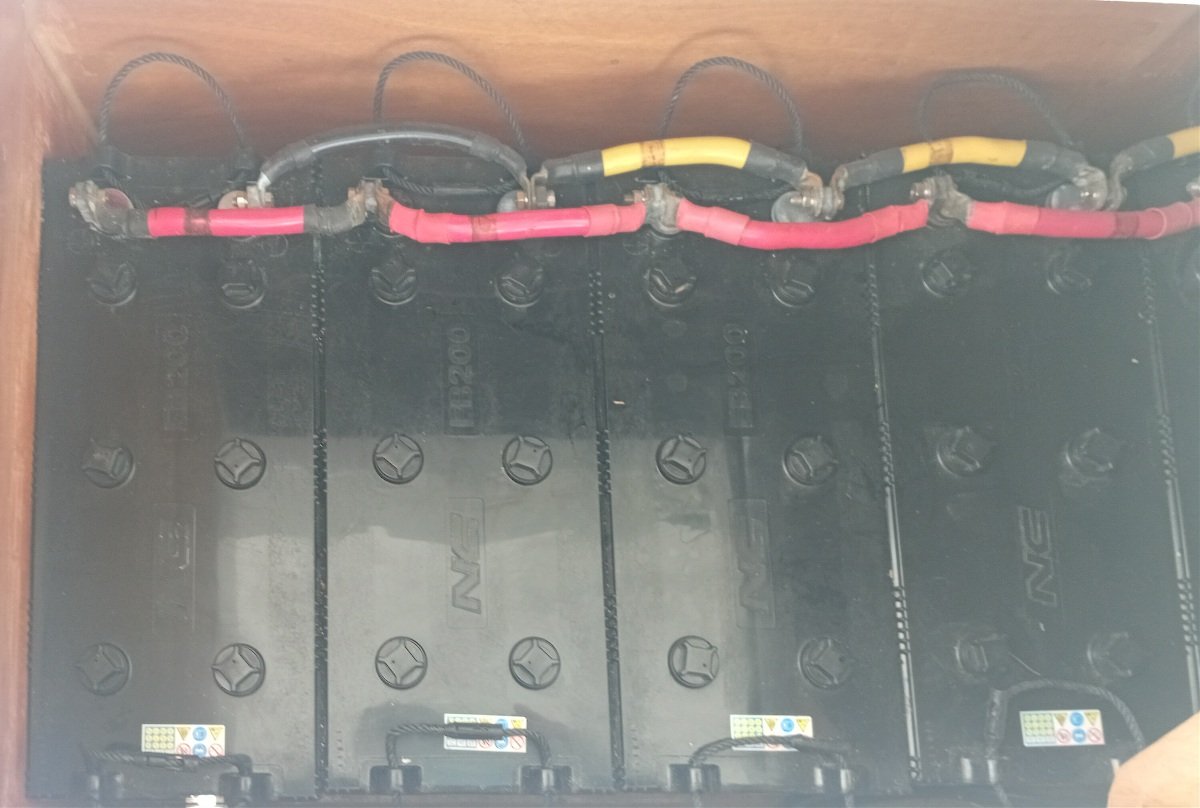

- 5x180A Lead Acid batteries, new 2024
- Battery monitor Victron
- Generator Honda 2KW
- Inverter 12/110V Novapal 2KW

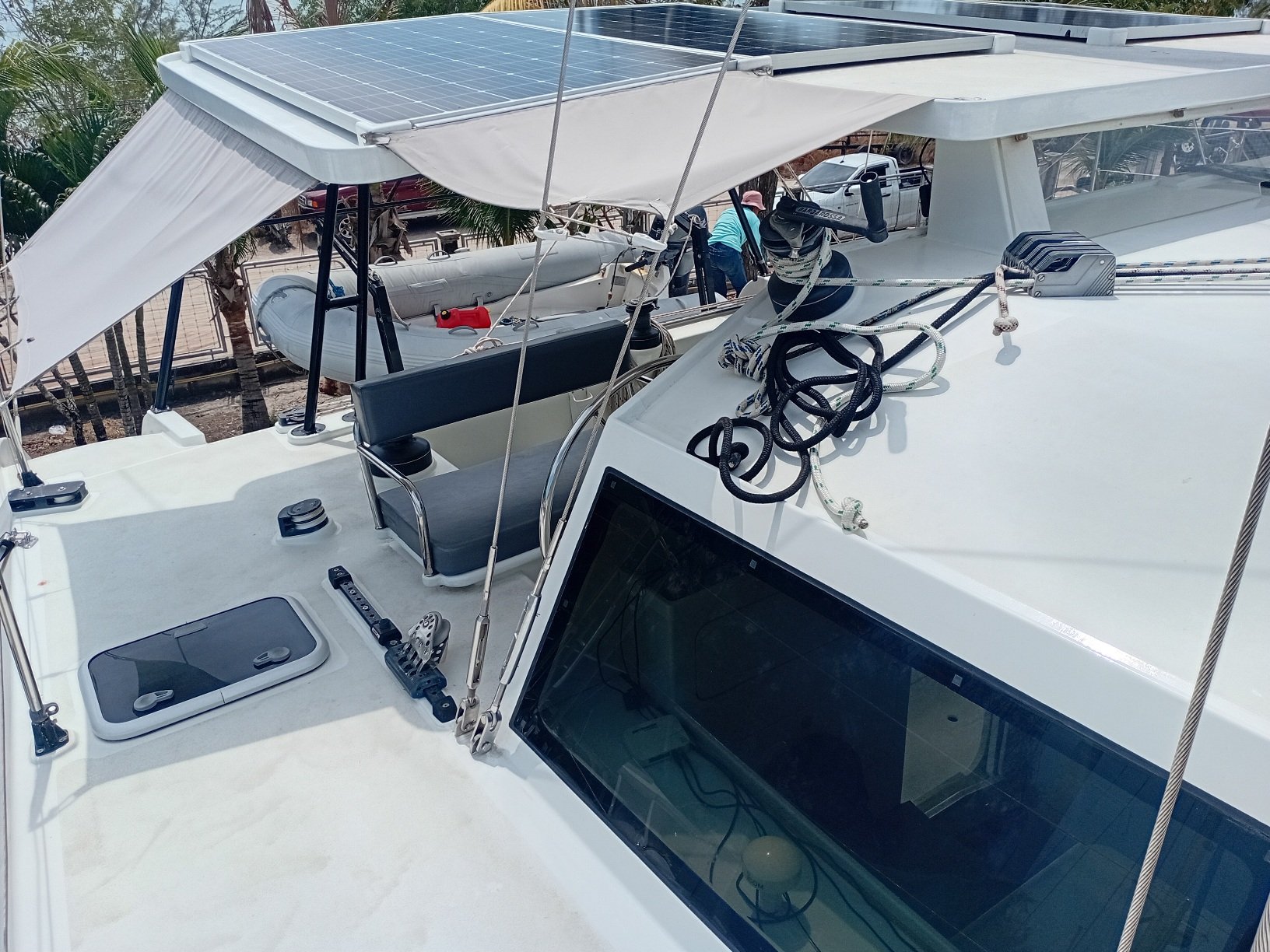

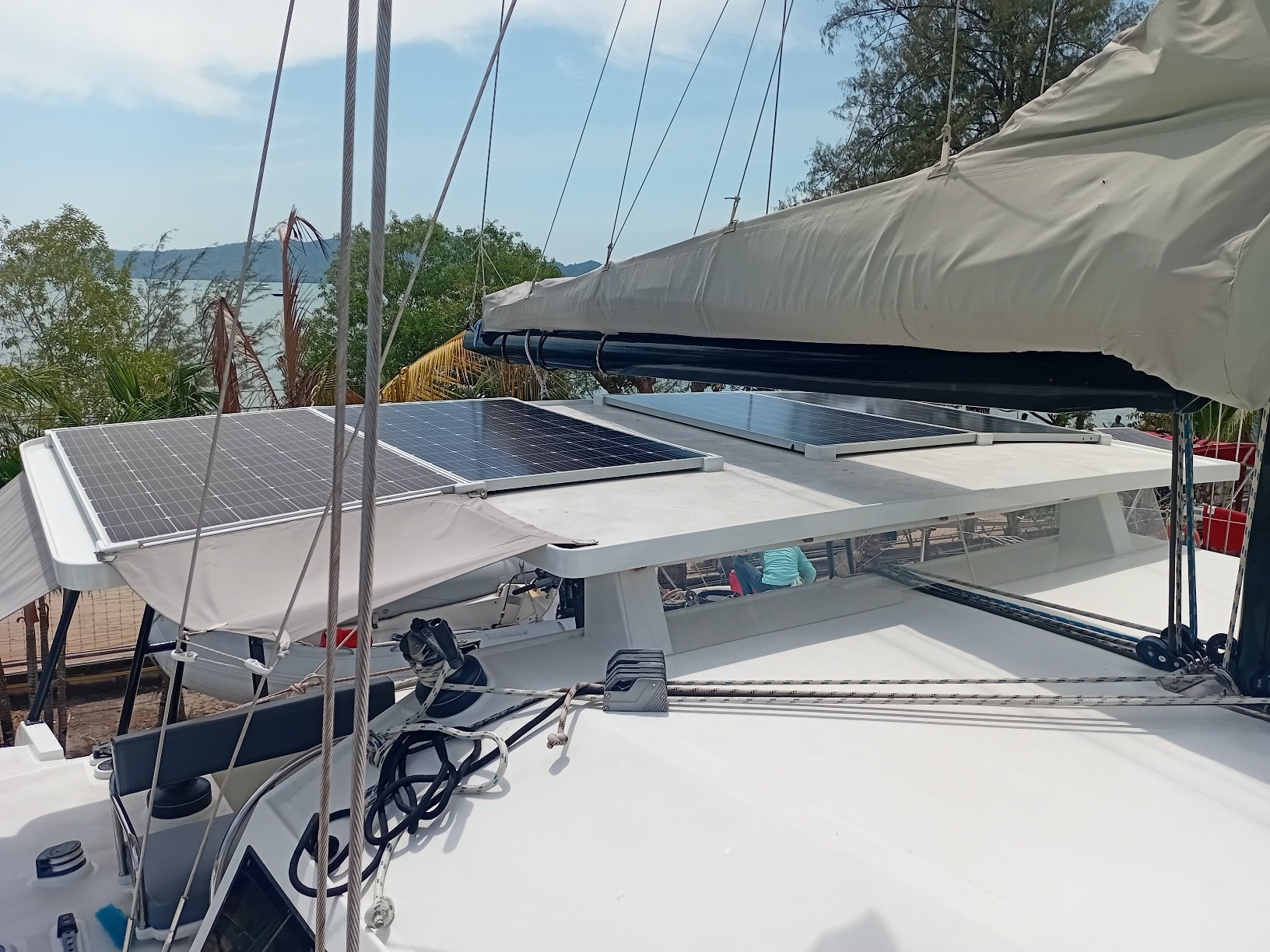

- Solar panels 1600W

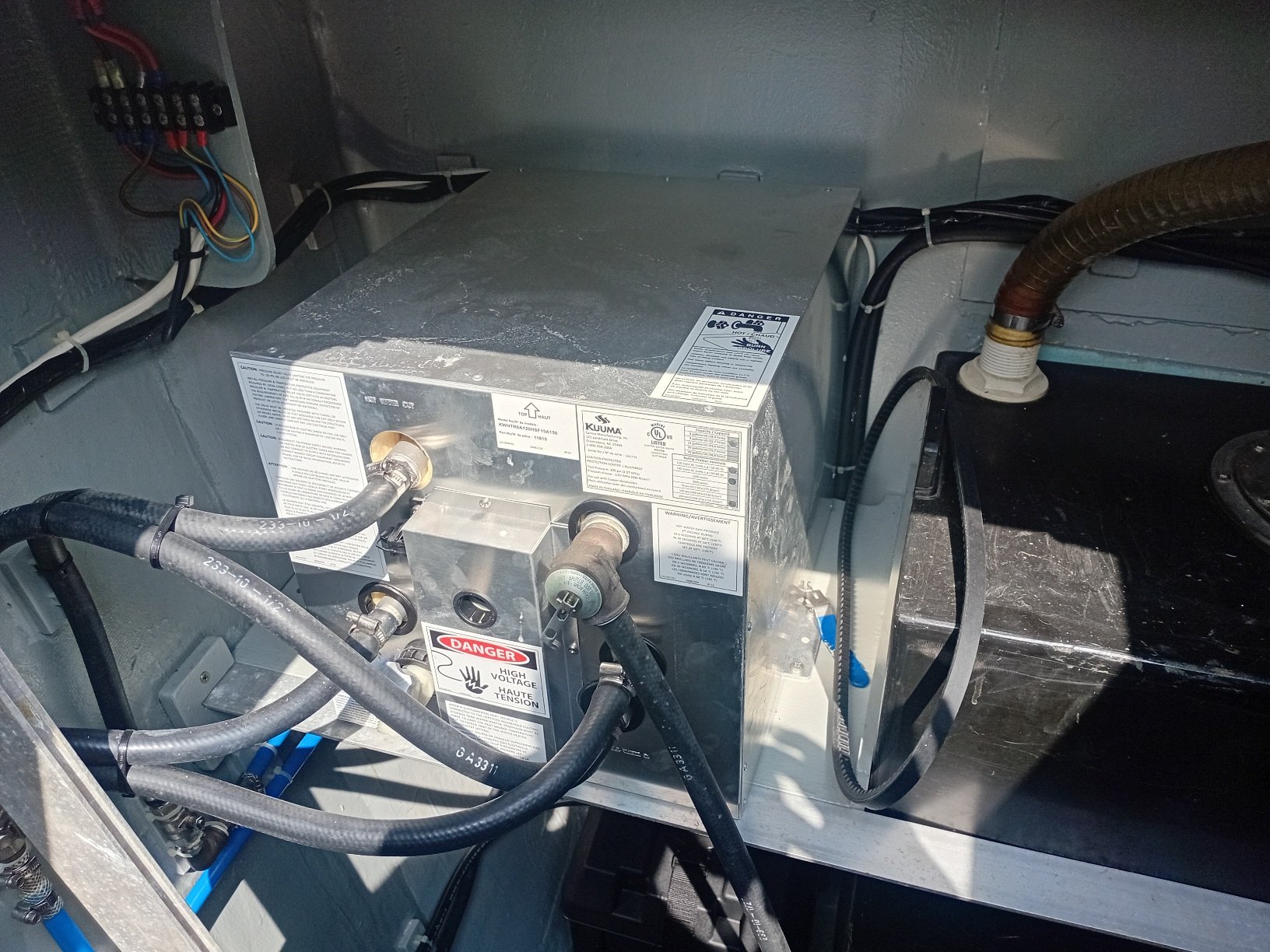

- 5gal water heater

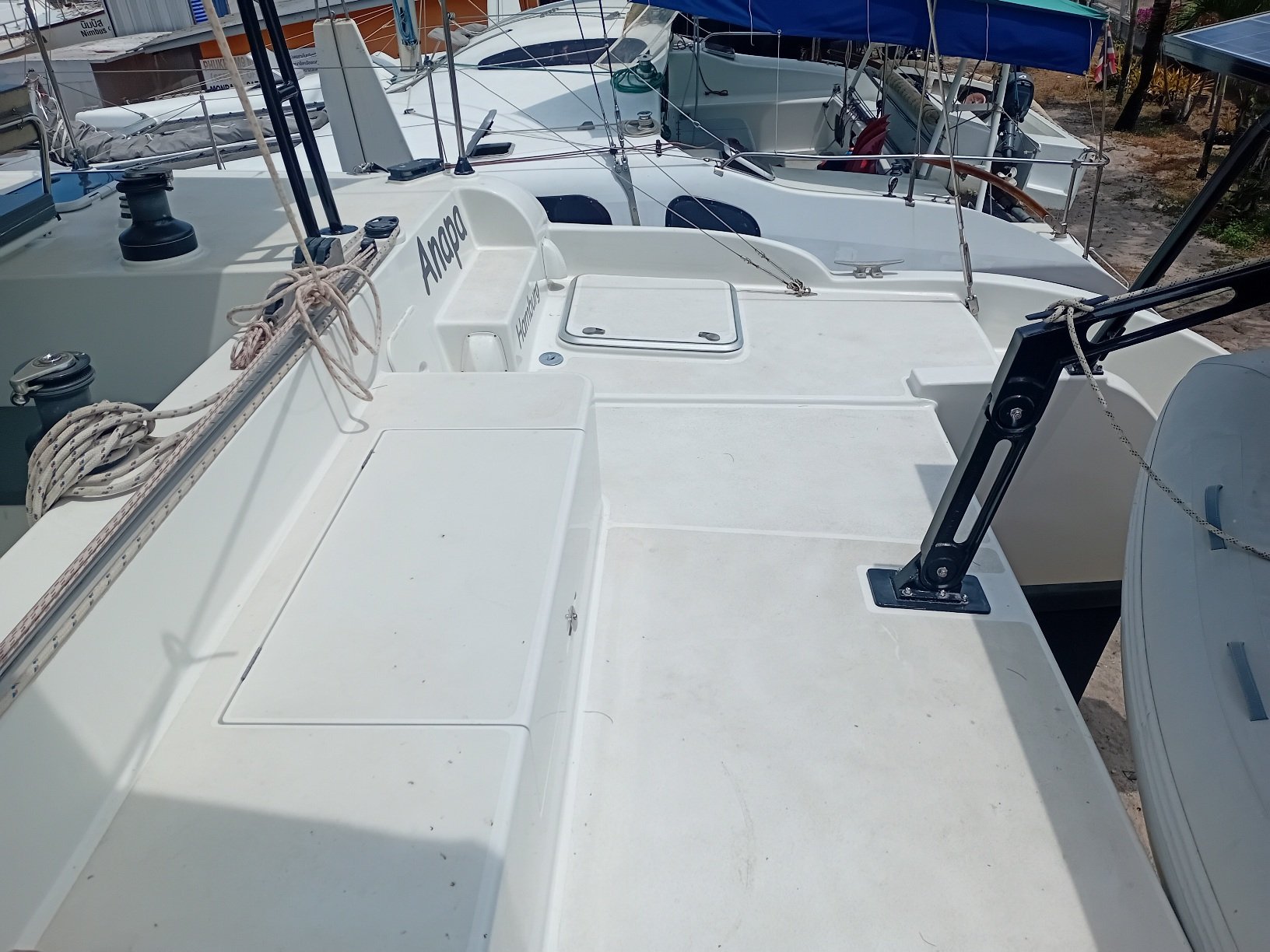

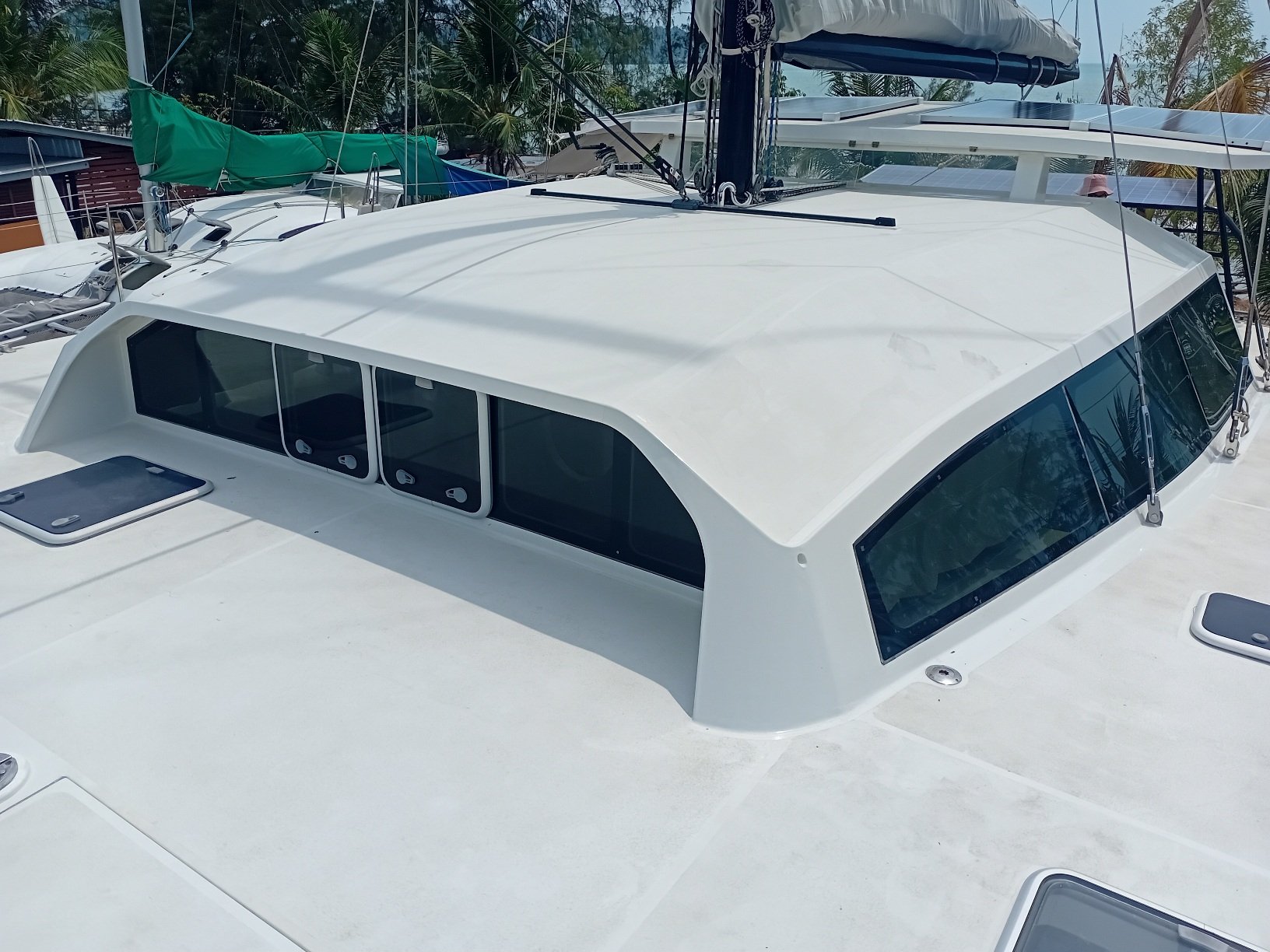

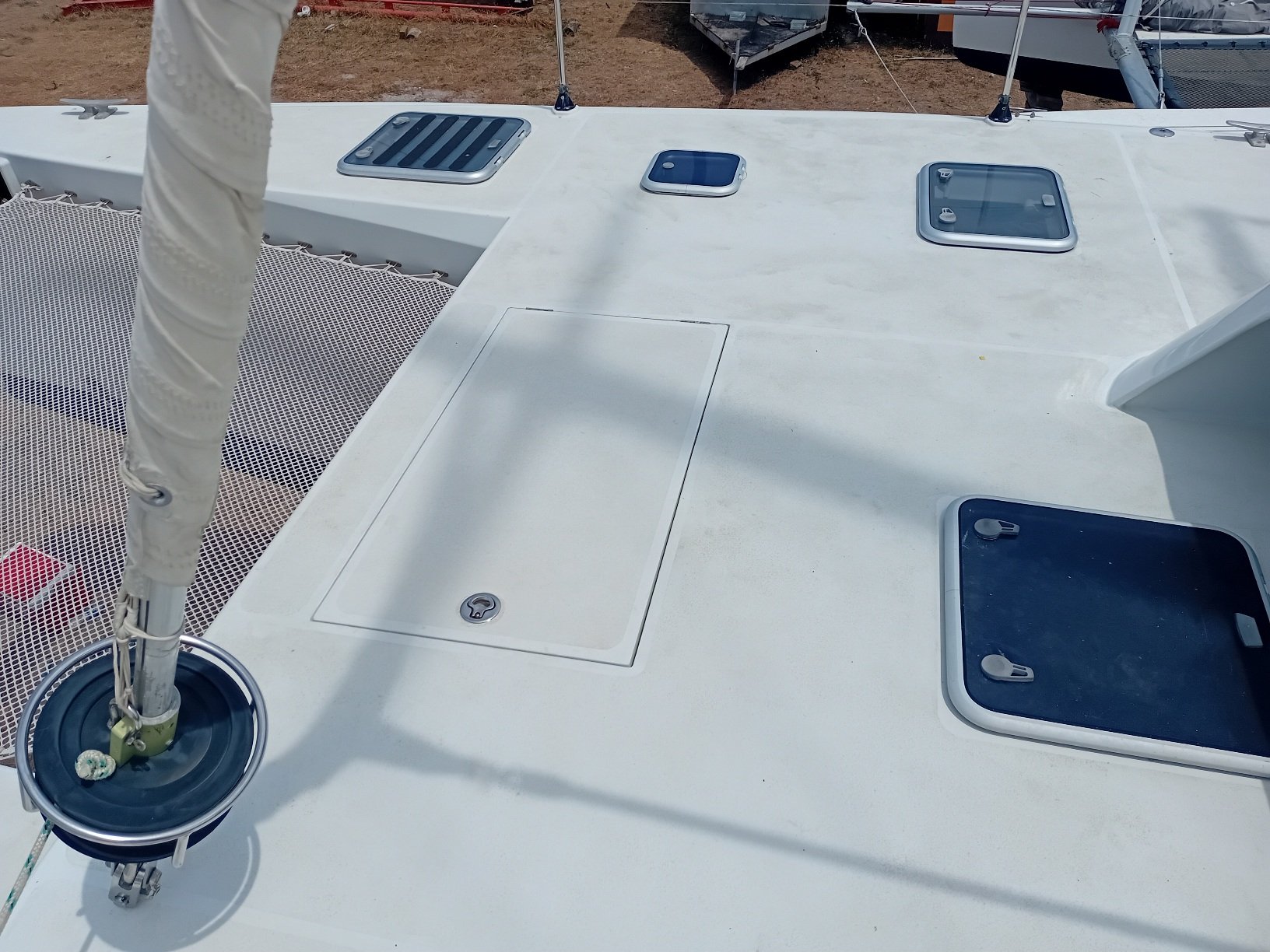

Deck & Hull

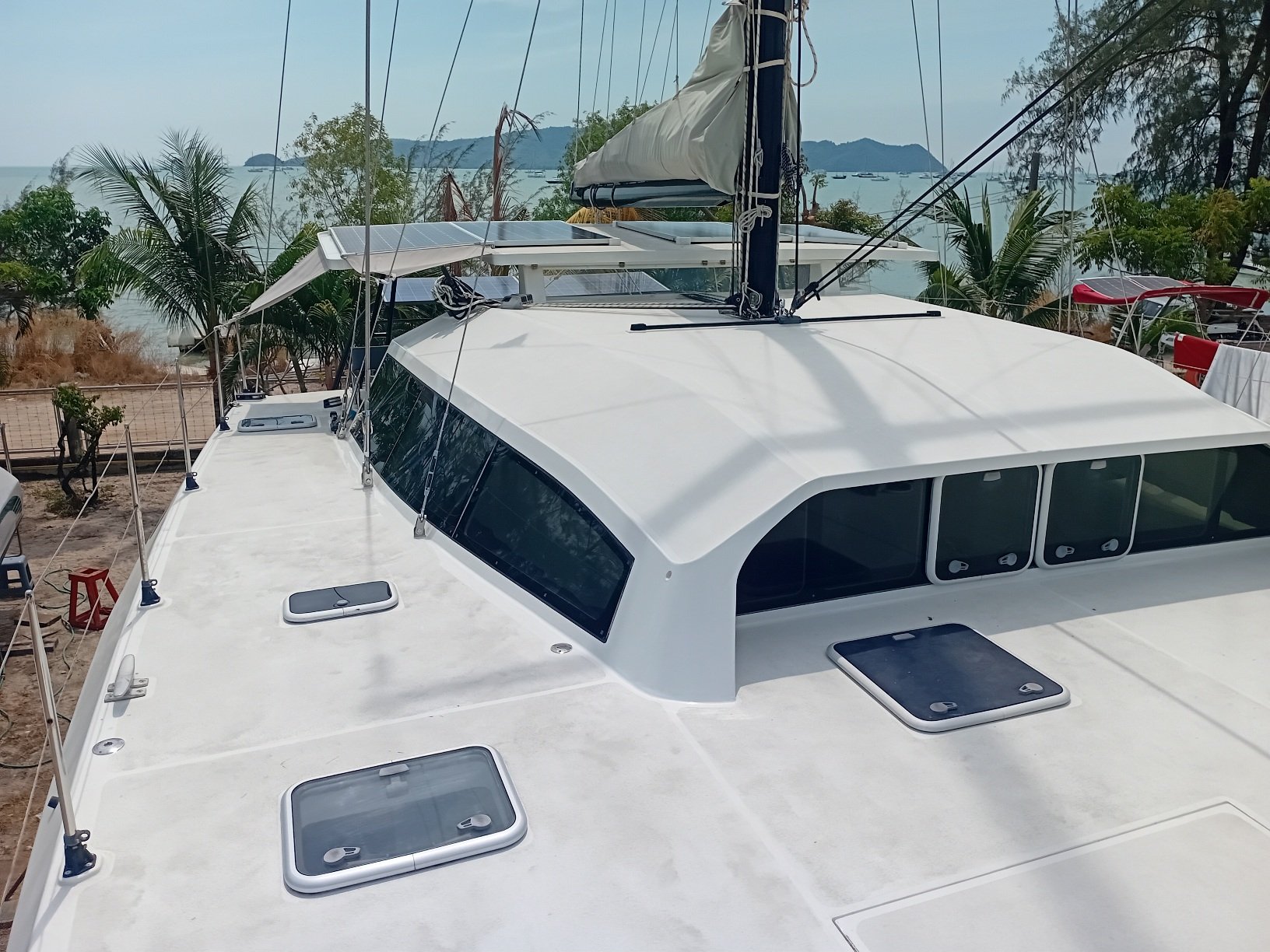

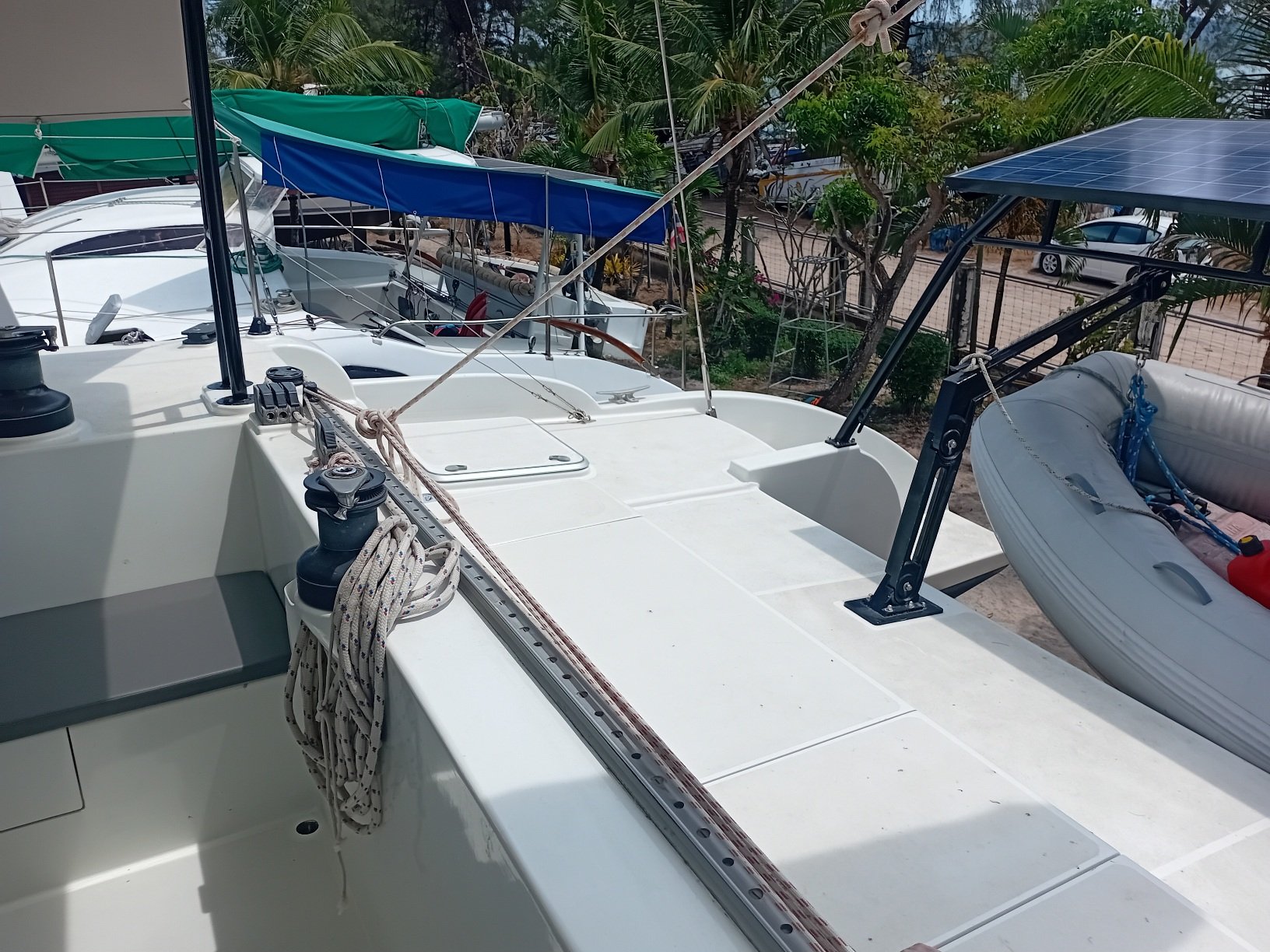

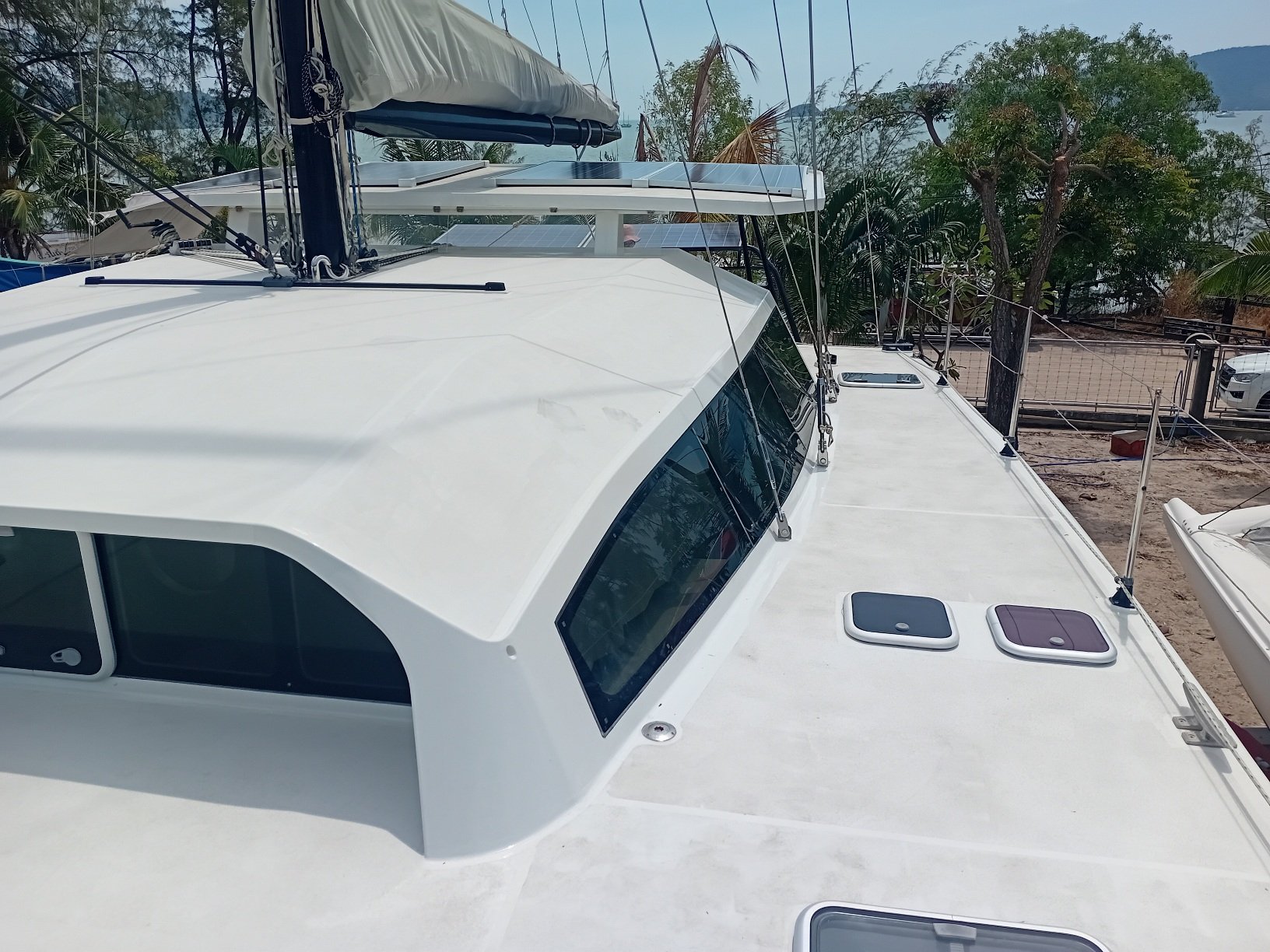

- Full walk around flat deck
- Anchor and storage locker in front
- Separate storage locker for watermaker etc in front of deck salon
- Big sail lockers on both sides at front
- Ss-stanchions with ss-lifelines
- 10 Lewmar opening hatches
Sails & Rigging
- Mainsail dacron 40 sqm, 6yo,Lee
- Jib 120%,dacron. 10yo
- Jib 120% composite 10yo
- Self tacking Jib 30sqm 6yo,Lee
- Asymmetrical Spi 120qm with snuffer
- All sails in good condition.
- Slup mast head rigg.

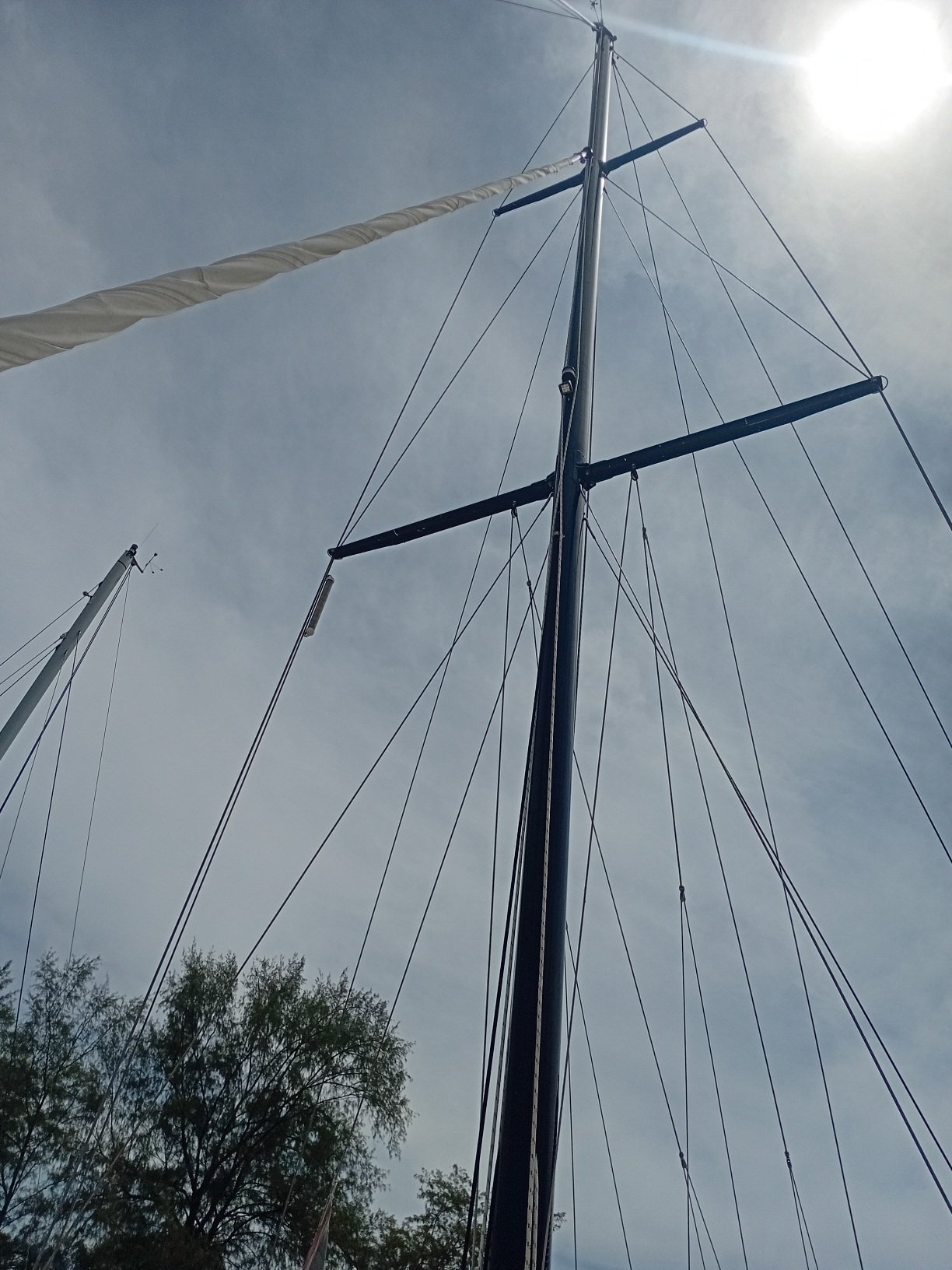

- Bomar mast 60 ft with 2 straight spreaders.
- 12,10 and 8 mm rigging wire. replaced 2020

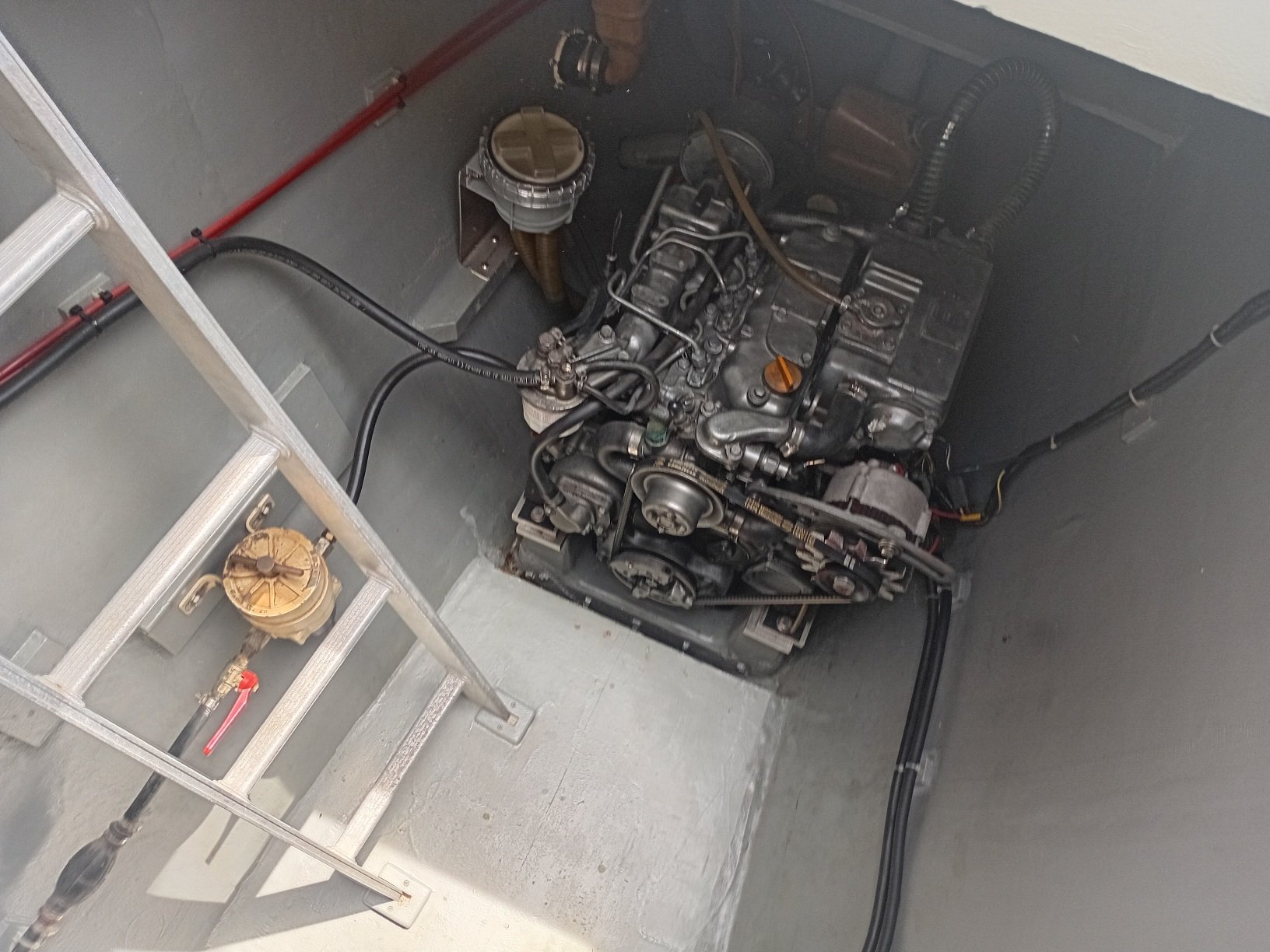

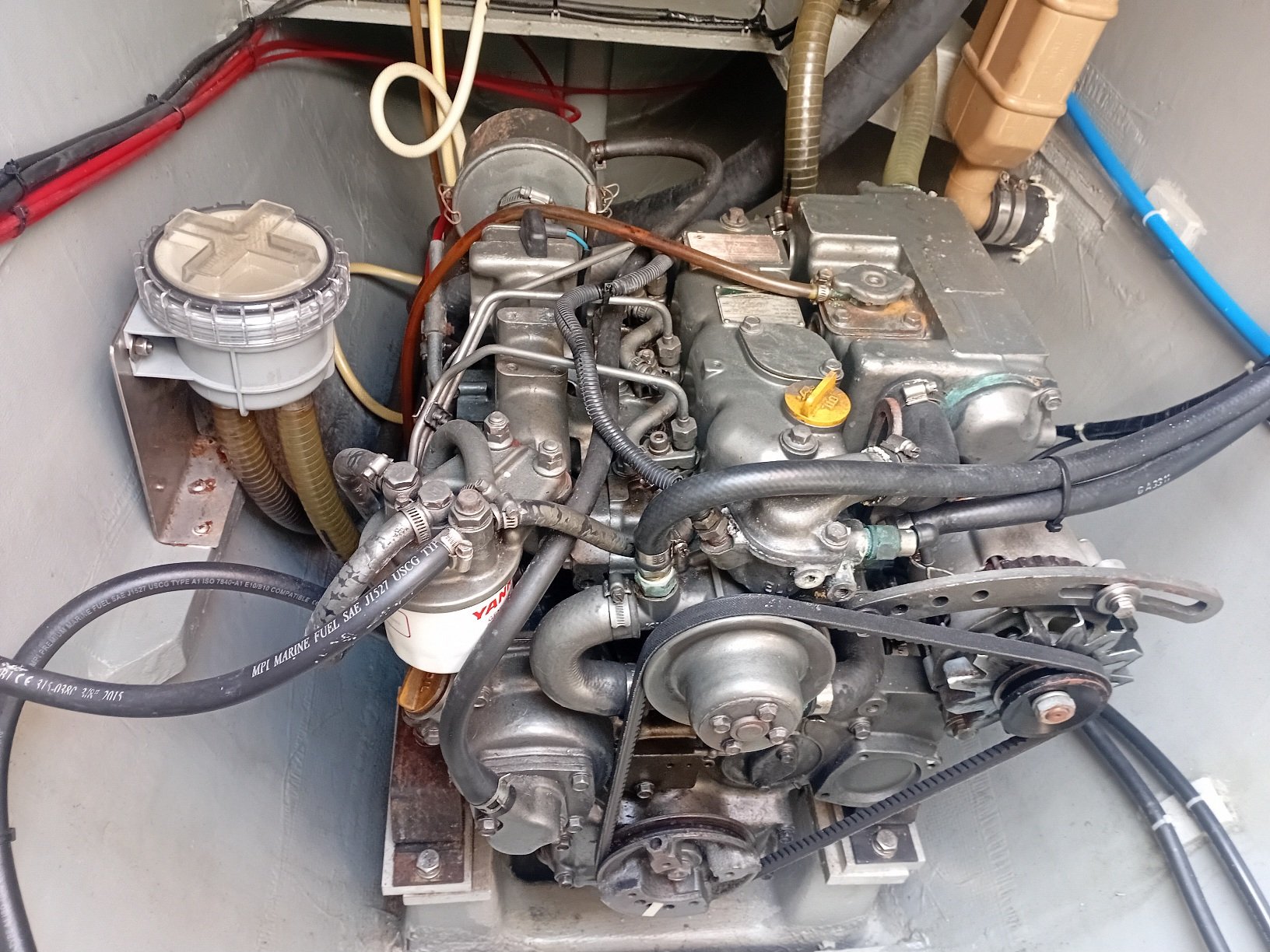

Engines & Mechanical
- Separate engine rooms aft
- Yanmar 3HJ2CE, 39HP, 2000hrs after refit
- Yanmar 3JH3E, 39HP, 2000hrs after refit
- SD31 sail drives
- 60A alternators

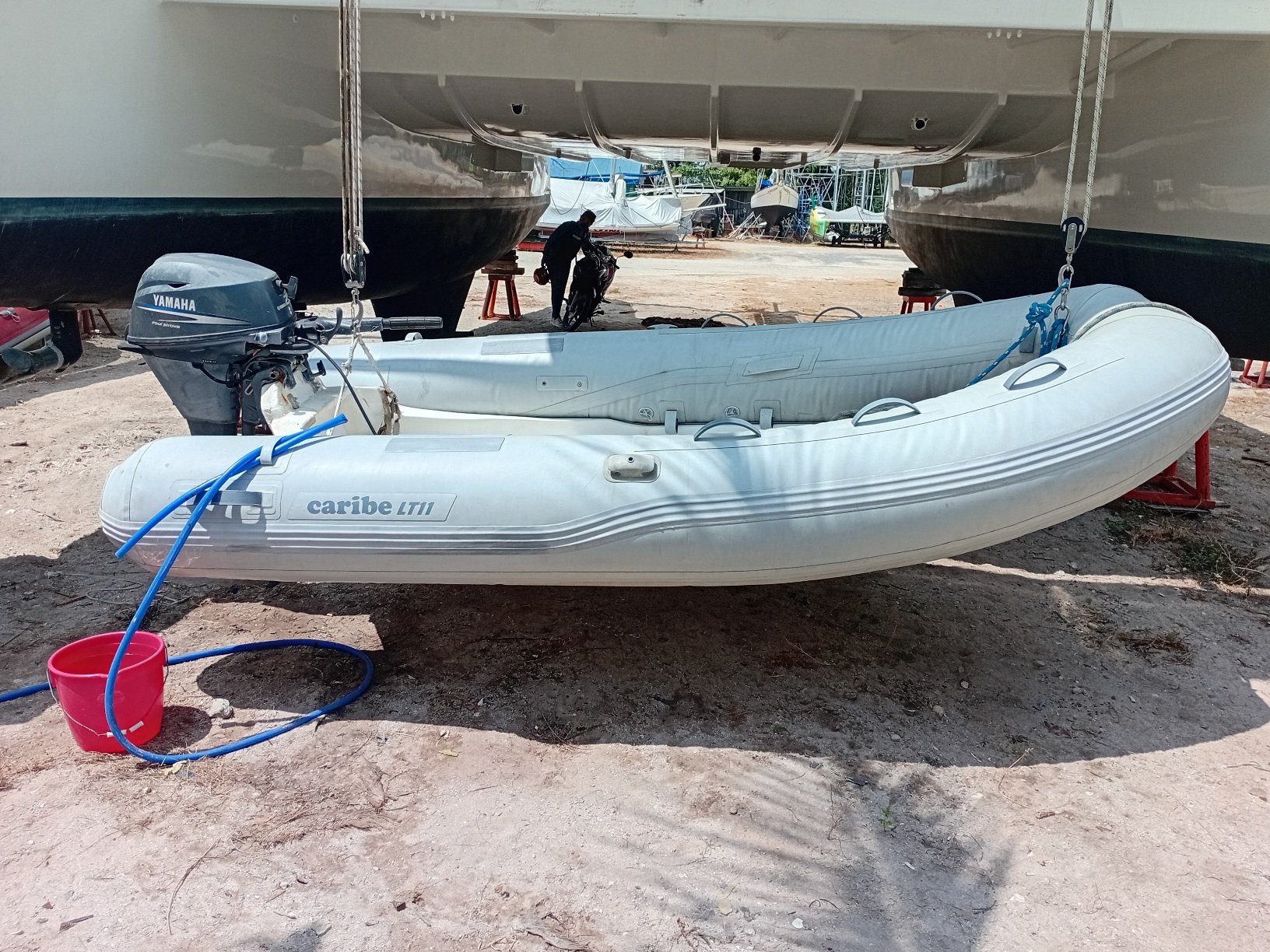

Tender
- CARIBE light 11.5. 1,5yo
- 20 hp Yamaha four stroke
Navigation Equipment
- Handheld GPS
- Raymarine C90
- Compass
Safety
- Flares to Standard
- Lifesling

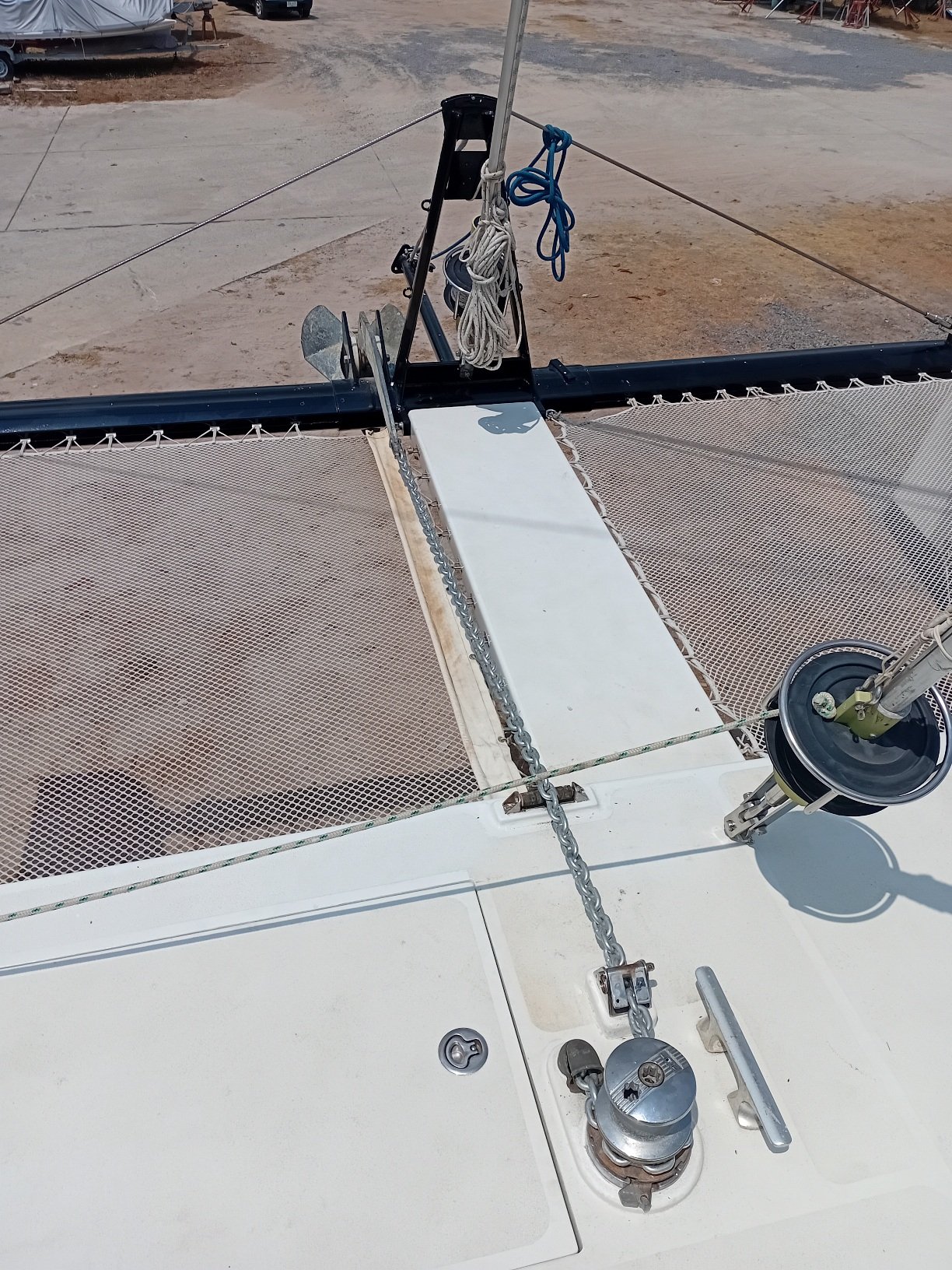

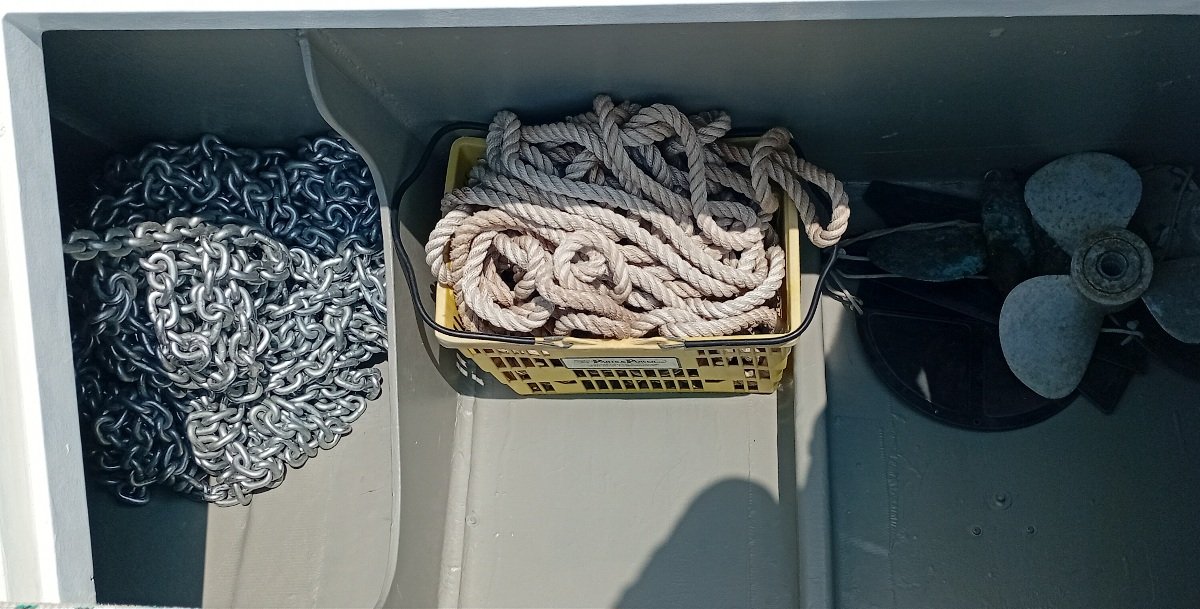

Anchor & Docking
- 1200W simpson Lawrenxe windlass
- 70m G43 chain new, unused.
- 35 kg Lewmar Delta anchor
- 30 kg CQR anchor
- 20m extra chain
- Lots of rope, lines
Miscellaneous

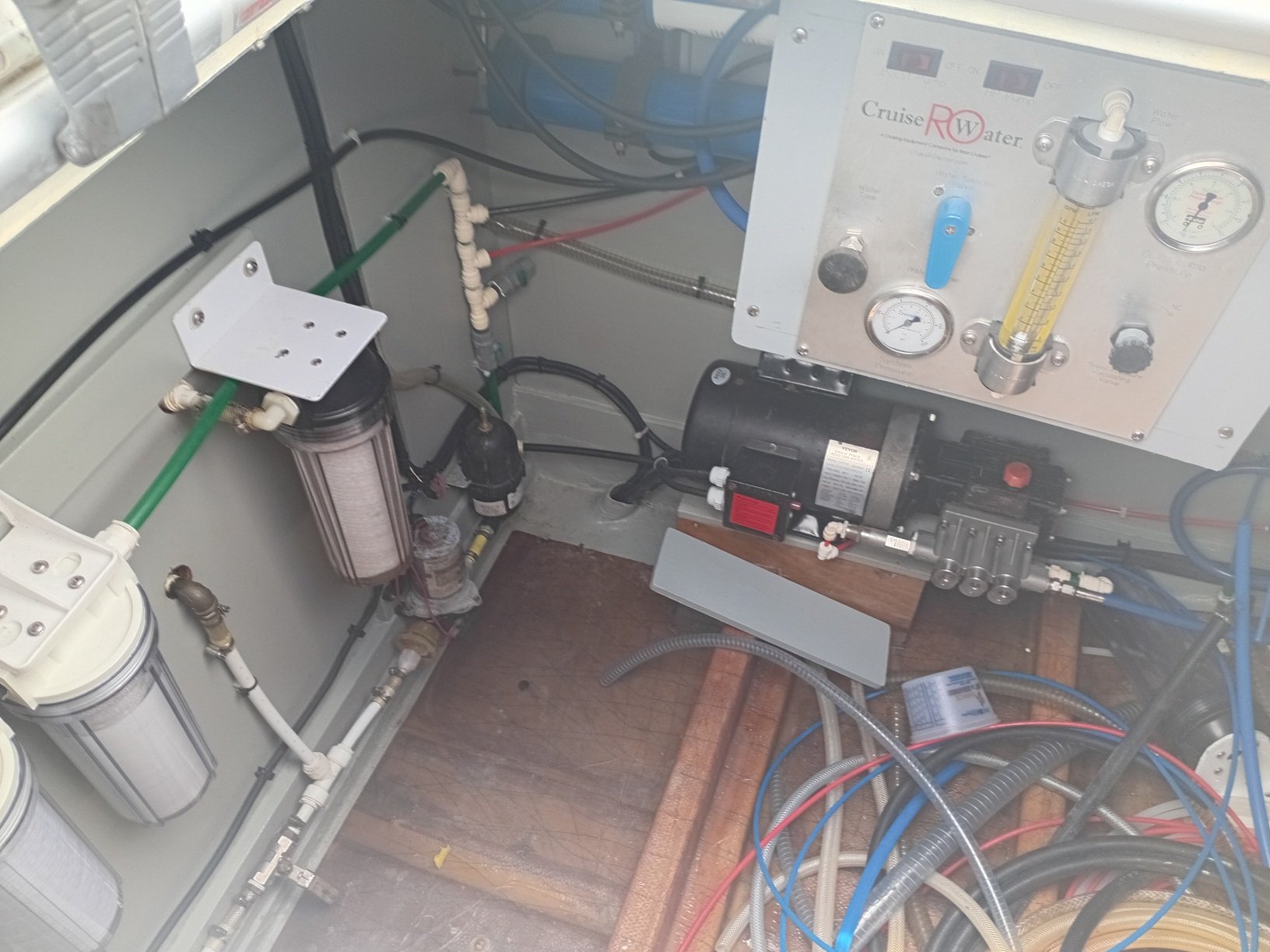

- Watermaker Cruise RO 28gal/100 ltr per hour run from generator
- Flexofold 3 blade folding props.
- 3 blade fixed props as spare
- Washing machine
- Sunshades
- Tools, machines, spares

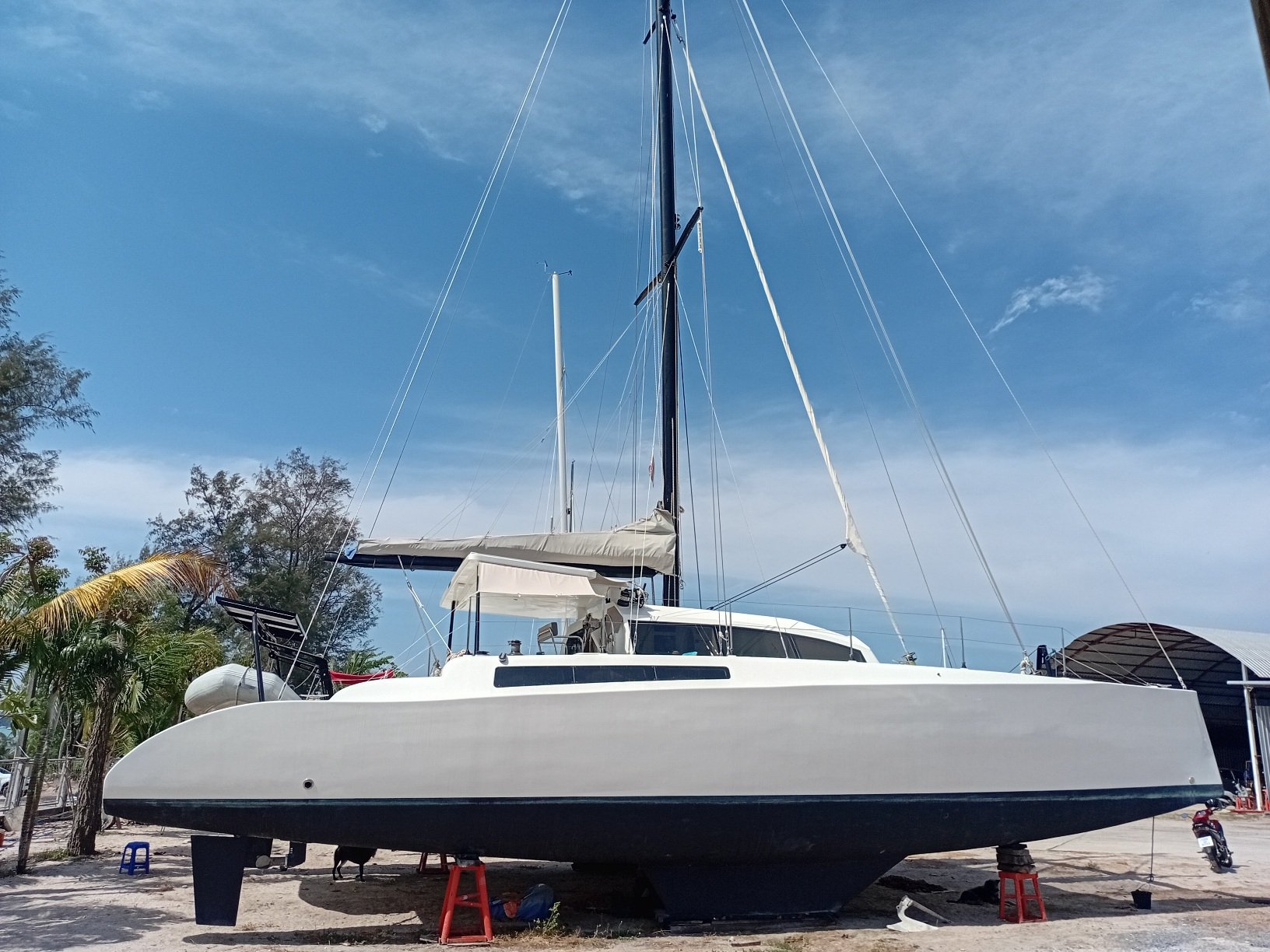

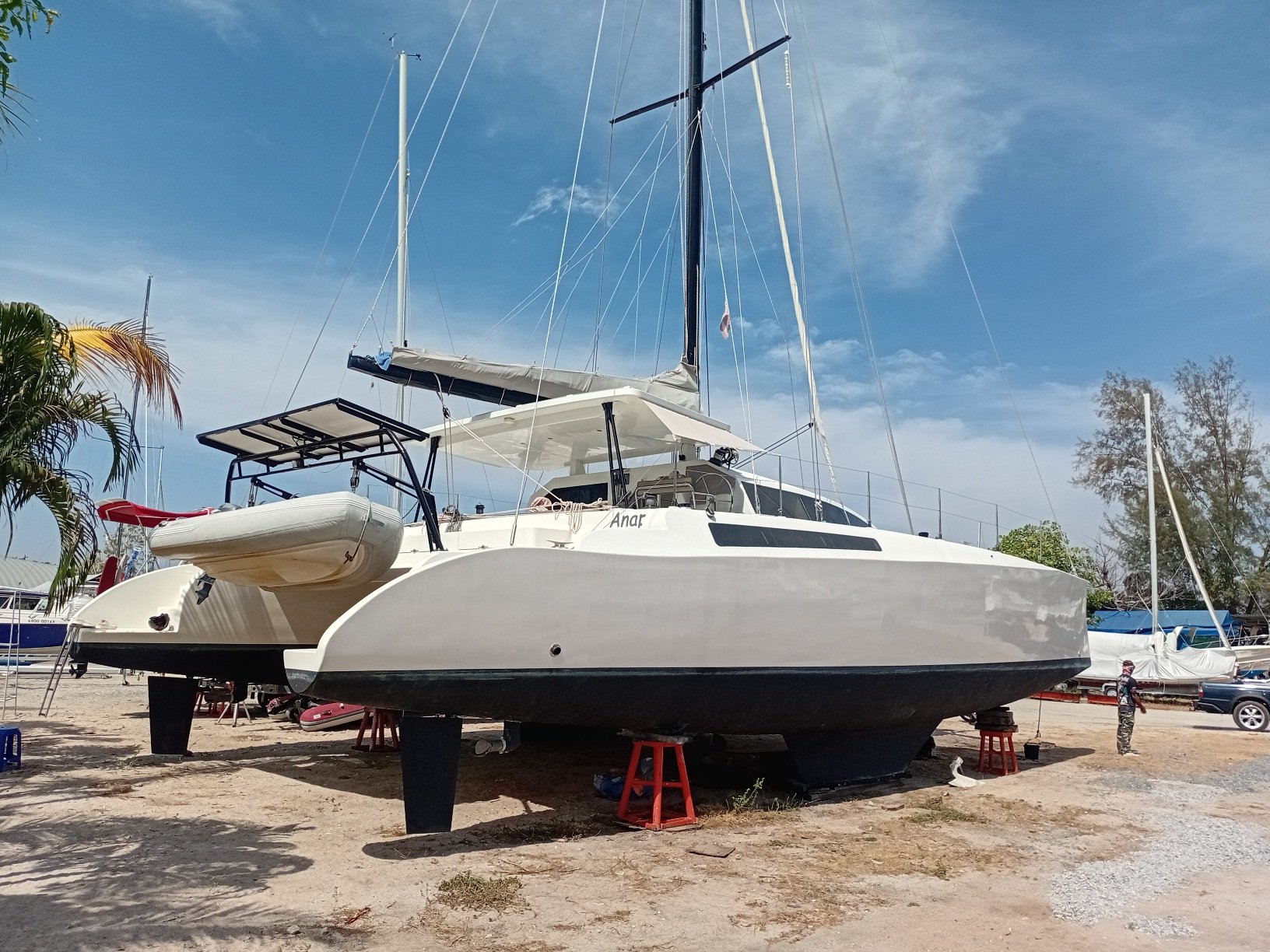

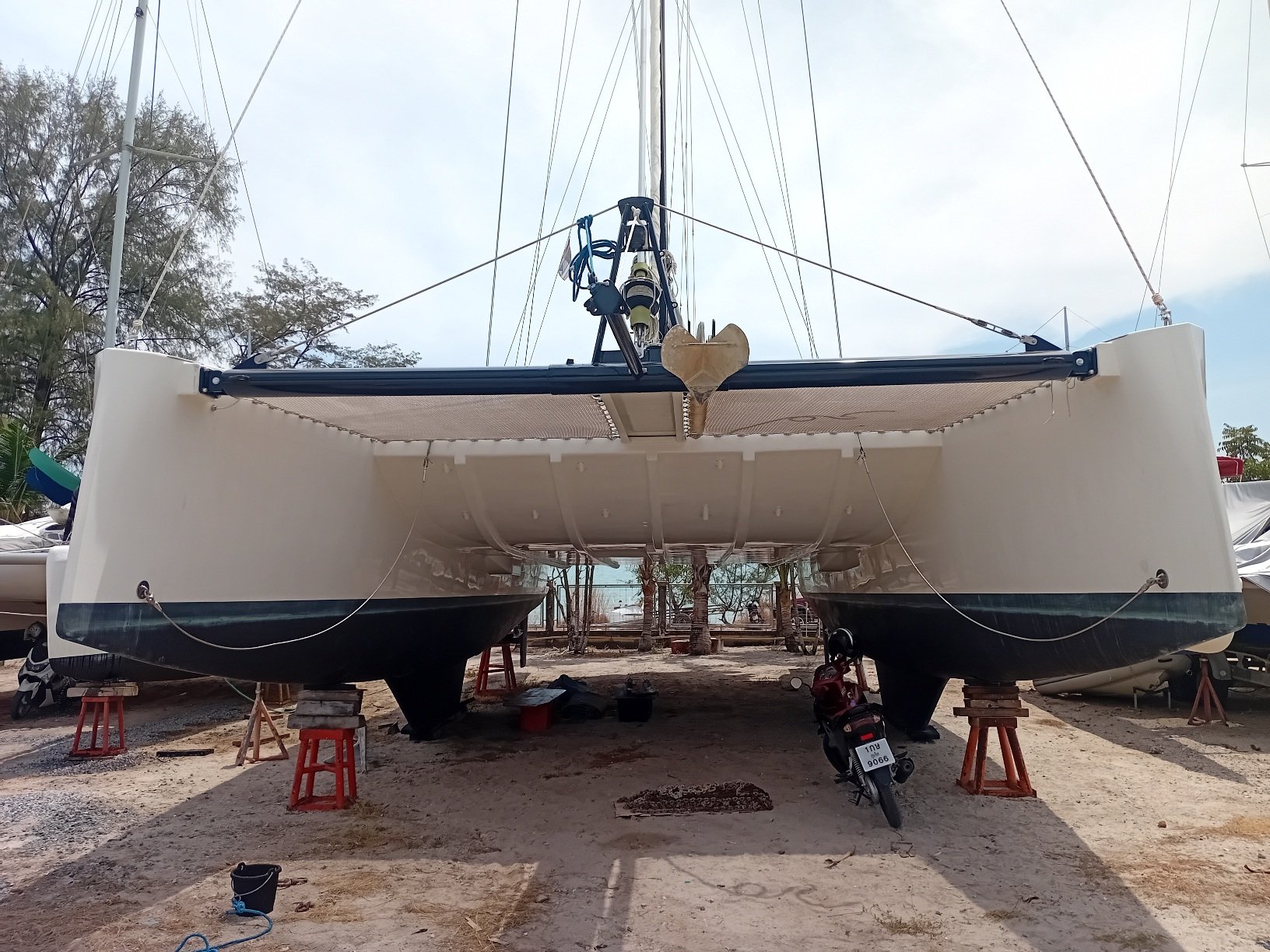

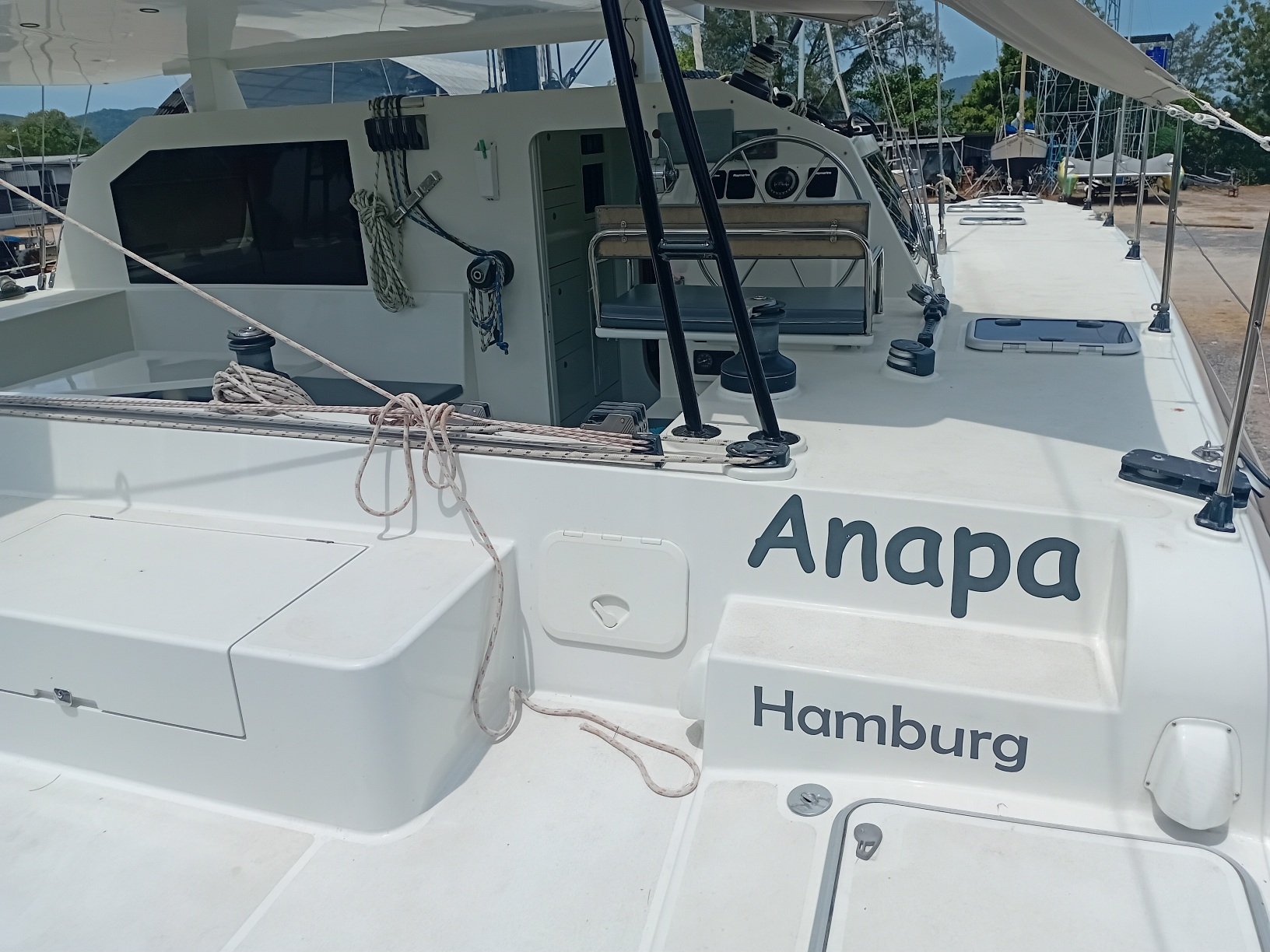

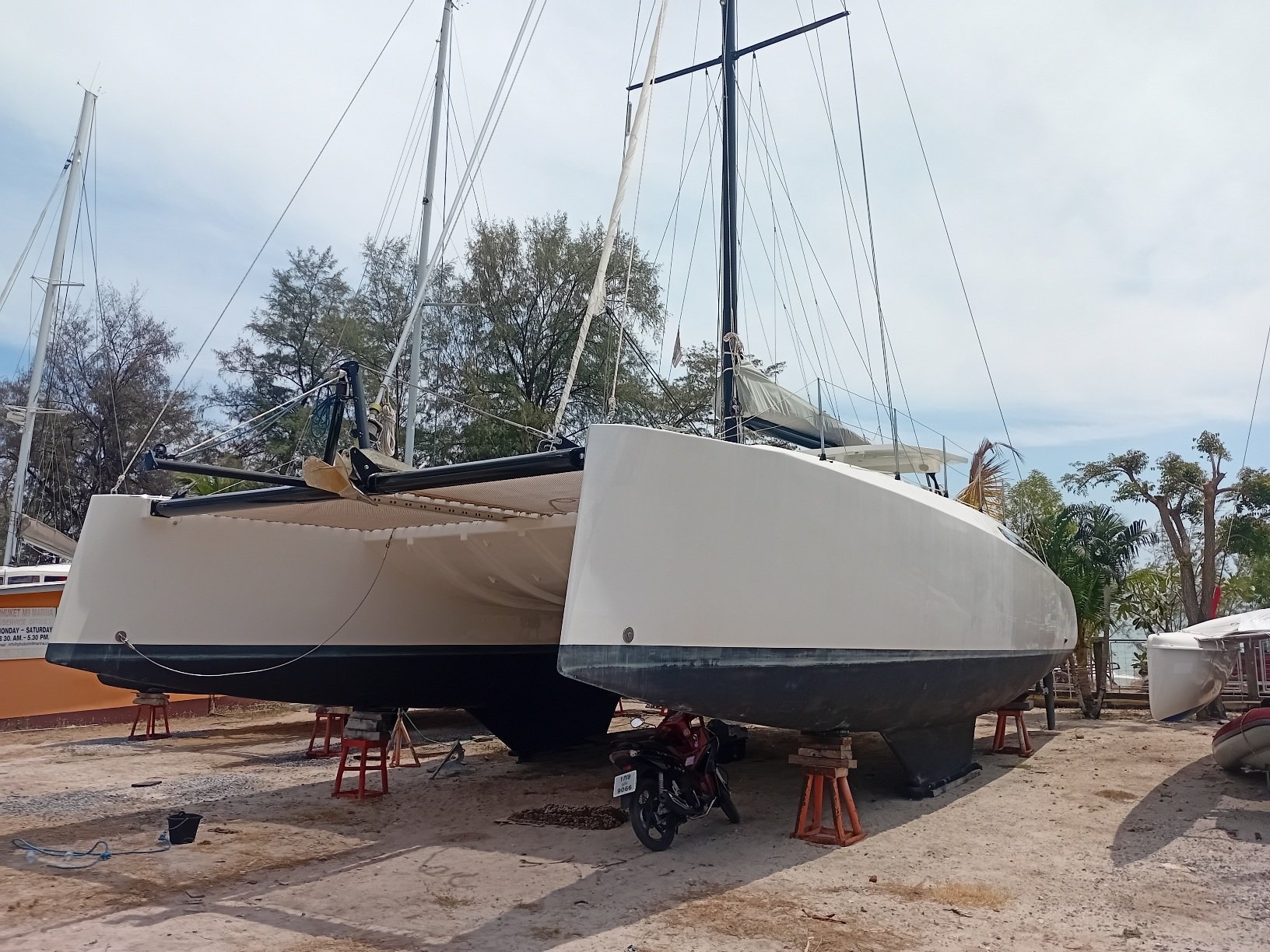

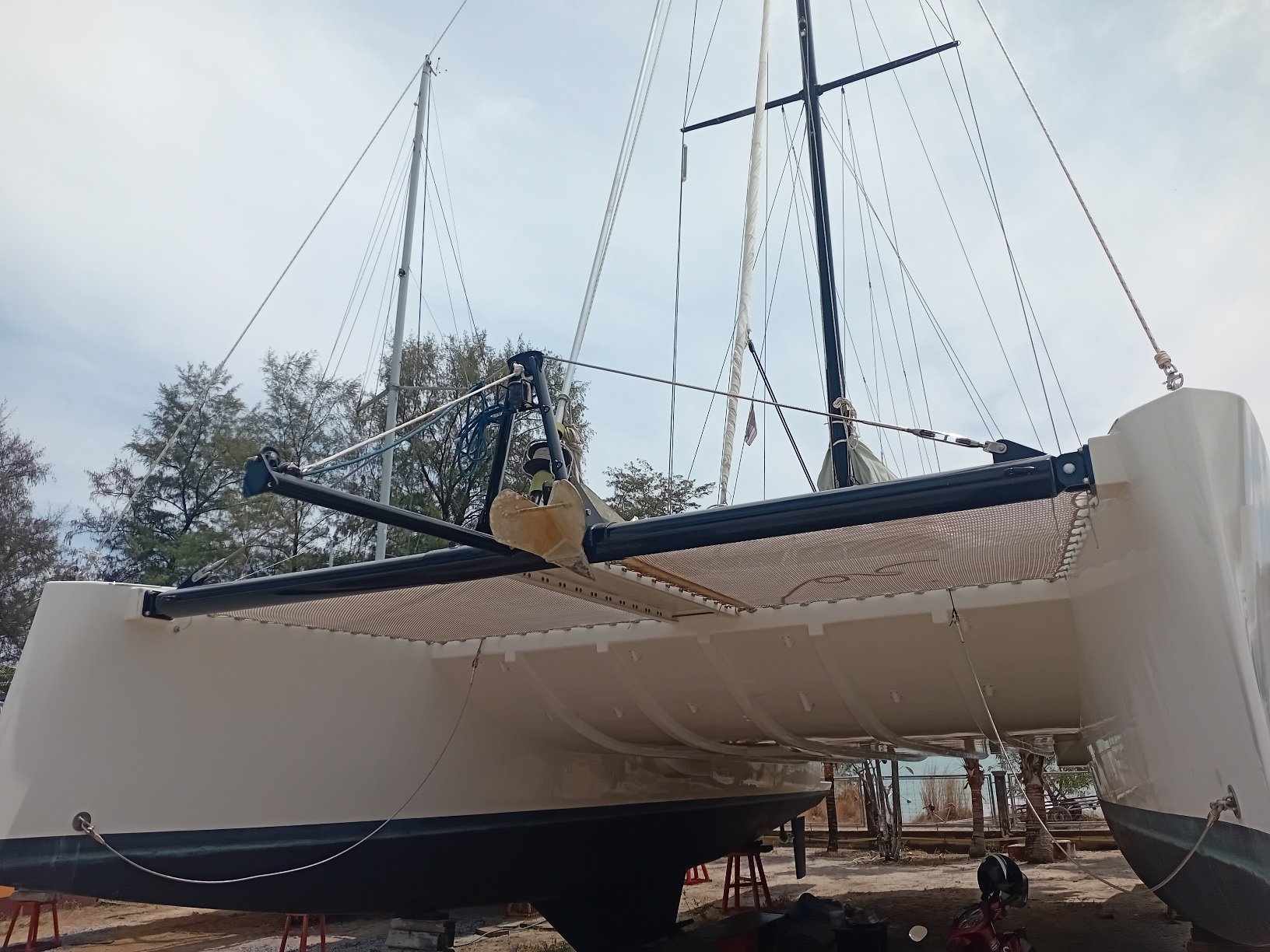

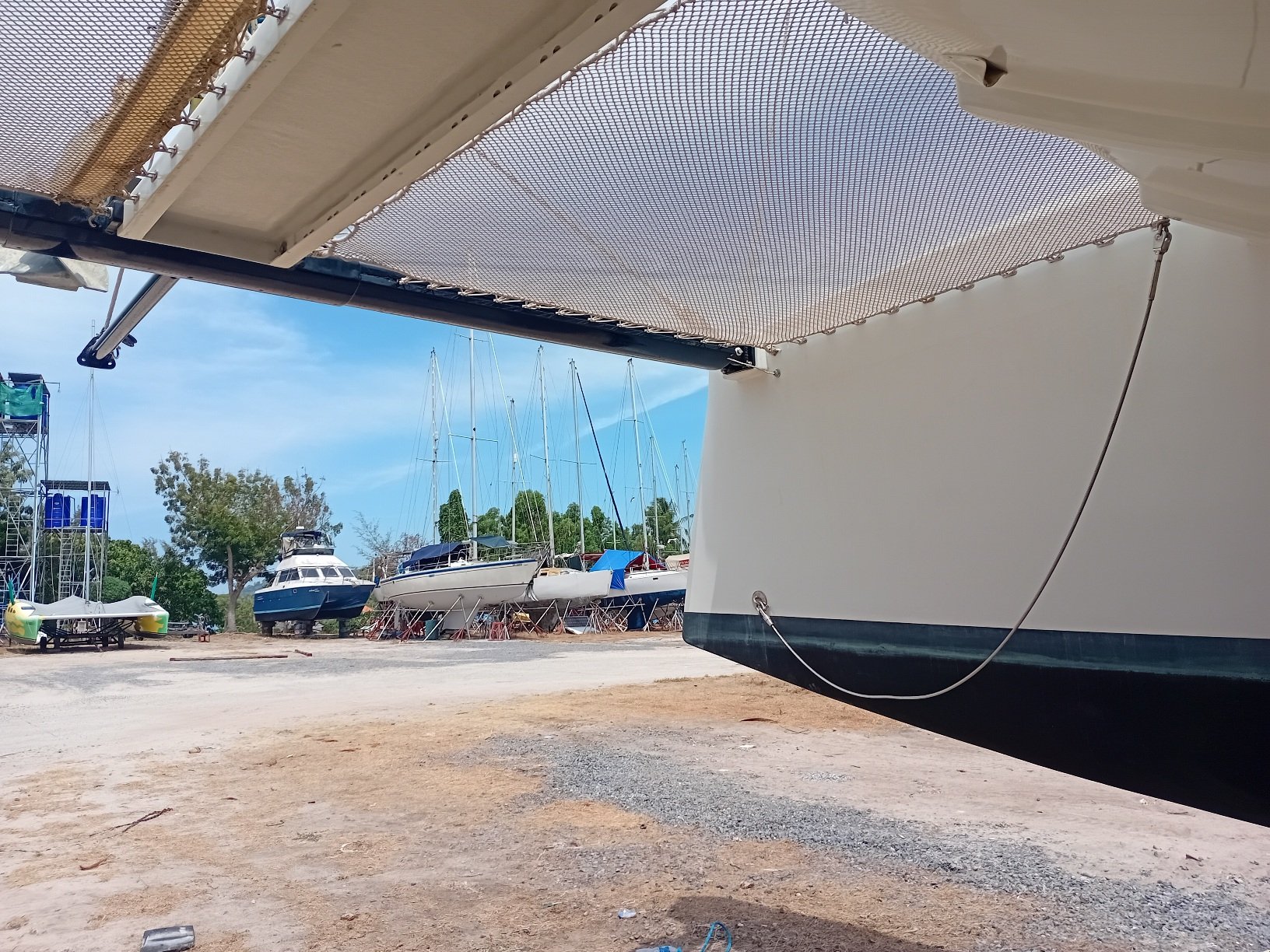

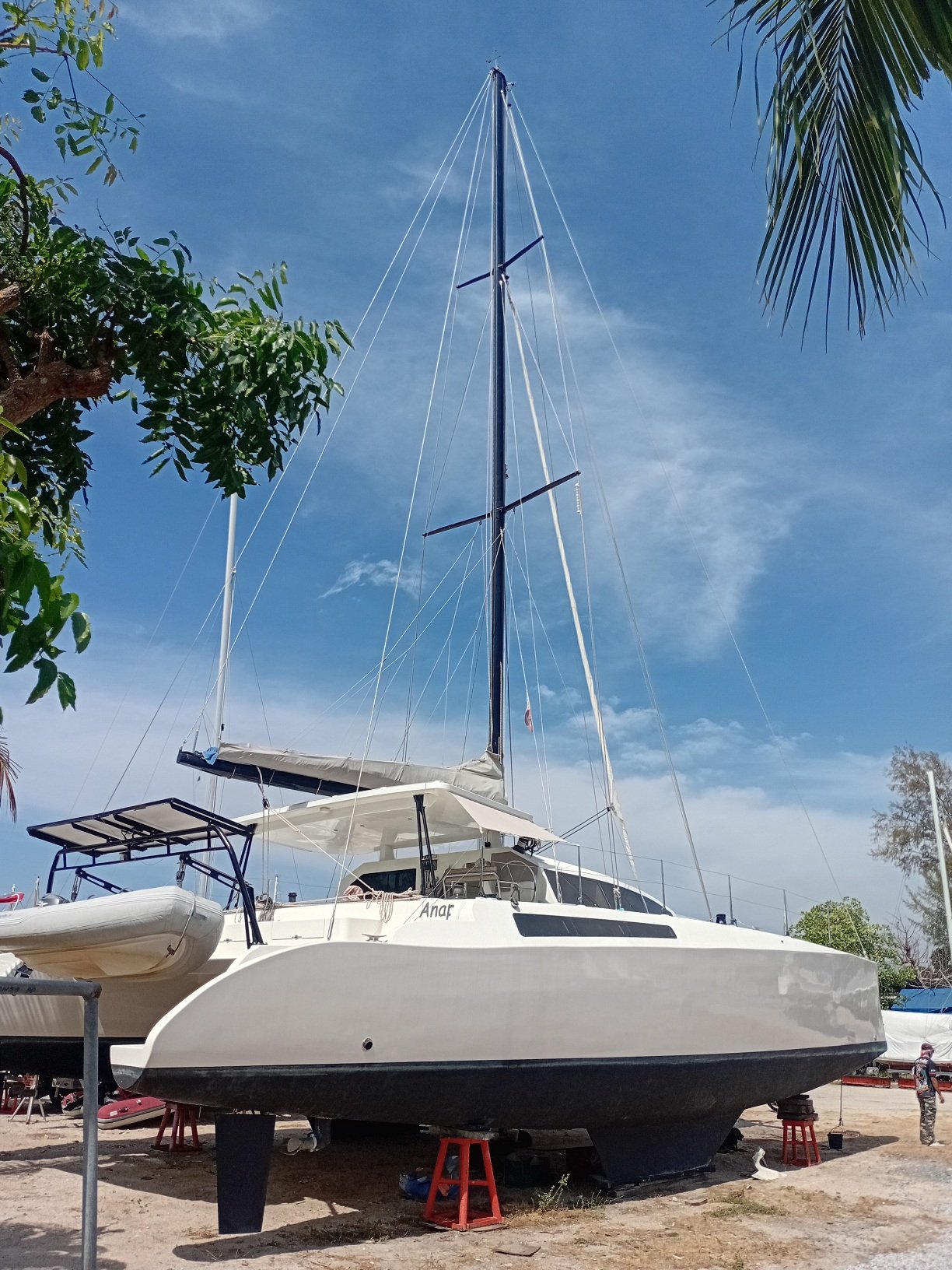

Exterior Catamaran Photos
